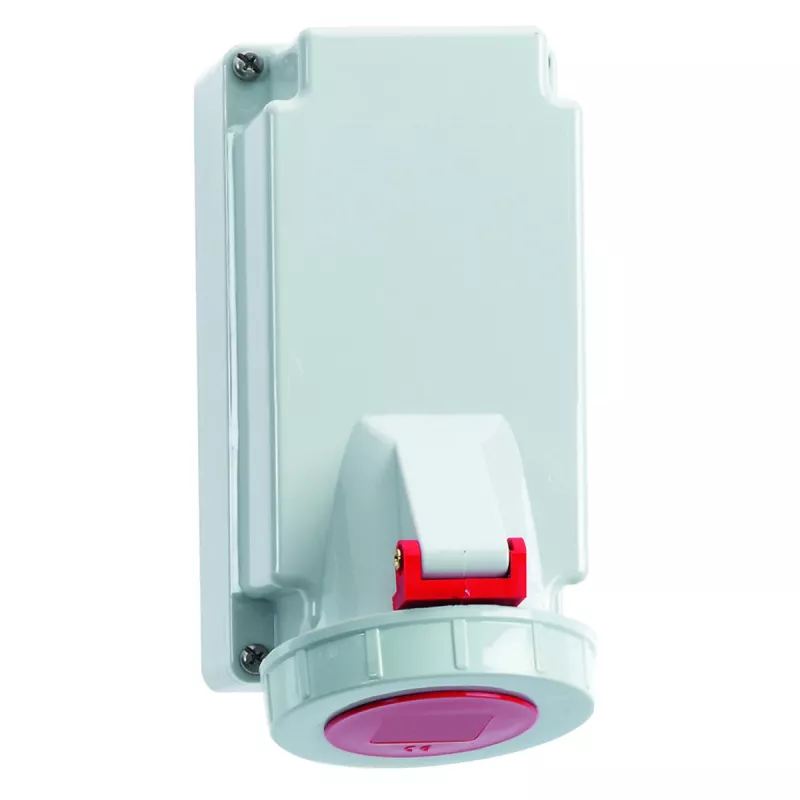

Bals 110094 tomada CEE de parede 16A 5 polos 400V 6h IP67

In industrial workshops, construction sites, and outdoor installations, reliable power distribution is critical. The Bals 110094 wall-mounted CEE socket provides a secure 400 V connection point for three-phase equipment, featuring a 5-pole configuration (3P+N+PE) with a 6h earth contact position. Its IP67 rating ensures protection against dust and temporary immersion, making it suitable for harsh environments.

Key specifications

• Rated current: 16 A
• Rated voltage: 400 V
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 6h
• Ingress protection: IP67
• Frequency: 50/60 Hz
• Housing material: Polyamide (PA6)
• Contact material: Brass, nickel-plated
• Connection technology: Screw terminals
• Mounting type: Wall-mounted
• Colour: Red
• Cable entries: 2x M25 (top and bottom)
• Flange dimensions: 90 x 90 mm
• Cover type: Hinged protective cover

Why choose it

The Bals 110094 offers robust construction with a polyamide housing and nickel-plated brass contacts for corrosion resistance and long service life. The hinged protective cover keeps the socket sealed when not in use, while the dual M25 cable entries provide flexible installation options.

Ideal use cases

• Industrial machinery connections
• Construction site power distribution
• Outdoor events and temporary installations
• Marine and dock applications

Good to know

The 6h earth contact position ensures compatibility with standard 400 V three-phase plugs. The socket is designed for wall mounting and operates within a temperature range of -25°C to +40°C.
