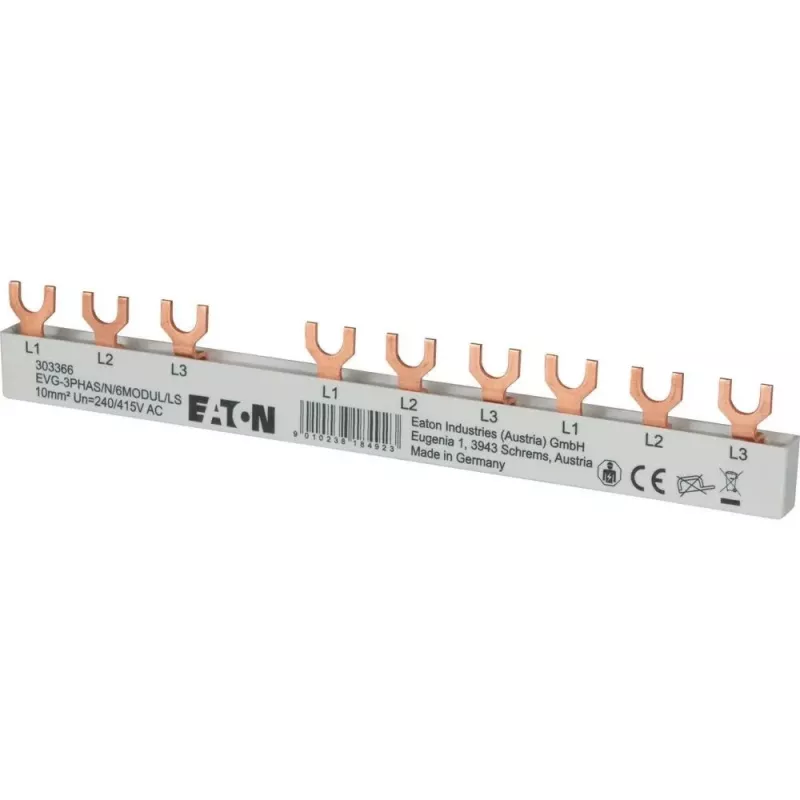

Barra de pente de garfo trifásica Eaton 10mm² 6 módulos 63A EVG3PHAS/N/6MODUL/LS 303366

Rated at 63 A and 400 V AC, this 3-phase busbar from Eaton delivers reliable power distribution for modular devices. Its fork-type terminals and 10 mm² cross-section ensure secure, low-resistance connections across 6 modules.

Overview

The Eaton EVG3PHAS/N/6MODUL/LS is a 3-phase busbar designed for efficient power distribution in electrical installations. With a cross-section of 10 mm² and fork-type connections, it provides a robust and convenient solution for linking modular devices such as miniature circuit breakers and residual current devices. The busbar is fully insulated and features a compact design spanning 6 modules (TE), making it ideal for use in distribution boards and consumer units.

What stands out

• Rated current of 63 A for dependable power handling.
• Fork-type terminals enable quick and secure installation.
• Fully insulated for enhanced safety.
• Compatible with DIN rail mounting and Eaton xPole series devices.

Technical details

• Product type: Phase busbar
• Number of phases: 3
• Number of poles: 3
• Cross-section: 10 mm²
• Terminal type: Fork-type
• Number of modules: 6 TE
• Number of connections: 6
• Rated current: 63 A
• Rated voltage: 400 V AC
• Insulation: Fully insulated
• Conductor material: Copper
• Insulation material: Plastic
• Mounting type: DIN rail compatible
• Colour: Grey/Black

Our verdict

A reliable and efficient busbar for professional electrical installations, offering high current capacity and easy installation.
