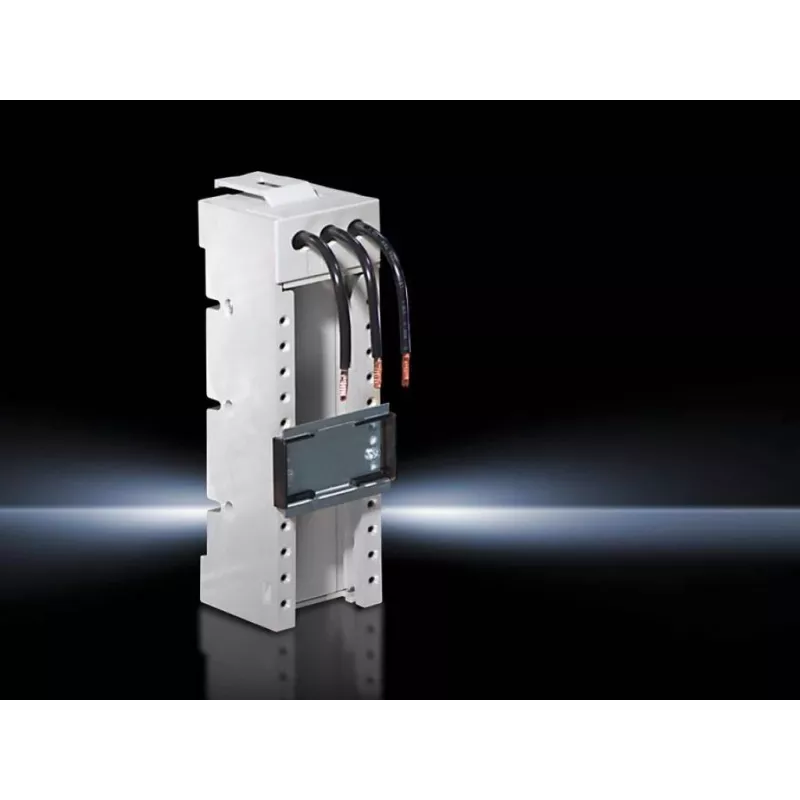

Rittal SV 9627.000 Suporte de barramento coletor, 3 polos, poliamida, branco, para RiLine60, 690V AC, 1600A, montagem snap-on, 1 unid.

In industrial power distribution panels, electricians and panel builders need a reliable way to mount and support busbars without compromising insulation or safety. The Rittal SV 9627.000 busbar support provides a secure snap-on solution for 3-pole busbar systems in Rittal RiLine60 enclosures. Made from durable polyamide in white (RAL 9010), it ensures proper spacing and insulation for busbars up to 30 mm wide and 10 mm thick. This support is rated for 690 V AC operating voltage and up to 1600 A, making it suitable for high-current distribution applications.

Key specifications

• Product type: Busbar support
• System compatibility: Rittal RiLine60
• Number of poles: 3
• Material: Polyamide
• Colour: White (RAL 9010)
• Rated operating voltage (AC): 690 V
• Rated insulation voltage (AC): 1000 V
• Rated impulse withstand voltage: 8 kV
• Max. rated current: 1600 A
• Compatible busbar width: 12 - 30 mm
• Compatible busbar thickness: 5 - 10 mm
• Mounting type: Snap-on mounting on support rail
• Application area: Industrial power distribution
• Standards compliance: IEC 61439
• Environmental conditions: Indoor use
• Quantity per pack: 1 piece
• Dimensions: 72 mm (height) x 160 mm (width)
• Weight: 45 g

Why choose it

This busbar support is engineered for the RiLine60 system, ensuring a perfect fit and reliable performance. Its polyamide construction provides excellent insulation and mechanical strength, while the snap-on mounting simplifies installation and reduces assembly time. The support meets IEC 61439 standards, giving you confidence in its safety and durability for industrial environments.

Ideal use cases

• Low-voltage switchgear and controlgear assemblies
• Power distribution panels in industrial facilities
• Motor control centers requiring busbar support
• Retrofitting or expanding existing RiLine60 systems

Good to know

The support is intended for indoor use only. It accommodates busbars with widths from 12 to 30 mm and thicknesses from 5 to 10 mm, covering a wide range of standard busbar sizes. Always verify compatibility with your specific busbar configuration before installation.
