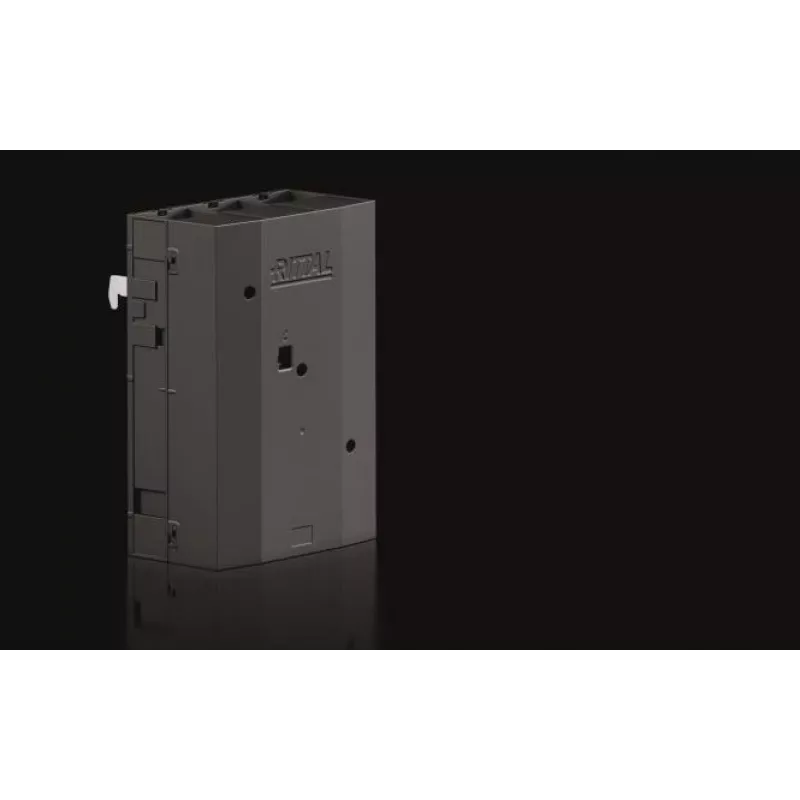

Rittal Adaptador de ligação RX 9360240 3 polos B 145mm máx. 300 mm² espaço de ligação

Connection adapter for Rittal RiLine60 busbar systems, enabling direct connection of conductors up to 300 mm² with a 3-pole configuration. The adapter features a B-type design with 145 mm terminal space and screw terminals for secure electrical connections.

Advantages

Direct mounting on 60 mm busbar systems, high current capacity up to 630 A, and robust construction for industrial power distribution.

Suitable for

• Rittal RiLine60 busbar systems
• Industrial power distribution panels
• Applications requiring high current connections up to 630 A

Key specifications

• Number of poles: 3
• Busbar spacing: 60 mm
• Max. conductor cross-section: 300 mm² (flexible and solid)
• Rated current: 630 A
• Rated voltage: 690 V AC
• Connection type: Screw terminal (M12)
• Housing material: Polyamide (PA)
• Colour: RAL 9005 (Jet Black)

Recommendations

Verify conductor size and torque requirements before installation. Use with compatible Rittal RiLine60 components.
