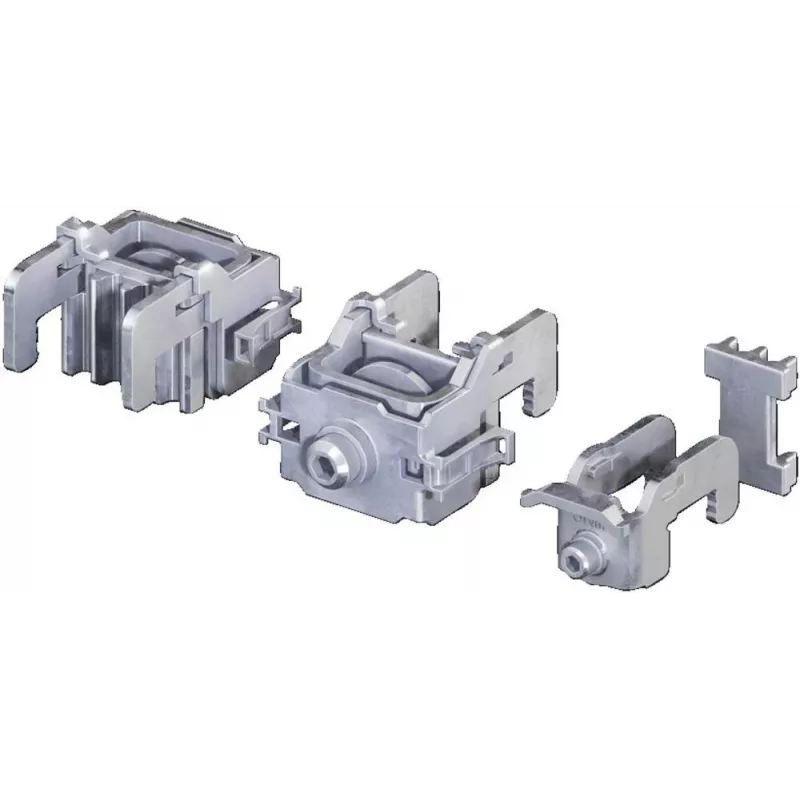

Rittal RiLine60 Terminal de ligação de barramento SV 9677.460, 690 V AC, 160 A, 1,5-70 mm², ligação por parafuso, cinzento, 3 unidades

The Rittal SV 9677.460 busbar connection terminal stands out in the RiLine60 series by combining a compact design with a high current capacity of up to 160 A, making it suitable for demanding power distribution tasks. Its screw connection supports both rigid and flexible conductors, offering flexibility in installation.

Highlights

• Rated operating voltage: 690 V AC
• Maximum current: 160 A
• Conductor cross-section: 1.5–70 mm² rigid, 1.5–50 mm² flexible
• Direct mounting on RiLine60 busbar system
• Housing material: Polyamide (PA 6.6), contact material: Copper
• Pack of 3 pieces

In daily use

This terminal is designed for direct attachment to the RiLine60 busbar, providing a reliable connection point for power distribution. The screw connection ensures a secure hold for conductors within the specified cross-section range. Its grey polyamide housing offers durability and electrical insulation.

Full specifications

• Product type: Busbar connection terminal
• Series: RiLine60
• Rated operating voltage: 690 V AC
• Rated current (max.): 160 A
• Conductor cross-section (flexible): 1.5 - 50 mm²
• Conductor cross-section (rigid): 1.5 - 70 mm²
• Connection type: Screw connection
• Number of connections: 1
• Mounting type: Direct on RiLine60 busbar system
• Housing material: Polyamide (PA 6.6)
• Contact material: Copper
• Colour: Grey
• Pack quantity: 3 pieces
• Degree of protection: IP20 (when installed)
• Rated impulse withstand voltage: 8 kV
• Pollution degree: 3
• Short-circuit current (Icw): 10 kA (1s)
• Standards: IEC 61439, UL, CSA

Final note

The Rittal SV 9677.460 is a reliable choice for professionals needing a robust busbar connection terminal within the RiLine60 system.
