Rittal RiLineX Board 3p RX 9360024 60mm com barras condutoras 30x5mm B

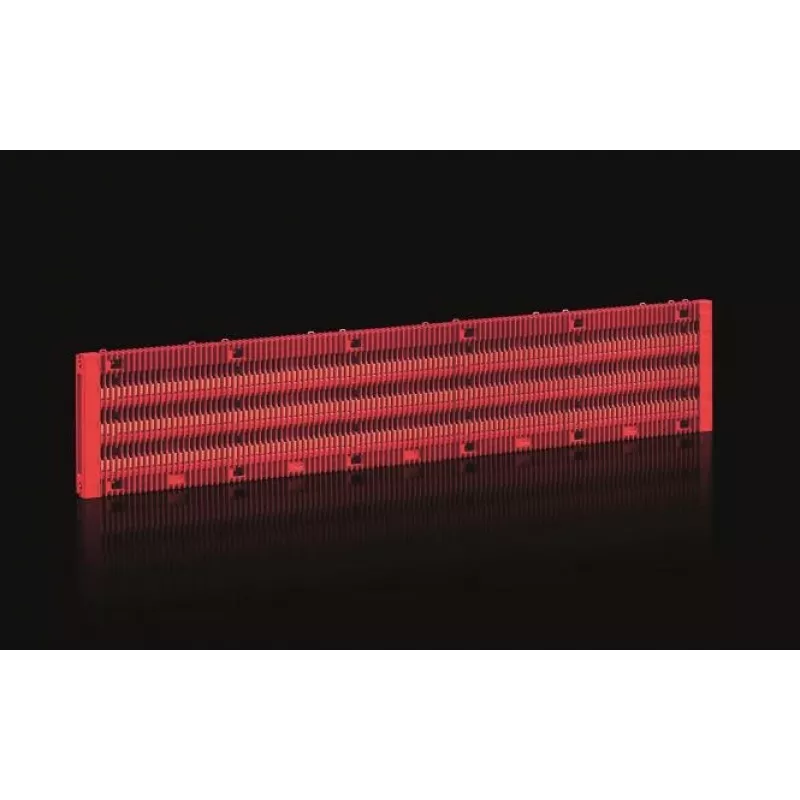

In low-voltage switchgear and controlgear assemblies, achieving reliable power distribution without complex wiring or excessive space consumption is a constant challenge. The Rittal RiLineX Board 3p RX 9360024 addresses this by integrating three 30 x 5 mm copper busbars into a compact 60 mm wide board, enabling direct mounting into RiLineX busbar systems. This board simplifies the construction of power distribution units, reducing installation time and potential wiring errors while maintaining high current-carrying capacity up to 630 A.

Who is it for

This busbar board is intended for panel builders, electrical engineers, and system integrators who design and assemble low-voltage switchgear according to IEC 61439. It is suitable for applications requiring a three-pole power distribution backbone within RiLineX enclosures, such as industrial control panels, machine power supplies, and building infrastructure distribution boards.

Main features

• Integrated 3-pole busbar system with copper bars 30 x 5 mm
• Compact 60 mm system width for space-saving installation
• Direct mounting into RiLineX busbar systems without additional adapters
• Rated operating voltage up to 690 V AC
• Current carrying capacity up to 630 A depending on configuration
• Base and insulators made of polyamide (PA) in light grey RAL 7035
• Protection category IP00, suitable for installation inside enclosures
• Compliant with IEC 61439 for low-voltage switchgear assemblies

Specifications

• Product type: Busbar system board
• System series: RiLineX
• Number of poles: 3
• Busbar dimensions: 30 x 5 mm
• System width: 60 mm
• Rated operating voltage (AC): 690 V
• Busbar material: Copper
• Mounting type: Direct mounting in RiLineX busbar systems
• Protection category: IP00
• Standards compliance: IEC 61439
• Housing/base material: Polyamide (PA)
• Colour (insulators/base): RAL 7035 (Light Grey)
• Current carrying capacity (busbar): Up to 630 A (depending on configuration)

Tips

When integrating this board, ensure that the surrounding enclosure provides appropriate protection against direct contact, as the board itself is IP00. Verify the busbar torque settings according to the RiLineX assembly instructions to maintain reliable electrical connections. For higher current applications, consider parallel boards or verify derating factors based on ambient temperature and enclosure ventilation.
