Barra de pinos DeLOCK 66703

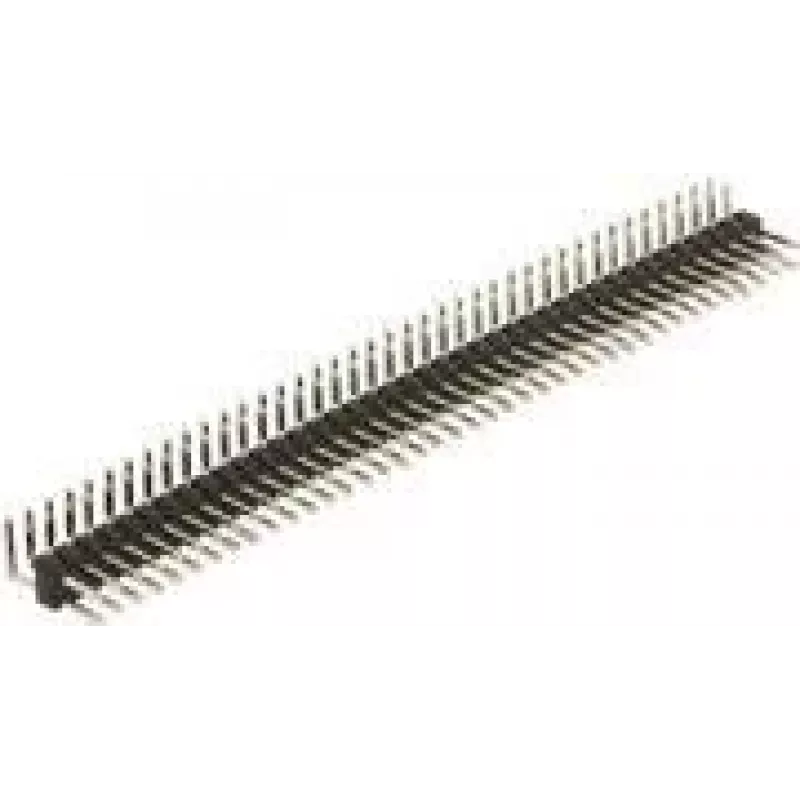

The DeLOCK 66703 pin header is a board-mount connector designed for creating reliable electrical connections between printed circuit boards. It combines metal contacts and a plastic insulator with a black and metallic finish and fits compactly on PCBs for various electronic and internal cable applications.

Advantages

The pin header offers durable metal contacts and a plastic housing for mechanical stability and consistent connectivity. Its compact dimensions — 101.6 mm length, 12.9 mm depth and 5 mm height — make it suitable for tight assemblies. The black and metallic colour scheme provides a neutral appearance that integrates with typical PCB layouts.

Suitable for

• Creating board-to-board connections on printed circuit boards
• Internal cable and connector assemblies in computers and electronic devices
• Prototyping and custom PCB projects requiring pin-header interfaces

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66703
• EAN: 4043619667031
• Length: 101.6 mm
• Depth: 12.9 mm
• Height: 5 mm
• Material: Metal contacts with plastic insulator
• Product colour: Black, Metallic

How to use

Place the pin header into the appropriate plated holes on the printed circuit board so that the plastic insulator sits flush with the board surface. Solder the metal pins to the PCB pads following standard soldering practices to ensure secure electrical and mechanical connection. Verify the pin orientation and spacing before soldering to match the mating connector or cable assembly.

Recommendations

Use appropriate soldering temperature and flux for the PCB and pin header materials. Ensure correct alignment and avoid excessive mechanical stress on the solder joints during assembly and handling.
