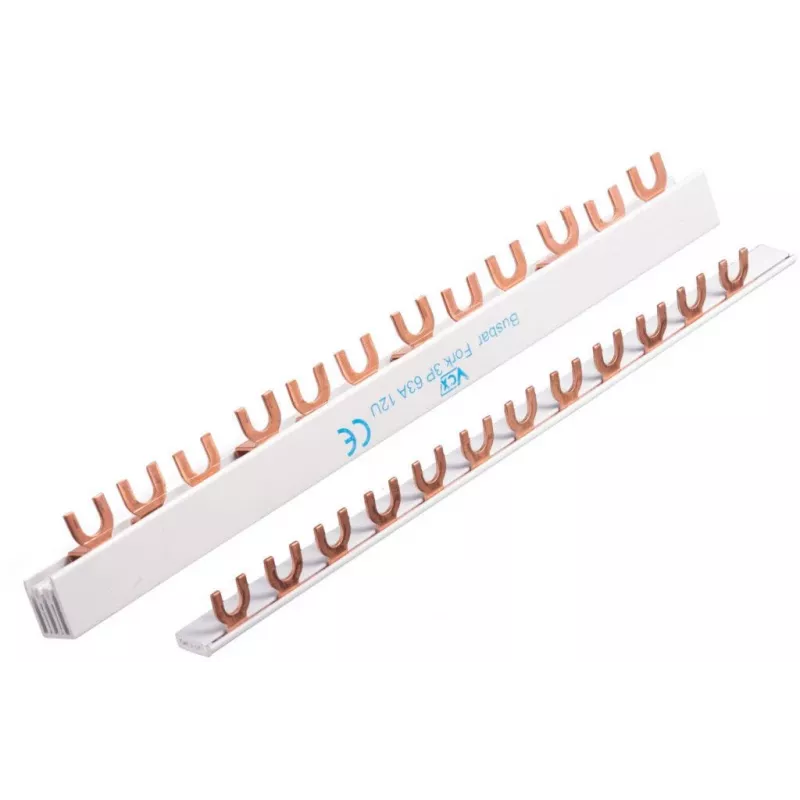

Barramento de combinação VCX SZK63A 1F 12X1M 1 polo 63 A 12 módulos

Wiring multiple modular devices in a distribution board with individual wires is time-consuming and error-prone. The VCX SZK63A 1F 12X1M comb busbar replaces messy wiring with a single compact conductor, linking up to 12 single-pole devices in one row for a clean, reliable, and fast installation.

Who is it for

Electricians, panel builders, and maintenance technicians who install or upgrade residential and commercial distribution boards. Ideal for anyone seeking a professional, tidy wiring solution that reduces labour time and minimises connection faults.

Main features

• 1-pole comb busbar for 12 modules (12 ways) with 18 mm pitch, suitable for standard DIN rail devices.
• Rated current 63 A, perfect for main and sub-distribution circuits.
• Copper conductor with PVC insulation, providing excellent conductivity and safety.
• Pin terminals for direct insertion into device terminals – no lugs or additional connectors needed.
• Rated insulation voltage 500 V AC and impulse withstand 4 kV, ensuring compliance with EN 60947-7-1.
• Cuttable to shorter lengths with appropriate tools, offering flexibility for smaller installations.
• Blue colour for easy phase identification in multi-row setups.

Specifications

• Brand: VCX
• Model: SZK63A 1F 12X1M
• MPN: SZK63A 1F 12X1M
• EAN: 5901122680260
• Type: Comb busbar
• Number of poles: 1
• Rated current: 63 A
• Number of modules: 12
• Conductor cross-section: 10 mm²
• Rated insulation voltage (Ui): 500 V AC
• Rated impulse withstand voltage (Uimp): 4 kV
• Conductor material: Copper
• Insulation material: PVC
• Connection type: Pin terminal
• Module pitch: 18 mm
• Total length: 210 mm
• Standard compliance: EN 60947-7-1
• Application: Electrical power distribution in consumer units/panels
• Mounting: For DIN Rail mounted modular devices
• Colour: Blue
• Operating temperature: -25°C to +70°C
• Cuttable: Yes (with appropriate tools)

Tips

For smaller installations, cut the busbar to the required number of modules using a suitable cutting tool. Always ensure the busbar is fully inserted into device terminals and that the insulation is intact to maintain safety and performance.
