Barramento elétrico Rittal SV 3525.000, cobre, comprimento 695 mm

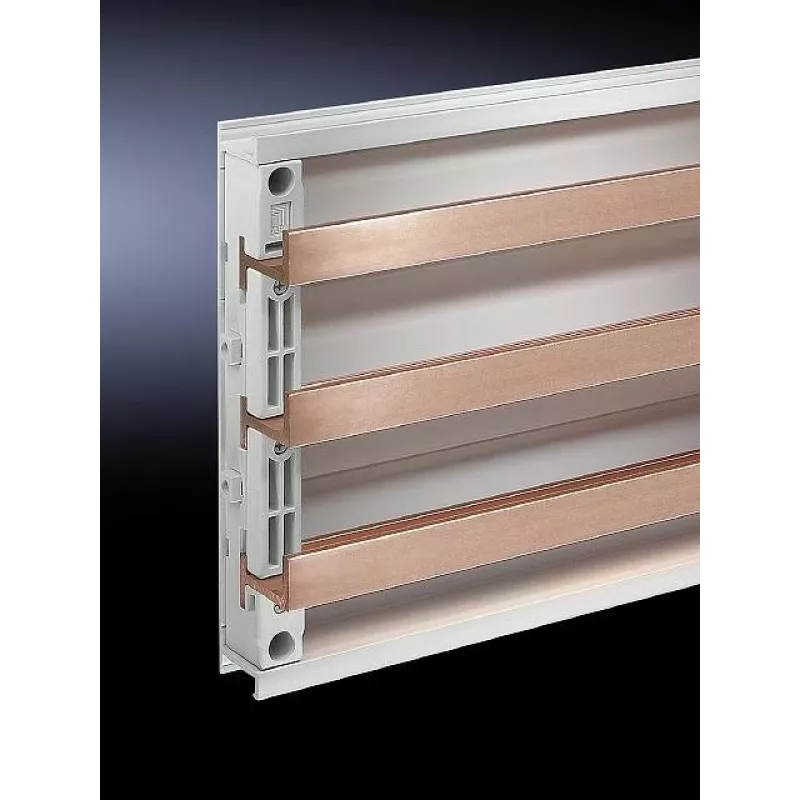

Rittal SV 3525.000 is a rigid copper bus bar with a nominal length of 695 mm designed for use in electrical distribution and panel installations. The bar provides a solid conductive path for power distribution inside switchgear, control cabinets and enclosures where robust, low-resistance connections are required. Manufactured to match modular enclosure mounting systems, the bus bar is intended for fixed installations in industrial and commercial electrical assemblies.

Advantages

The copper construction ensures high electrical conductivity and stable current carrying capacity while reducing energy losses and heat buildup. The rigid design allows precise alignment and reliable mechanical support within switchgear and cabinet assemblies. Compatibility with modular mounting systems simplifies integration, and the availability in a range of lengths allows selection to fit specific cabinet depths and installation layouts.

Suitable for

Key specifications

How to use

Measure the required bus bar length against the cabinet mounting points and select the appropriate length to avoid excess protrusion. Secure the bus bar using the enclosure’s designated mounting hardware and ensure correct alignment with incoming and outgoing conductors. Make electrical connections using properly sized lugs or connectors and tighten to the recommended torque. Ensure all work is performed with power off and in accordance with applicable electrical codes and safety procedures.

Recommendations

Verify mechanical clearances and required current rating for your application before installation. Use appropriate protective equipment when handling copper bus bars and follow local wiring regulations, torque specifications and insulation requirements to maintain safe and reliable operation.
