Rittal RiLineX placa 3p RX 9360068 860 mm com barras coletoras 30×10 mm

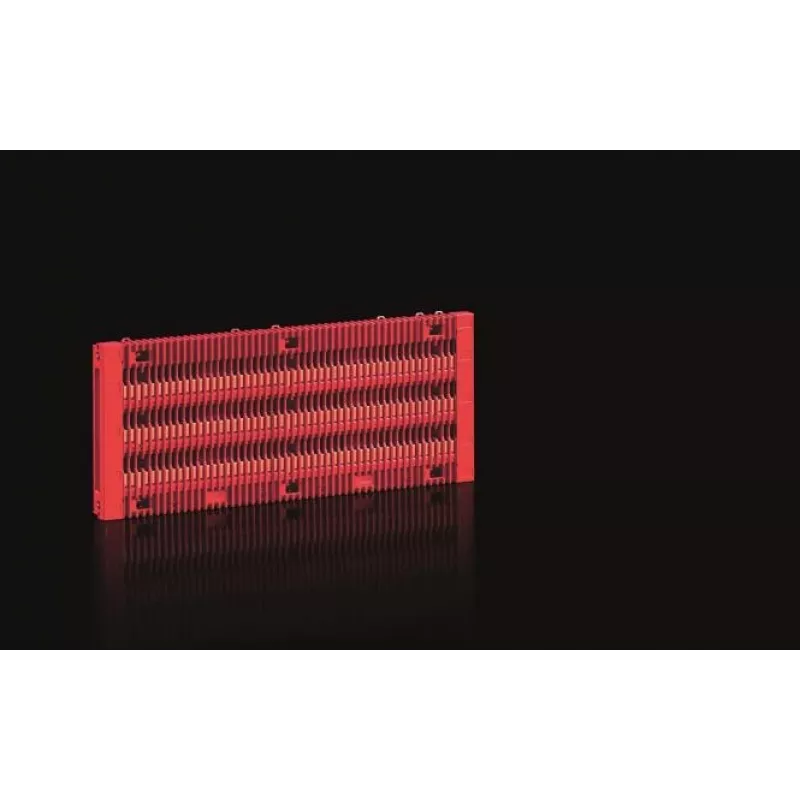

RiLineX Board 3p RX 9360068 is an 860 mm distribution board from Rittal designed for three-pole electrical distribution inside enclosures. The assembly includes copper busbars with a cross-section of 30×10 mm, intended for reliable current carrying and neat busbar mounting in switchgear and control cabinets. This solution simplifies connection of multiple circuits and helps maintain a compact, serviceable internal layout within industrial and commercial electrical installations.

Advantages

The RiLineX Board features robust copper busbars sized 30×10 mm that offer stable conductivity and low voltage drop under load. Its 860 mm length provides compatibility with standard enclosure layouts while allowing space for multiple circuit connections. The product is engineered to integrate with common switchgear components and to facilitate orderly wiring, reducing installation time and improving access for maintenance. Materials and geometry are selected to support consistent current distribution and mechanical stability.

Suitable for

Key specifications

How to use

Install the RiLineX Board on the internal mounting plate or profile of the cabinet according to the enclosure manufacturer’s layout and electrical schematic. Secure the board using appropriate fasteners and ensure proper alignment for busbar access. Attach circuit breakers, fuses, or terminal blocks onto the busbars following the device manufacturer’s instructions and observe correct phase sequencing and clearances. Make sure all connections are tightened to the specified torque values and verify insulation and protective measures before energizing the system.

Recommendations

Verify compatibility of mounted devices with a 30×10 mm copper busbar cross-section and follow national electrical codes for clearances, earthing, and protective devices. Use recommended torque settings for busbar connections and perform insulation and continuity checks after installation. For high-current or specialized applications consult Rittal documentation or a certified electrical professional.
