Barrow Adaptador rotativo 45° G1/4 macho para G1/4 fêmea Branco TWT45-B01 w

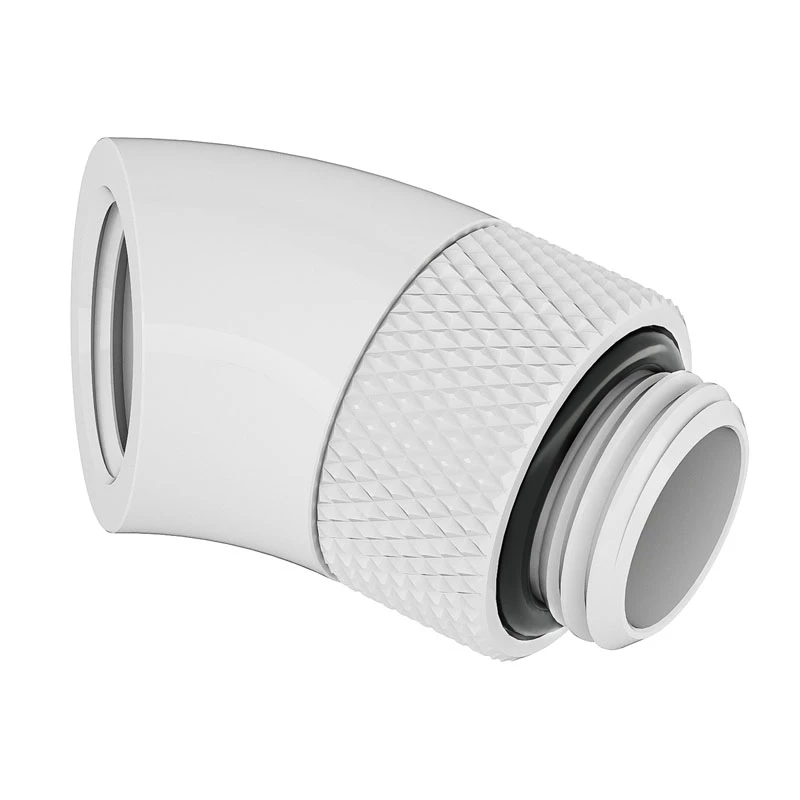

The Barrow 45° Rotatable Adapter G1/4 AG to G1/4 IG in white is a compact plumbing fitting designed for liquid-cooling loops and tight installations. It converts a G1/4 male thread to a G1/4 female thread while providing a 45° angle between ports. The adapter’s rotatable joint allows alignment of hose or hardline runs without twisting tubes or fittings, simplifying assembly in confined spaces. Its white finish integrates with light-themed builds and visible cooling circuits.

Advantages

The rotatable joint reduces stress on connections by permitting precise angular alignment during installation. Its 45° orientation enables hose routing where straight fittings would interfere with nearby components. The compact form factor reduces clearance requirements and supports neater loop layouts. The white surface provides a uniform appearance and is compatible with other light-colored components.

Suitable for

• Custom PC water-cooling loops where space is limited
• Routing soft tubing or rigid hardline in tight corners
• Plumbing connections that require a 45° directional change
• Aesthetic builds that use white fittings and visible coolant lines

Key specifications

• Thread connections: G1/4 male (input) to G1/4 female (output)
• Angle: 45° between ports
• Rotatable joint: allows rotation to adjust alignment
• Finish: white exterior coating
• Form factor: compact, low-profile design for tight spaces

How to use

Screw the G1/4 male end into the corresponding female port on the component or block. Attach the G1/4 female end to the male thread of the tubing fitting or hardline connector. Rotate the adapter joint as needed to align tubing or pipes before fully tightening. Ensure thread sealing and torque are appropriate for the fittings and follow your cooling loop’s leak-testing procedure after assembly.

Recommendations

Use compatible G1/4 fittings and seals; avoid overtightening metal threads to prevent damage. Perform a pressure or leak test after installation and recheck connections after initial operation. For aesthetic consistency, combine with other white or matching fittings.
