Batente de encosto para portão deslizante PSG 80x80mm Cinzento antracite RAL 7016

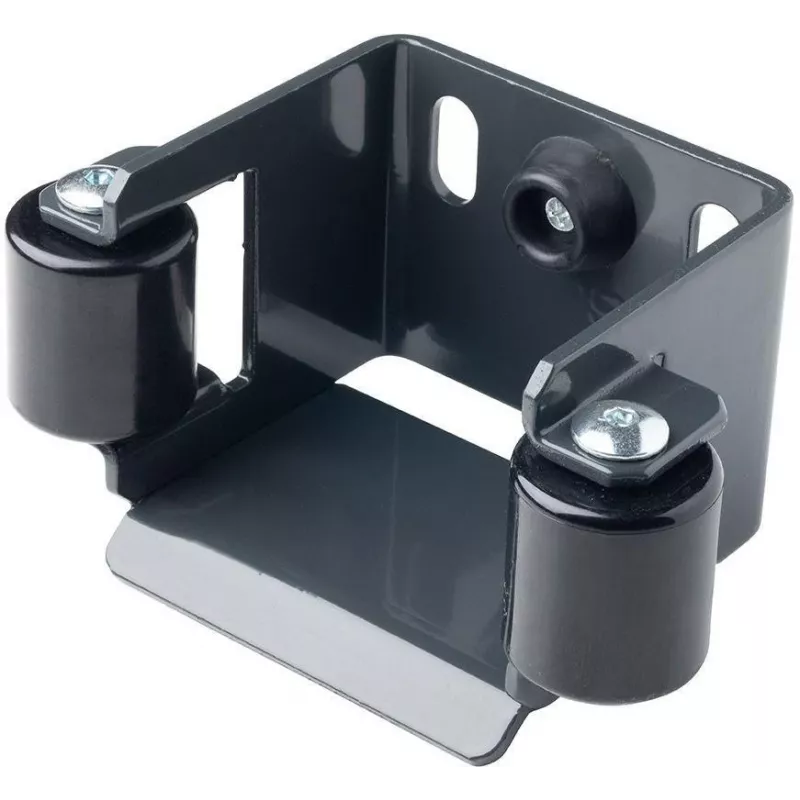

The PSG Sliding Gate Approach Bracket (model 60.019.7016) is a robust steel bracket designed to guide and support sliding gates in their fully closed position. Engineered for 80x80mm square gate profiles, this bracket ensures smooth and reliable operation for residential and commercial sliding gate systems.

Advantages

High-strength steel construction with powder-coated finish provides excellent corrosion and weather resistance. The bracket includes a plastic/rubber insert for noise-free operation and reduced wear. Easy to install via welding or bolting onto a fixed post.

Suitable for

• Sliding gate systems requiring a secure end stop and support
• Gate profiles with 80x80mm square tubing
• Outdoor installations exposed to weather elements

Key specifications

• Product Type: Sliding Gate Receiver / Approach Bracket
• Material: Steel
• Finish: Powder-coated
• Colour: Anthracite Grey (RAL 7016)

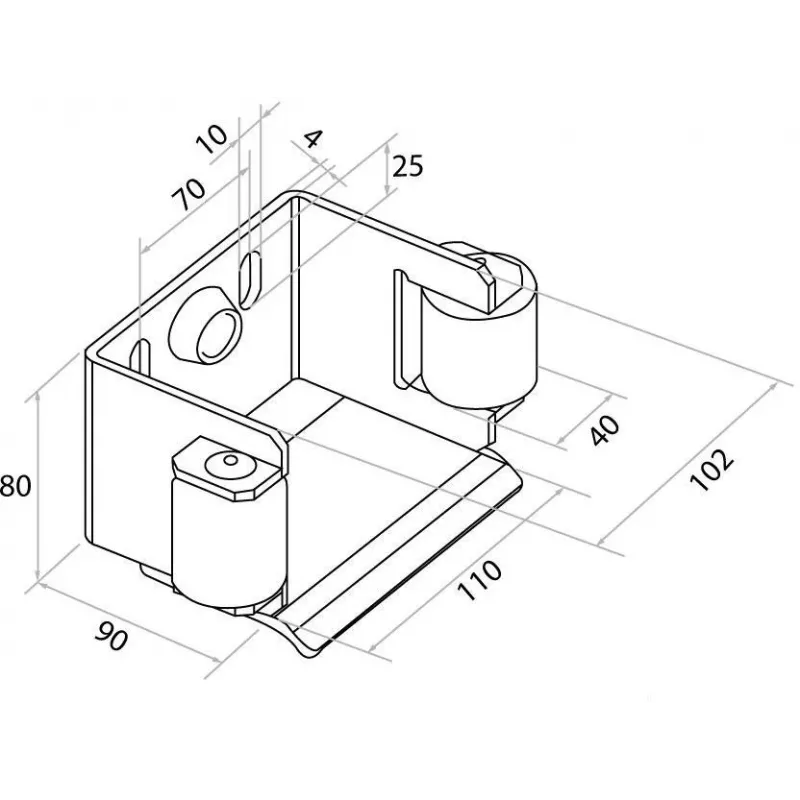

• Gate Profile Compatibility: 80x80 mm
• Mounting: Fixed post mount (weld-on/bolt-on)
• Corrosion Resistant: Yes
• Weather Resistant: Yes

Recommendations

For optimal performance, ensure the bracket is securely mounted to a sturdy post and aligned with the gate track. Regular inspection of the insert is recommended to maintain smooth operation.
