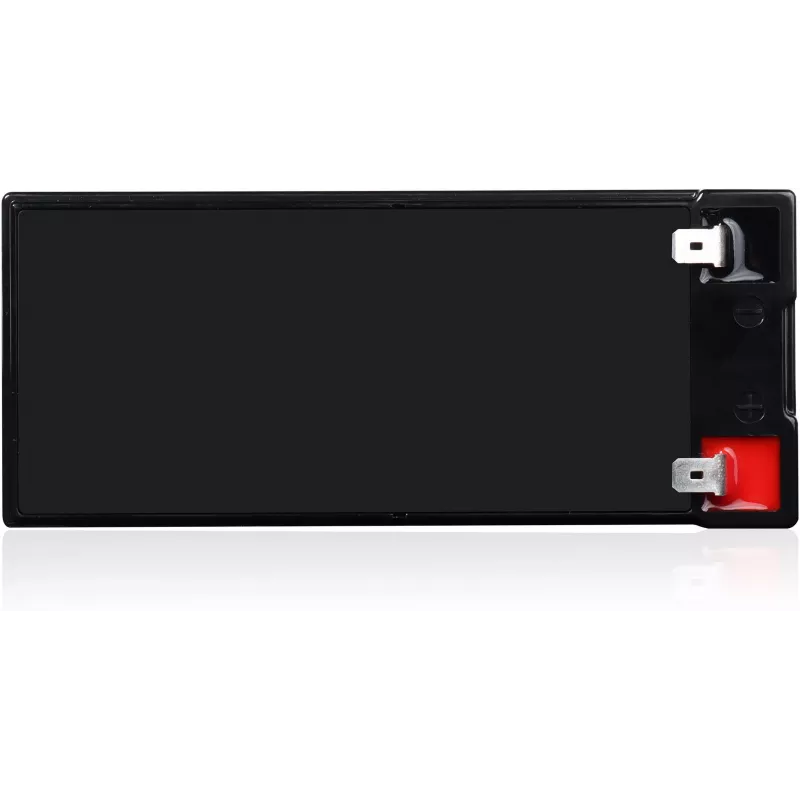

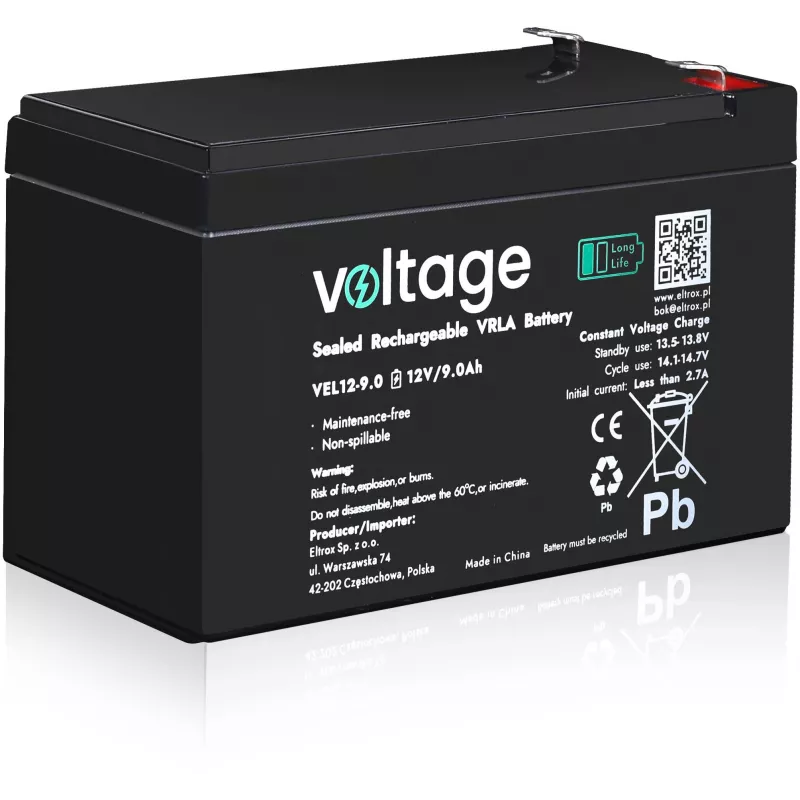

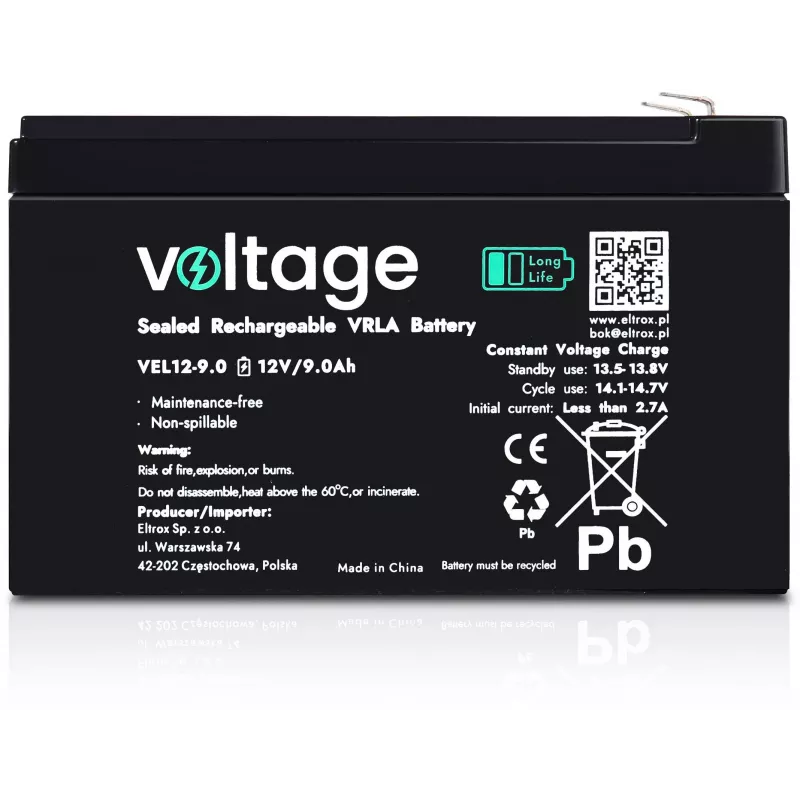

Bateria AGM Long Life Voltage 12V 9Ah VEL12-9.0 (15 anos de vida útil de projeto)

The Voltage VEL12-9.0 is a high-quality AGM (Absorbent Glass Mat) VRLA battery designed for long-life standby applications. With a nominal voltage of 12V and a capacity of 9Ah (C20), this battery offers reliable power for UPS systems, alarm systems, emergency lighting, and telecommunications. Its 15-year design life (Eurobat Long Life) ensures exceptional durability and minimal maintenance.

Advantages

This battery features AGM technology for leak-proof operation, low self-discharge (less than 3% per month at 25°C), and excellent deep discharge recovery. The F2 Faston 6.3mm terminals provide easy and secure connections. With an internal resistance of approximately 19 mΩ, it delivers high discharge current up to 135A for 5 seconds.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Alarm and security systems
• Emergency lighting
• Telecommunications equipment
• General standby power applications

Key specifications

• Battery Technology: AGM VRLA
• Nominal Voltage: 12V
• Nominal Capacity: 9 Ah (C20)
• Design Life: 15 years (Eurobat Long Life)
• Terminal Type: F2 (Faston 6.3mm)
• Internal Resistance: Approx. 19 mΩ (at 25°C)
• Max Discharge Current: 135A (5 seconds)
• Max Charge Current: 2.7A
• Recommended Cyclic Charge Voltage: 14.4V - 15.0V
• Recommended Standby Charge Voltage: 13.5V - 13.8V
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): -10°C to 50°C
• Self-Discharge Rate: Less than 3% per month (at 25°C)
• Container Material: ABS
• Total Height (with terminals): 100 mm

Recommendations

For optimal performance and longevity, use this battery in a clean, dry environment within the specified temperature range. Ensure proper charging voltage settings according to the application (standby or cyclic). Always recycle old batteries responsibly.
