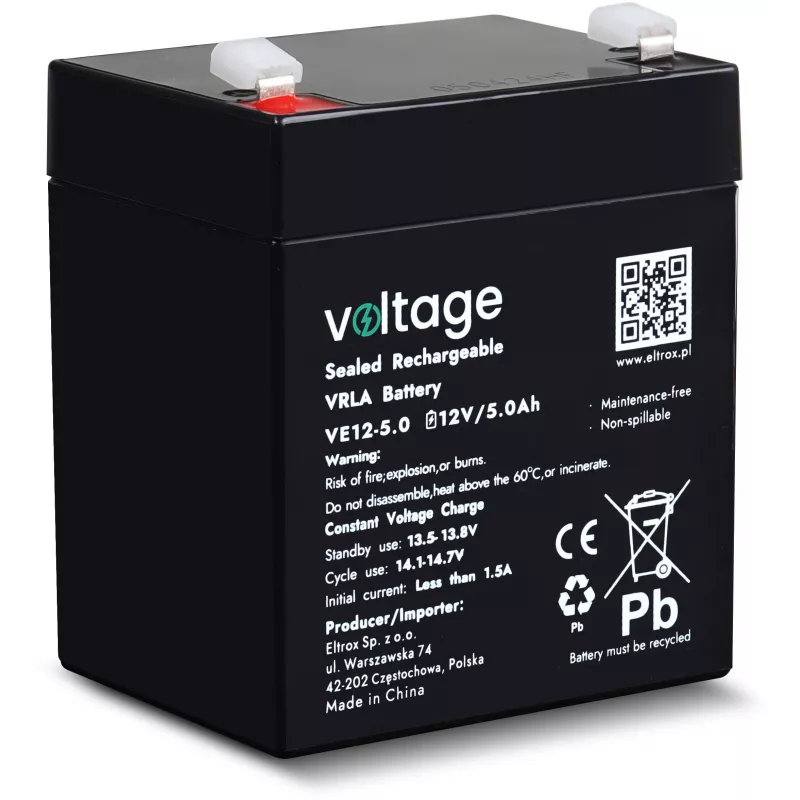

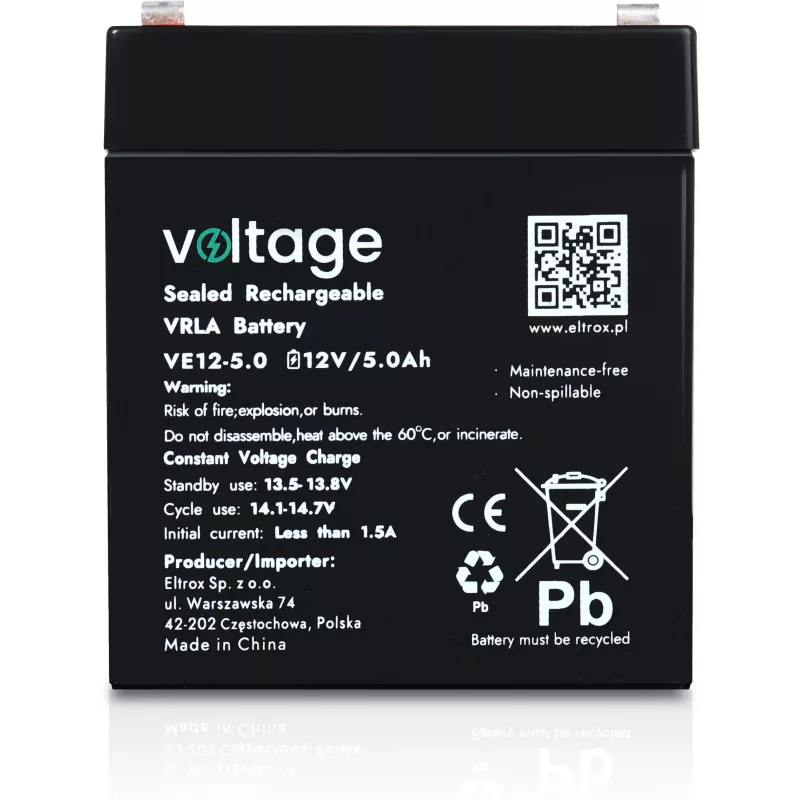

Bateria AGM Voltage 12V 5Ah VE12-5.0 (6-9 anos de vida útil)

The Voltage VE12-5.0 is a high-quality AGM (Absorbent Glass Mat) sealed lead-acid battery designed for reliable backup power and cyclic applications. With a nominal voltage of 12V and a capacity of 5Ah (C20 rate), this maintenance-free battery offers a design life of 6-9 years, making it an ideal power solution for UPS systems, alarm systems, emergency lighting, medical devices, and more.

Advantages

This AGM battery features valve-regulated, spill-proof construction, allowing safe operation in any position except inverted. It delivers up to 75A maximum discharge current for 5 seconds and has a low self-discharge rate of less than 3% per month at 25°C. The battery is maintenance-free, eliminating the need for water refilling, and operates reliably across a wide temperature range.

Suitable for

• UPS Systems
• Alarm Systems
• Emergency Lighting
• Medical Devices
• Toys

Key specifications

• Battery Technology: AGM (Absorbent Glass Mat)
• Battery Type: Sealed Lead-Acid (SLA)
• Nominal Voltage: 12V
• Nominal Capacity: 5 Ah (C20 rate)
• Design Life: 6-9 years (Eurobat Classification)

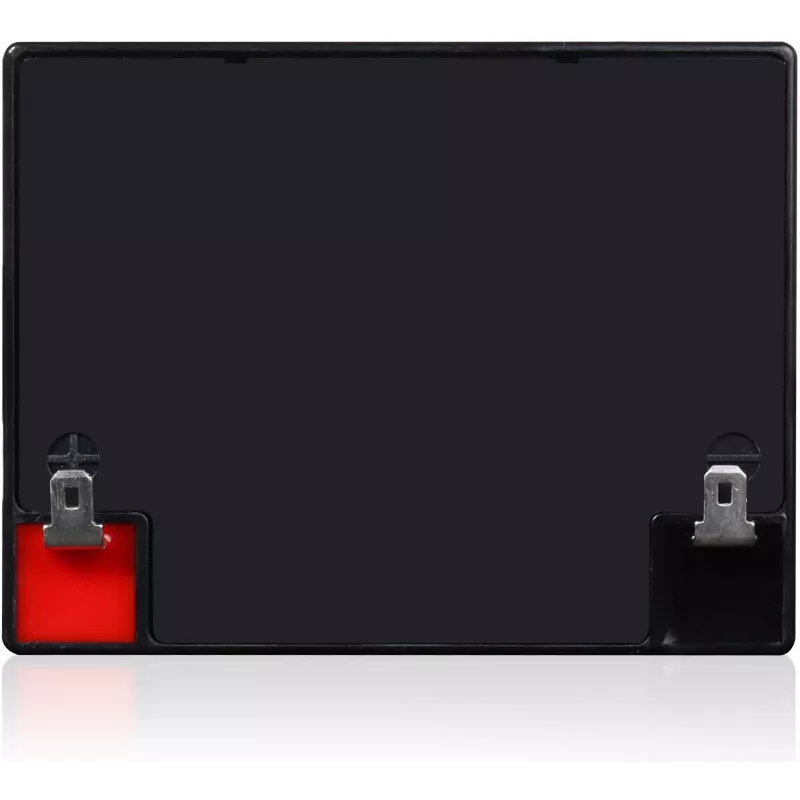

• Terminal Type: F1 (Faston Tab 187)
• Max. Discharge Current: 75A (5 seconds)
• Max. Charge Current: 1.5A
• Internal Resistance: Approx. 30 mΩ
• Operating Temperature Range (Discharge): -15°C to 50°C
• Operating Temperature Range (Charge): -15°C to 40°C
• Self-Discharge Rate: Less than 3% per month at 25°C
• Maintenance: Maintenance-Free
• Orientation: Operates in any position (except inverted)
• Safety Features: Valve Regulated, Spill-Proof

Recommendations

For optimal performance and longevity, charge the battery with a compatible 12V lead-acid charger. Avoid deep discharges below 10.5V. Store in a cool, dry place when not in use.
