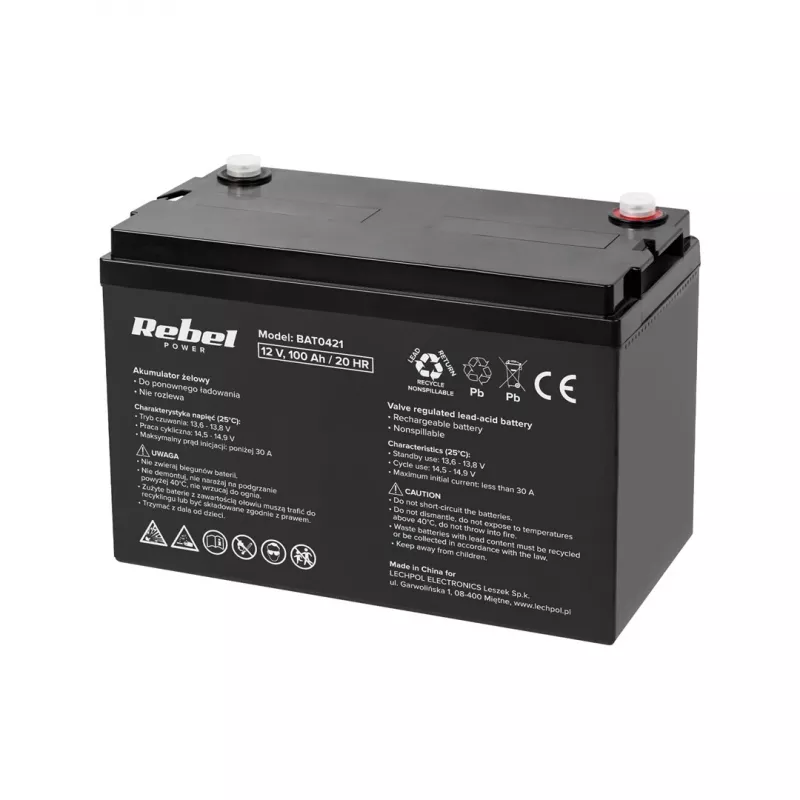

Bateria de gel REBEL VIPOW 12V 100Ah

The REBEL VIPOW Gel Battery 12V 100Ah is a high-performance VRLA GEL battery designed for reliable energy storage in demanding applications such as UPS, solar systems, telecommunications, emergency lighting, security systems, medical equipment, and electric vehicles. With a nominal capacity of 100Ah (C10) and a design life of 10-12 years, this maintenance-free battery delivers consistent power and long service life.

Advantages

This gel battery offers deep cycle capabilities, low self-discharge (less than 3% per month), and excellent recovery after deep discharge. The sealed VRLA design ensures safe operation without electrolyte leakage, and the ABS housing provides durability. With a wide operating temperature range and high discharge current capability (1000A for 5 seconds), it is suitable for both standby and cyclic use.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Solar energy storage systems
• Telecommunications equipment
• Emergency lighting systems
• Security and alarm systems
• Medical devices
• Electric vehicles and mobility

Key specifications

• Nominal Voltage: 12V
• Nominal Capacity: 100Ah (C10)
• Battery Technology: VRLA GEL
• Design Life: 10-12 years (float service at 25°C)

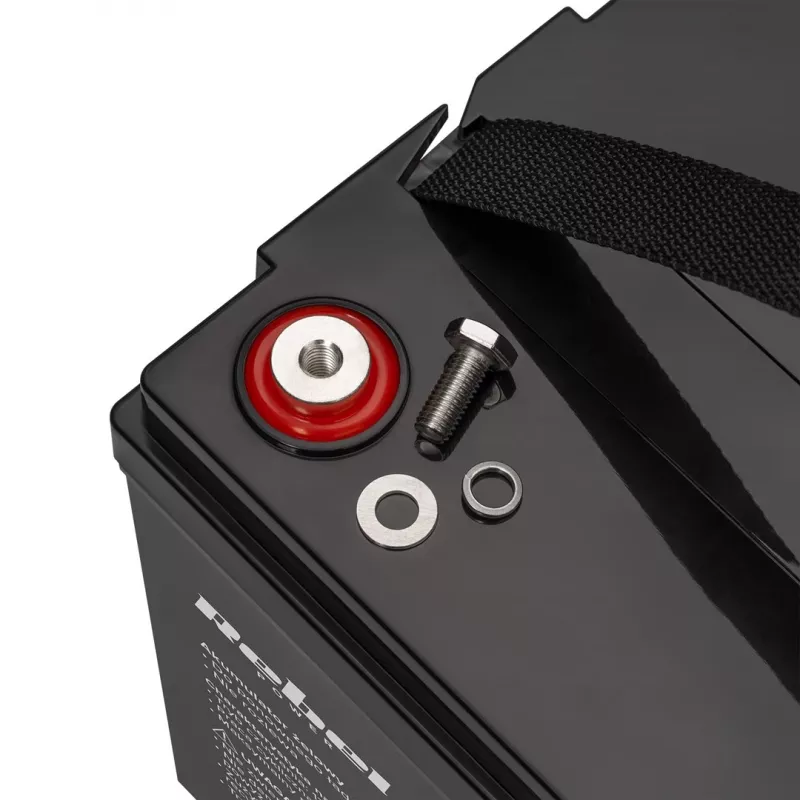

• Terminal Type: T11 (M8 Bolt & Nut)
• Max. Discharge Current: 1000A (5 seconds)
• Max. Charge Current: 30A
• Float Charge Voltage: 13.5V - 13.8V at 25°C
• Cycle Use Voltage: 14.4V - 14.7V at 25°C
• Operating Temperature Range (Discharge): -20°C to 50°C
• Operating Temperature Range (Charge): -10°C to 50°C
• Operating Temperature Range (Storage): -20°C to 50°C
• Self-Discharge Rate: Less than 3% per month at 25°C
• Internal Resistance: Approx. 4.5 mΩ
• Housing Material: ABS
• Cycle Life (30% DoD): Approx. 1200 cycles
• Cycle Life (50% DoD): Approx. 600 cycles

Recommendations

For optimal performance and longevity, use a compatible charger with appropriate voltage settings. Ensure proper ventilation during charging. Store in a cool, dry place. Always follow manufacturer guidelines for installation and maintenance.
