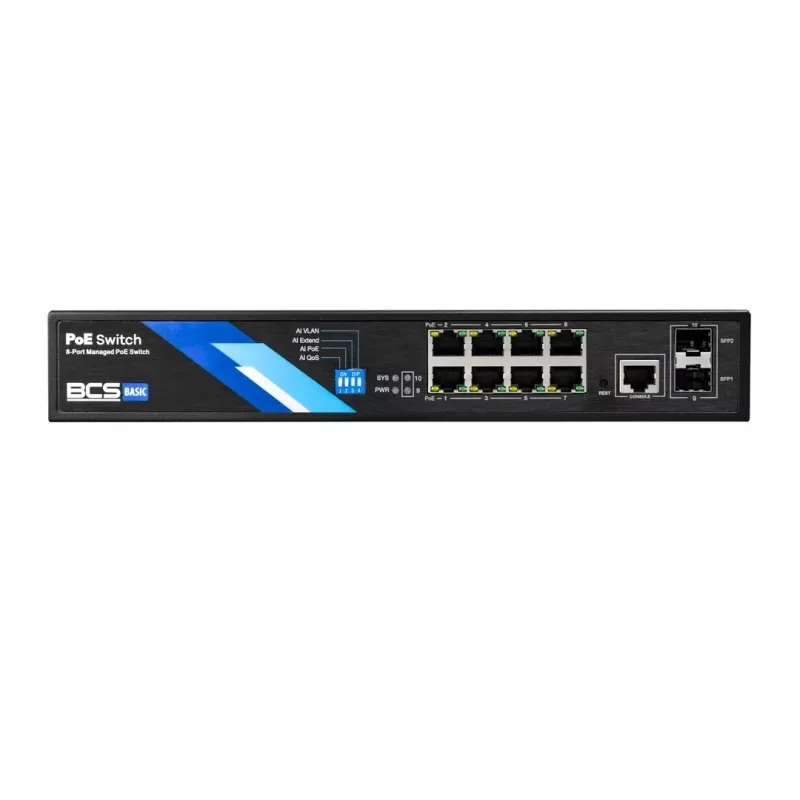

BCS B-SP08G-2SFP-M Switch Ethernet industrial gerido Layer 2, 8 portas Gigabit, 2 slots SFP, calha DIN

The BCS B-SP08G-2SFP-M is a managed Layer 2 industrial Ethernet switch designed for reliable network connectivity in harsh environments. With 8 Gigabit Ethernet ports and 2 SFP slots, it delivers high-speed data transfer and flexible fiber uplinks. Its rugged IP30 metal casing, wide operating temperature range (-40°C to 75°C), and dual redundant DC power input ensure uninterrupted operation in industrial settings.

Advantages

This switch offers advanced management features including VLAN, QoS, and redundancy protocols (STP/RSTP/MSTP, ERPS) for network optimization and reliability. The dual power input provides redundancy, while ESD and surge protection safeguard against electrical disturbances. Compact DIN rail mounting saves space in control cabinets.

Suitable for

• Industrial automation networks
• Factory floor data collection
• Surveillance systems
• Transportation and utility infrastructure

Key specifications

• 8 x 10/100/1000 Mbps Gigabit Ethernet ports
• 2 x 1000 Mbps SFP slots
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• MAC address table: 8K
• Jumbo frame support: 9K bytes
• VLAN support: IEEE 802.1Q, up to 4094 VLAN IDs
• Redundancy: STP/RSTP/MSTP, ERPS (G.8032)
• QoS: 8 priority queues, WRR/SP/WFQ, DSCP, 802.1p
• Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Syslog
• Power input: Dual redundant DC 12-48V
• Power consumption: <8W typical
• Operating temperature: -40°C to 75°C
• Housing: IP30 rated metal casing
• Mounting: DIN rail, wall mount
• ESD protection: 6KV contact, 8KV air
• Surge protection: 6KV

Recommendations

For optimal performance, use with industrial-grade SFP modules and ensure proper grounding. The switch supports both DIN rail and wall mounting; select the appropriate method for your installation environment.
