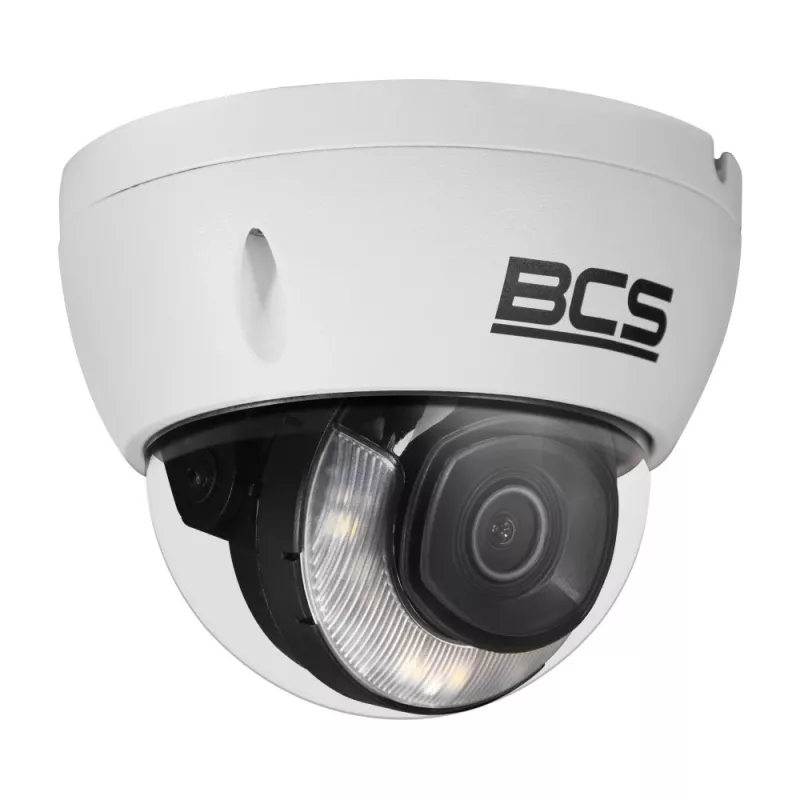

BCS Câmara IP Dome 8MP BCS-L-DIP18FCR3L3-Ai1

The BCS-L-DIP18FCR3L3-Ai1 is a high-performance 8MP IP dome camera designed for professional surveillance. Featuring a 1/2.8" CMOS sensor, it delivers crisp 3840x2160 resolution at 20 fps. With Smart IR up to 30m, 120dB WDR, and AI-powered analytics including perimeter protection and face detection, this camera ensures reliable security in demanding environments.

Advantages

Exceptional image quality with 8MP resolution and 120dB WDR for clear footage in challenging lighting. AI features reduce false alarms with intelligent detection. Rugged IP67 and IK10 rating ensures durability outdoors. Supports H.265+ compression to save bandwidth and storage.

Suitable for

• Perimeter surveillance for commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Critical infrastructure requiring high detail and AI analytics

Key specifications

• Sensor: 1/2.8" 8MP Progressive CMOS
• Resolution: 3840x2160 (8MP)
• Lens: 3.6mm fixed, F1.6, 87° H-FOV
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Audio: Built-in microphone
• Network: 1x RJ-45 10/100 Mbps Ethernet
• Power: 12V DC / PoE (802.3af), max 5.5W
• Storage: MicroSD slot up to 256GB
• Protection: IP67, IK10
• AI: Perimeter protection, SMD Plus, face detection
• Operating Temperature: -40°C to +60°C

Recommendations

For optimal performance, use a PoE switch or 12V DC power supply. Pair with a compatible NVR for full AI functionality. Ensure proper mounting to achieve the specified field of view.
