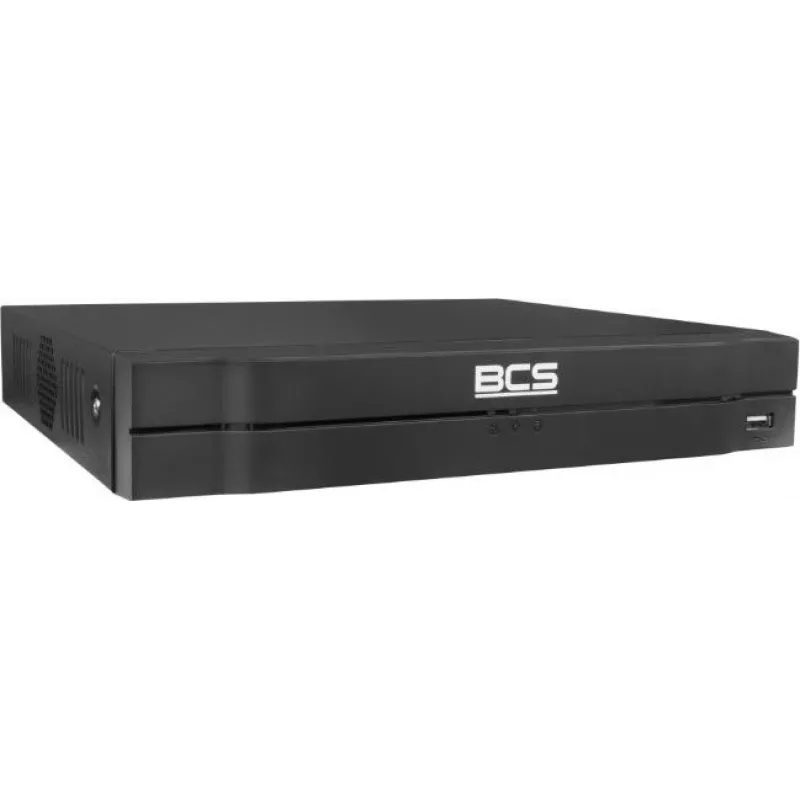

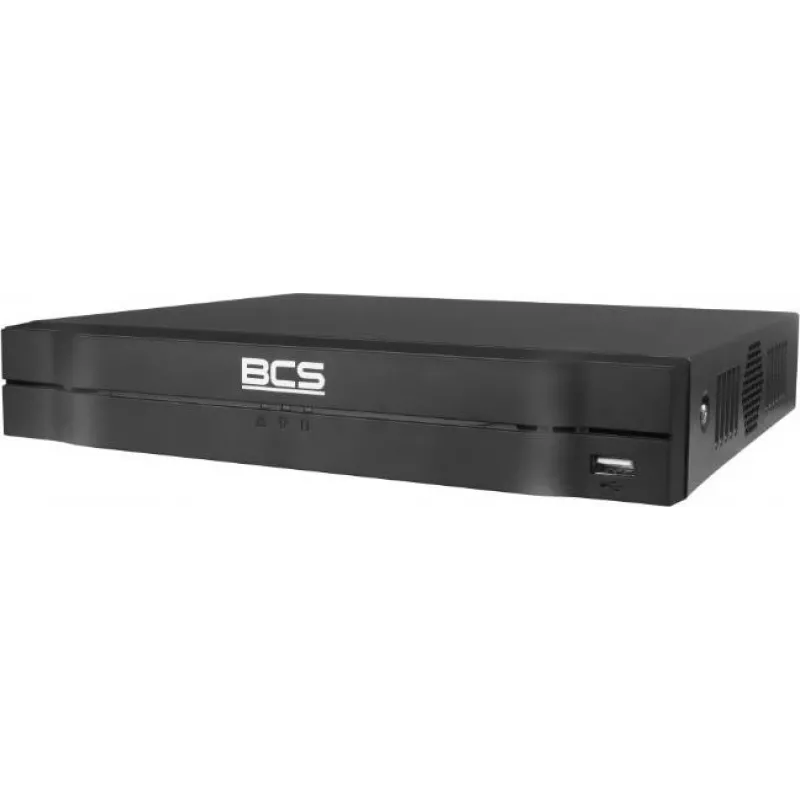

BCS Gravador de Vídeo em Rede PoE 4K 8 Canais NVR, 8 Portas PoE, H.265+, 1 Baía SATA HDD, BCS-L-NVR0801-4KE-8P(2L)

The BCS-L-NVR0801-4KE-8P(2L) is a professional 8-channel IP network video recorder designed for small to medium-sized surveillance systems. It supports up to 8MP (4K) resolution recording with advanced H.265+ compression to save bandwidth and storage. Equipped with 8 built-in PoE ports (IEEE 802.3af/at), it simplifies installation by powering IP cameras directly. The NVR features a single SATA HDD bay supporting up to 10TB, dual video outputs (HDMI 4K and VGA 1080p), and remote access via BCS Manager app.

Advantages

High-efficiency H.265+ compression reduces storage requirements by up to 50% compared to H.264. Plug-and-play PoE eliminates the need for separate power adapters for cameras. Simultaneous playback of all 8 channels allows quick review of recorded footage. The compact design and low power consumption (<10W without HDD) make it ideal for desktop or rack-mount installations.

Suitable for

• Retail stores and small offices requiring 8-camera surveillance
• Residential properties with PoE IP cameras
• Warehouses and workshops needing reliable 24/7 recording
• Remote monitoring via smartphone or PC

Key specifications

• Video Input: 8 IP channels
• PoE Ports: 8 (IEEE 802.3af/at, total PoE budget not specified)
• Max Recording Resolution: 8MP (4K)
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming/Outgoing Bandwidth: 80/60 Mbps
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA in, 1x RCA out
• HDD Bay: 1 SATA, up to 10TB
• Network: 1x RJ-45 10/100/1000 Mbps
• USB: 2x USB 2.0
• Power: DC 48V 2.5A
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, use compatible BCS PoE IP cameras and a certified SATA HDD (surveillance-grade recommended). Ensure the network switch supports sufficient PoE budget if additional cameras are connected. Regular firmware updates via BCS Manager enhance security and features.
