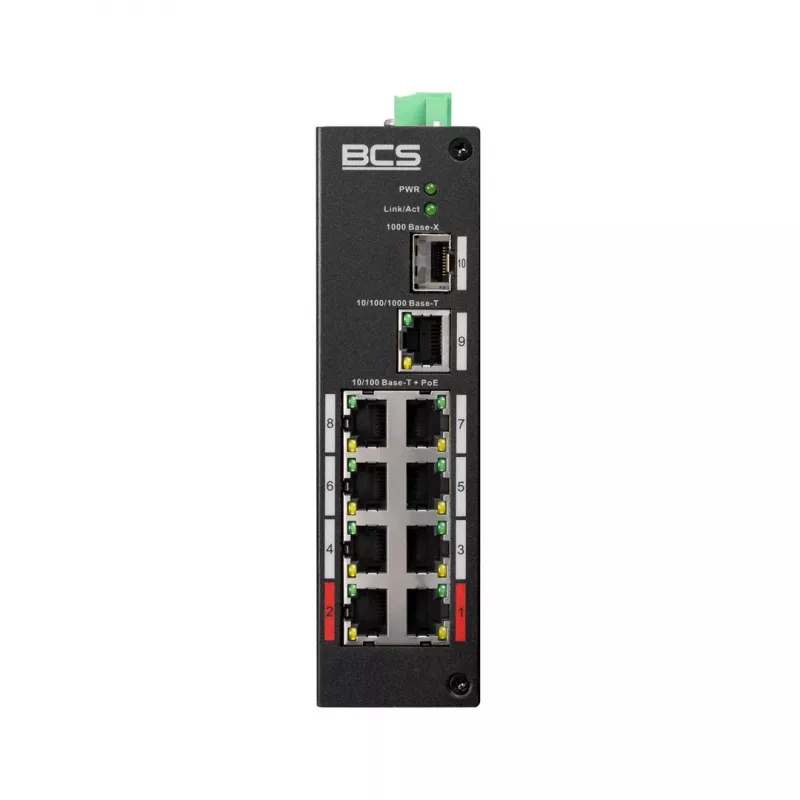

BCS-L-SP0801G-1SFP(2)

In a busy factory floor, eight IP cameras and wireless access points need reliable power and data over a single cable. This BCS industrial switch delivers exactly that: eight Gigabit PoE+ ports with a total 120W budget, plus an SFP slot for fiber uplink to the core network. Its rugged metal housing, wide temperature range, and DIN-rail mounting make it a dependable choice for harsh environments.

Key specifications

• 8× 10/100/1000Base-T RJ45 ports with PoE+ (IEEE 802.3af/at)
• 1× 1000Base-X SFP uplink port
• Total PoE power budget: 120W (max 30W per port)
• Switching capacity: 20 Gbps; forwarding rate: 14.88 Mpps
• MAC address table: 8K entries; jumbo frame support up to 9K bytes
• Unmanaged plug-and-play operation
• Redundant DC power input: 48–57V
• Operating temperature: -40°C to +75°C; IP40 metal enclosure
• DIN-rail and wall-mount options included
• 6KV surge and ESD protection (6KV contact / 8KV air)

Why choose it

Engineered for industrial networks, this switch combines high PoE power delivery with robust protection against electrical noise and temperature extremes. Its compact design and flexible mounting save space in control cabinets, while the SFP uplink ensures high-speed connectivity to the backbone. No configuration is needed—just connect your devices and power up.

Ideal use cases

• IP surveillance systems in factories, warehouses, and outdoor sites
• Connecting PoE-powered access points and VoIP phones in industrial settings
• Building automation and IoT sensor networks
• Transportation and roadside cabinets requiring wide-temperature operation

Good to know

The switch supports IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, and 802.3at standards. It includes LED indicators for power, link/activity, and PoE status. With redundant power inputs, you can connect two DC sources for increased reliability. The unit is backed by a mean time between failures (MTBF) of over 500,000 hours.
