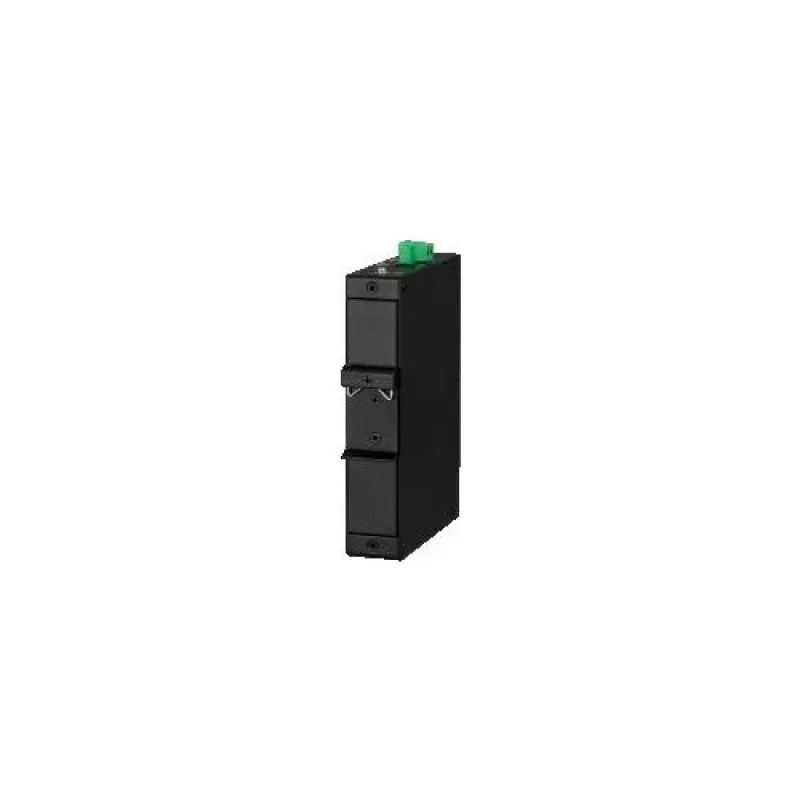

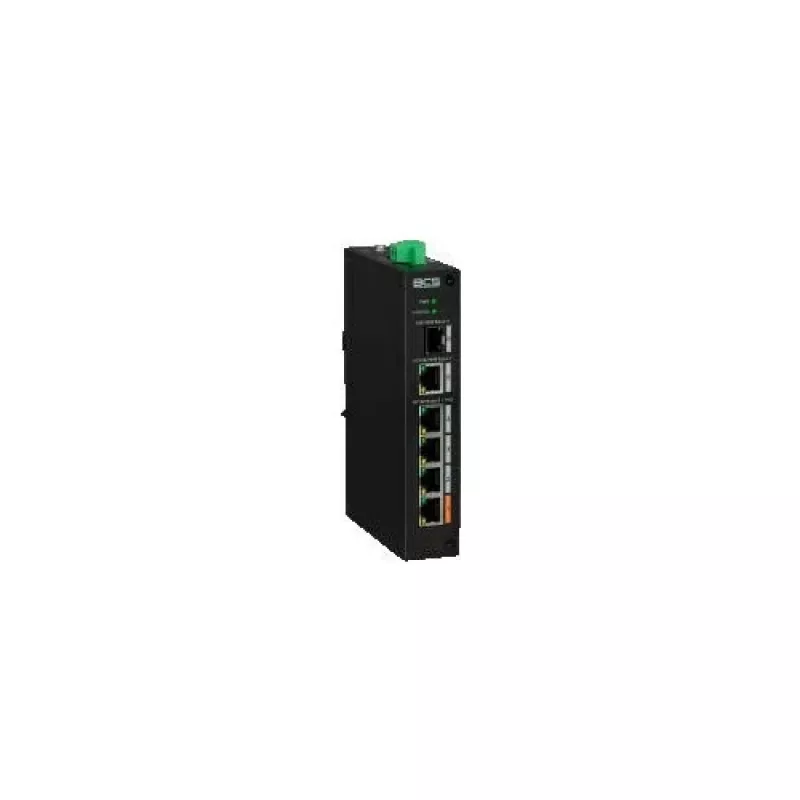

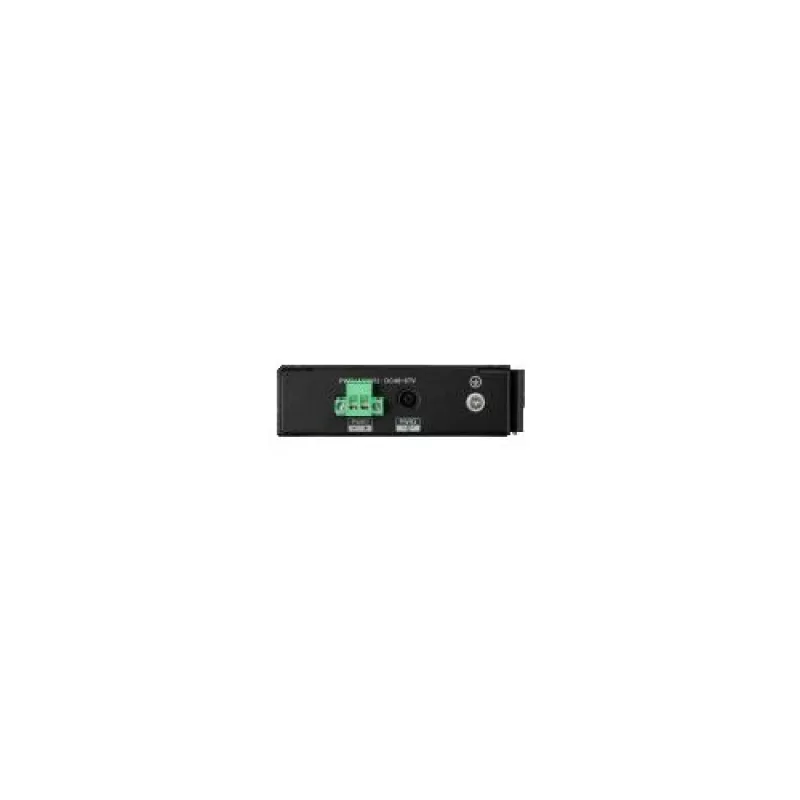

BCS-L-SP0401G-1SFP(2) Switch PoE+ não gerido de 5 portas (4 portas PoE, 1 uplink SFP)

The BCS-L-SP0401G-1SFP(2) is a high-performance 5-port unmanaged PoE+ switch designed for small to medium-sized networks. It provides reliable power and data connectivity for PoE devices such as IP cameras, VoIP phones, and wireless access points. With 4 PoE+ ports and a total power budget of 60W, it simplifies deployment by eliminating the need for separate power supplies.

Advantages

This switch offers plug-and-play installation with no configuration required. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments. The metal housing provides durability and effective heat dissipation. Wall-mountable design saves space and allows flexible placement.

Suitable for

• Small offices and home offices (SOHO)
• Surveillance systems with PoE IP cameras
• Wireless access point deployments
• VoIP phone networks

Key specifications

• 5 Gigabit Ethernet ports (4 PoE+ 10/100/1000 Mbps + 1 uplink)
• 1 SFP slot for fiber uplink (1000 Mbps)
• PoE standard: IEEE 802.3af/at, up to 30W per port
• Total PoE budget: 60W
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.928 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 9K bytes
• External power supply: DC 52V, 1.25A
• Operating temperature: -10°C to 55°C
• Fanless design for silent operation
• LED indicators: Power, Link/Act, PoE status

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure total PoE power consumption does not exceed 60W. This switch is ideal for expanding network coverage in areas where power outlets are limited.
