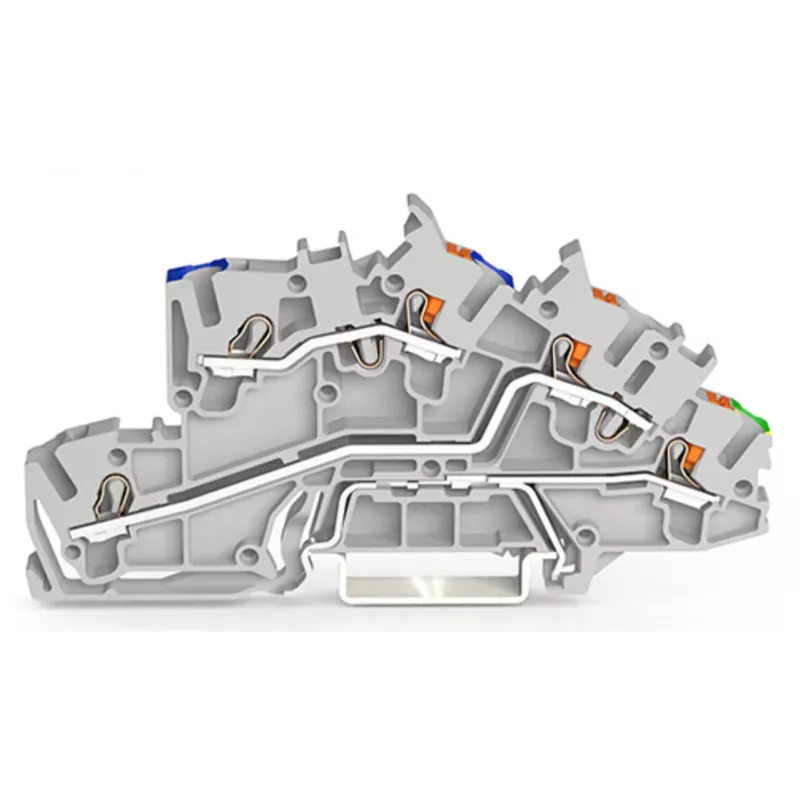

WAGO 2203-7546 Borne de série de instalação com abertura de acionamento, 6 ligações, 2 níveis, cinzento-claro

The WAGO 2203-7546 Installation Junction Terminal Block is a high-quality, compact terminal block designed for reliable and safe electrical connections in building installations. Featuring PUSH WIRE® connection technology, it allows for fast, tool-free wiring of solid, stranded, and fine-stranded copper conductors from 0.5 to 2.5 mm² (20-14 AWG). With 6 connections across 2 levels and 3 potentials, this terminal block is ideal for junction boxes and distribution boards. The operating slot enables easy actuation, while the light gray polyamide housing ensures durability and a V0 flammability rating.

Advantages

PUSH WIRE® technology for quick and secure conductor insertion without tools. Compact 2-level design saves space on DIN-rail. Rated for 450 V and 24 A, suitable for a wide range of applications. Operating slot allows for easy testing and reconnection. V0 flammability rating ensures high safety standards.

Suitable for

• Building installation wiring
• Junction boxes and distribution boards
• Lighting and power circuits
• Industrial control cabinets

Key specifications

• Series: 2203
• Connection Technology: PUSH WIRE®
• Number of Potentials: 3
• Total Connections: 6
• Number of Levels: 2
• Nominal Voltage (II/2): 450 V
• Rated Surge Voltage (II/2): 4 kV
• Nominal Current: 24 A
• Conductor Cross-Section: 0.5 - 2.5 mm² (20-14 AWG)
• Strip Length: 11 mm
• Mounting: DIN-rail
• Color: Light Gray
• Material: Polyamide (PA)
• Flammability Class: V0
• Pollution Degree: 2
• Protection: IP20
• Operating Temperature: -35 to +85 °C

Recommendations

For optimal performance, use with WAGO 2203 series accessories and ensure proper strip length of 11 mm. Suitable for use in dry indoor environments.
