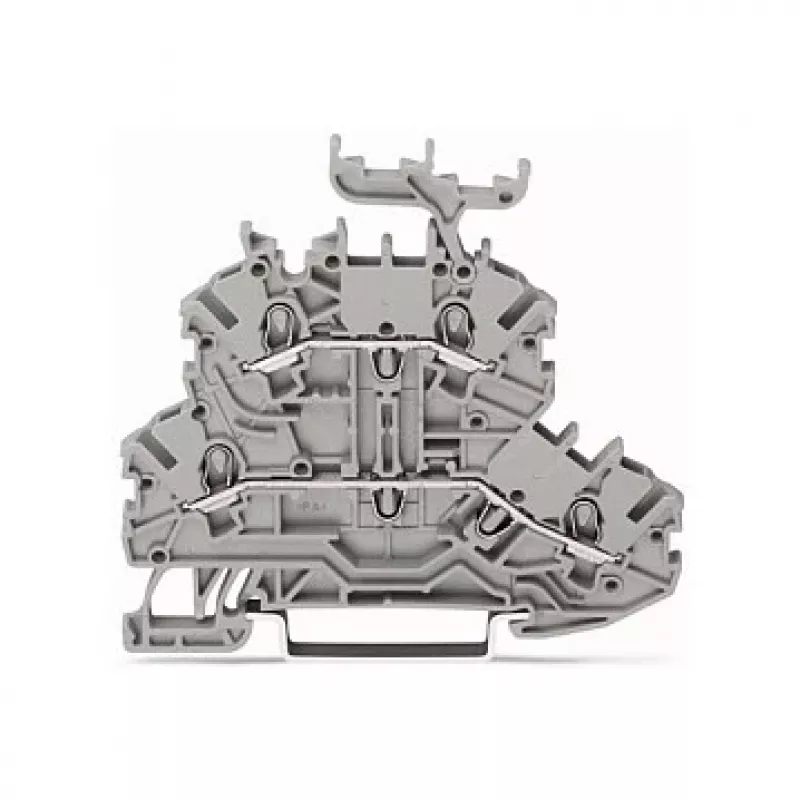

WAGO 2000-2231 Borne de passagem de dois níveis, L/L, cinzento, 2,5 mm², 800 V, 24 A, calha DIN

Rated for 800 V and 24 A with a 2.5 mm² nominal cross-section, this double-deck terminal block delivers uncompromising performance in a compact 4 mm wide footprint. The WAGO 2000-2231 provides two independent potentials (L/L) across four connection points, making it the go-to choice for high-density control panels and machine wiring where space is tight but reliability is non-negotiable.

Overview

The WAGO 2000-2231 is a double-deck feedthrough terminal block engineered for DIN-35 rail mounting. It features WAGO's legendary CAGE CLAMP® spring pressure connection technology, which guarantees vibration-proof, maintenance-free terminations for solid, stranded, and fine-stranded conductors from 0.08 to 4 mm² (28–12 AWG). The grey polyamide (PA 66) housing is halogen-free and flame-retardant, ensuring long-term safety in industrial environments. With a rated impulse voltage of 8 kV and pollution degree 3 compliance, this terminal block is built to withstand harsh operating conditions.

What stands out

• Double-deck design: two potentials (L/L) in one 4 mm wide module, doubling wiring density.
• CAGE CLAMP® technology: tool-actuated, maintenance-free, and resistant to vibration and temperature cycling.
• Wide conductor range: accepts solid conductors up to 4 mm² and fine-stranded up to 2.5 mm².
• High electrical ratings: 800 V nominal voltage, 24 A nominal current, 8 kV impulse withstand.
• Global approvals: VDE, UL, CSA, KEMA/KEUR certified for worldwide use.
• Durable insulation: grey polyamide 66, halogen-free, with excellent mechanical and thermal properties.

Technical details

• Terminal block type: Double-deck feedthrough terminal block
• Number of potentials: 2 (L/L)
• Number of connection points: 4
• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Nominal cross-section: 2.5 mm²
• Solid conductor size: 0.08 ... 4 mm² (28 ... 12 AWG)
• Fine-stranded conductor size: 0.08 ... 2.5 mm² (28 ... 14 AWG)
• Nominal voltage (III/3): 800 V
• Rated impulse voltage (III/3): 8 kV
• Nominal current: 24 A
• Insulation material: Polyamide (PA 66)
• Colour: Grey
• Mounting type: DIN-35 rail
• Pollution degree: 3
• Wiring type: Side-entry wiring
• Height from upper edge of DIN rail: 60.5 mm
• Approvals: VDE, UL, CSA, KEMA/KEUR

Our verdict

For panel builders and machine OEMs who demand high wiring density without compromising on safety or ease of use, the WAGO 2000-2231 is an outstanding choice. Its double-deck L/L configuration halves rail space requirements, while CAGE CLAMP® technology ensures every connection stays tight for the life of the equipment. With full international approvals and a robust grey polyamide housing, this terminal block is ready for any industrial challenge.
