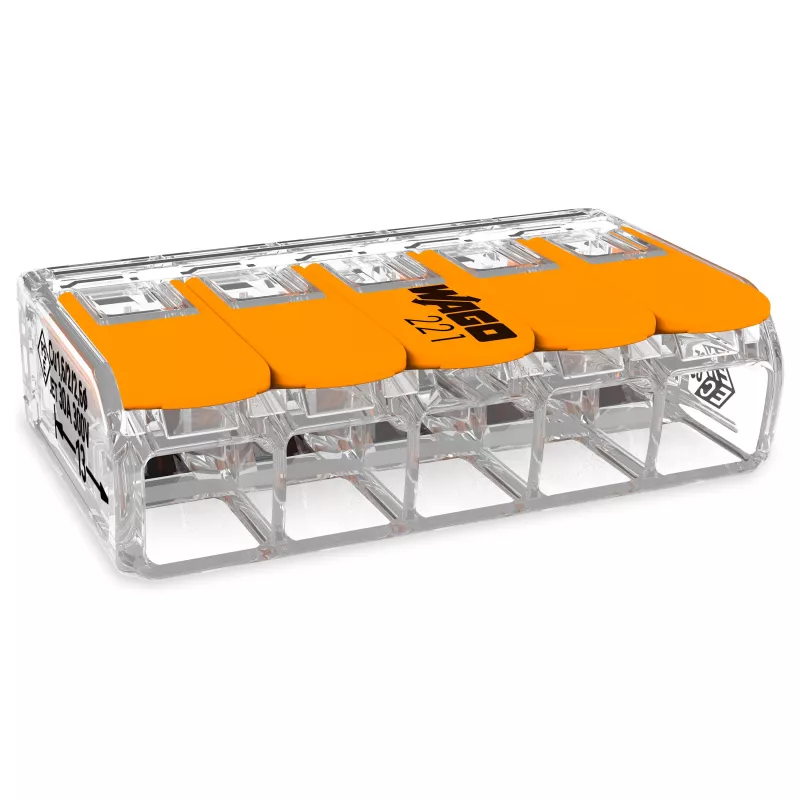

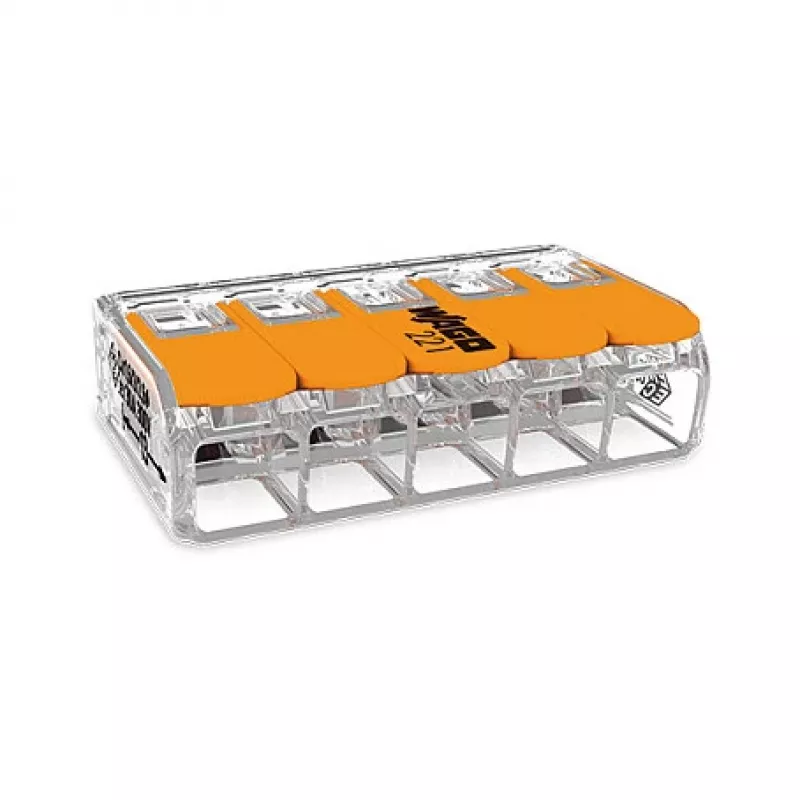

Conector de alavanca WAGO 221-615 5 condutores, terminal de ligação compacto, 450 V, 32 A, transparente/laranja

Rated for 450 V and 32 A, this WAGO 221-615 splicing connector handles five solid, stranded, or fine-stranded copper conductors from 0.14 to 4 mm² (24–12 AWG) with lever-operated CAGE CLAMP® technology.

Overview

The WAGO 221-615 is a 5-conductor lever-operated splicing connector from the 221 series. Its transparent polycarbonate housing and orange levers allow visual confirmation of conductor placement and clamp status. The connector is rated for 450 V (II/2) and 32 A, with a rated surge voltage of 4 kV. It accepts solid and stranded conductors from 0.2 to 4 mm² (24–12 AWG) and fine-stranded conductors from 0.14 to 4 mm² (24–12 AWG). The stripping length is 11 mm (0.43 inch).

What stands out

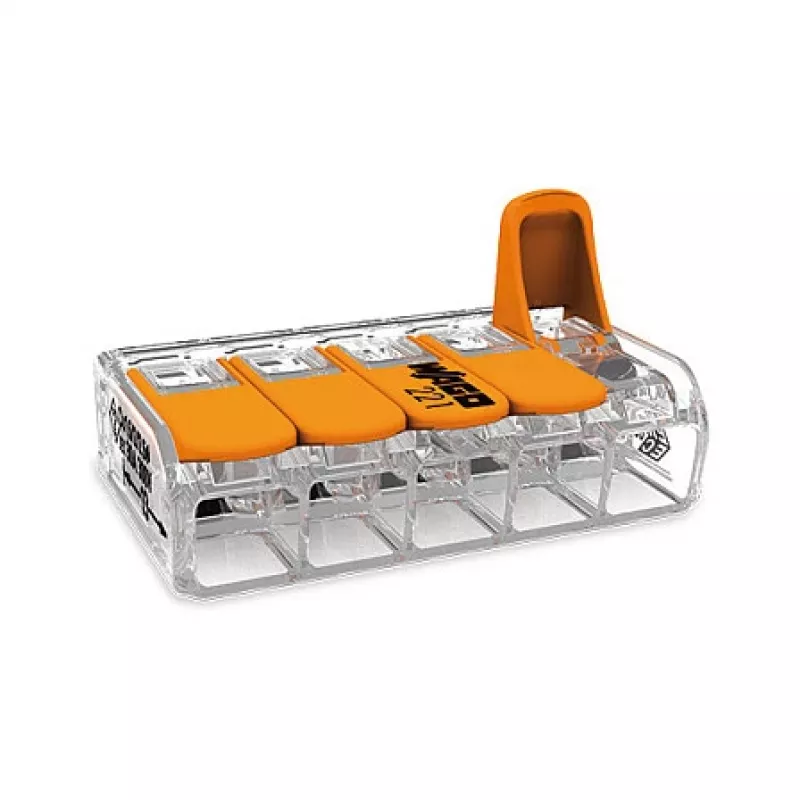

• Lever-operated CAGE CLAMP® for tool-free, vibration-resistant connections
• Transparent housing for visual inspection
• Wide conductor range: 0.14–4 mm² (24–12 AWG)
• Operating temperature range: -20 to +85 °C
• Flammability class UL94 V2, insulation material polycarbonate (PC)

Technical details

• Number of conductors: 5
• Connection type: Lever-operated CAGE CLAMP®
• Rated voltage (II/2): 450 V
• Rated surge voltage (II/2): 4 kV
• Nominal current: 32 A
• Connectable conductor material: Copper
• Solid conductor cross-section: 0.2–4 mm² (24–12 AWG)
• Stranded conductor cross-section: 0.2–4 mm² (24–12 AWG)
• Fine-stranded conductor cross-section: 0.14–4 mm² (24–12 AWG)
• Stripping length: 11 mm (0.43 inch)
• Housing color: Transparent
• Lever color: Orange
• Insulating material: Polycarbonate (PC)
• Flammability class: UL94 V2
• Operating temperature: -20 to +85 °C
• Pollution degree: 2
• Approvals: ENEC, UL, CSA, KEMA/KEUR

Our verdict

A compact, reliable splicing solution for five conductors, ideal for maintenance and installation work where quick, tool-free connections are needed.
