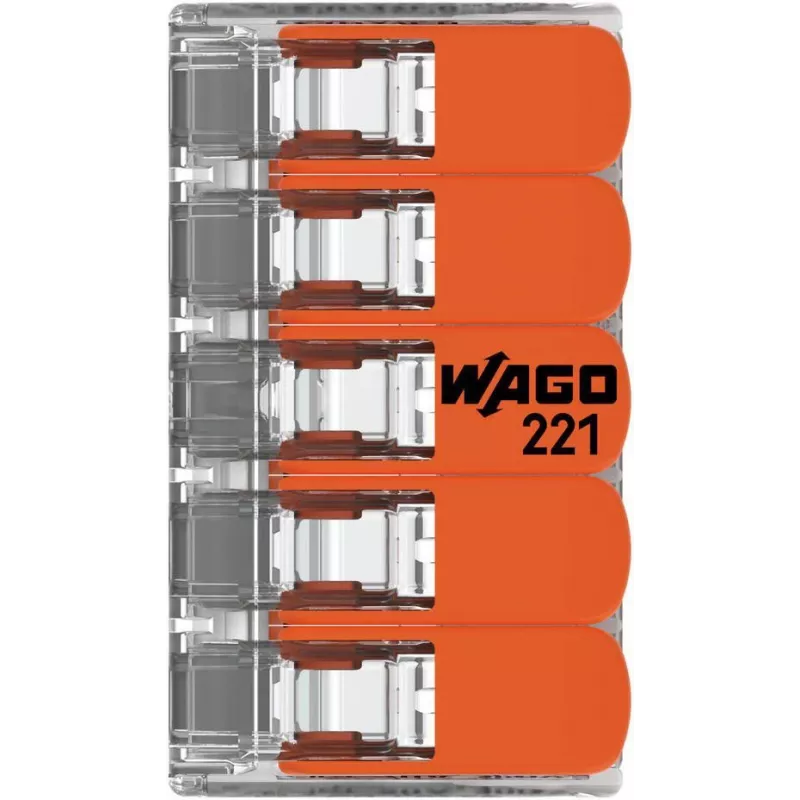

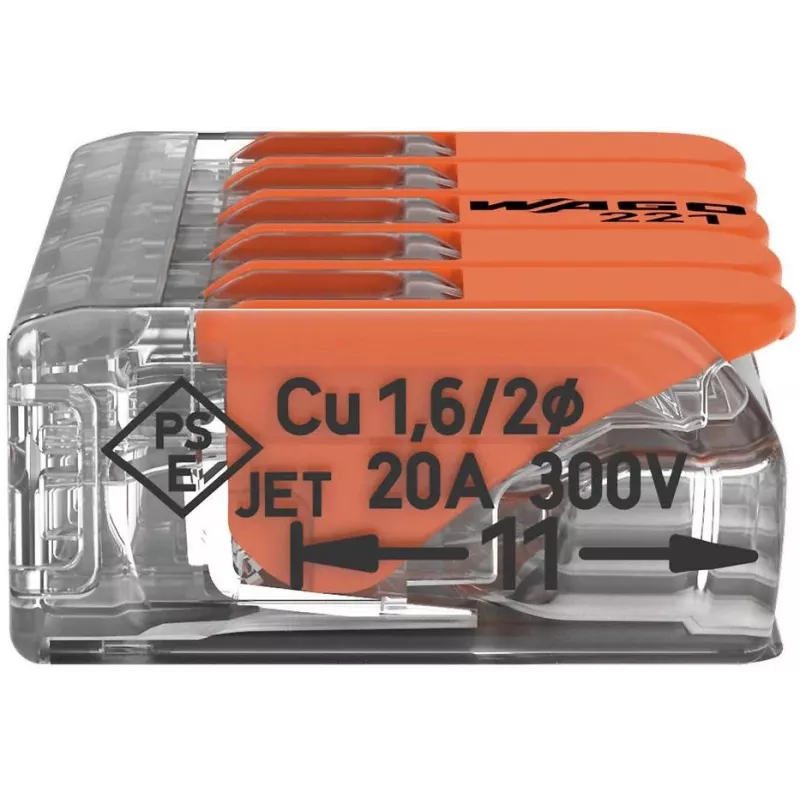

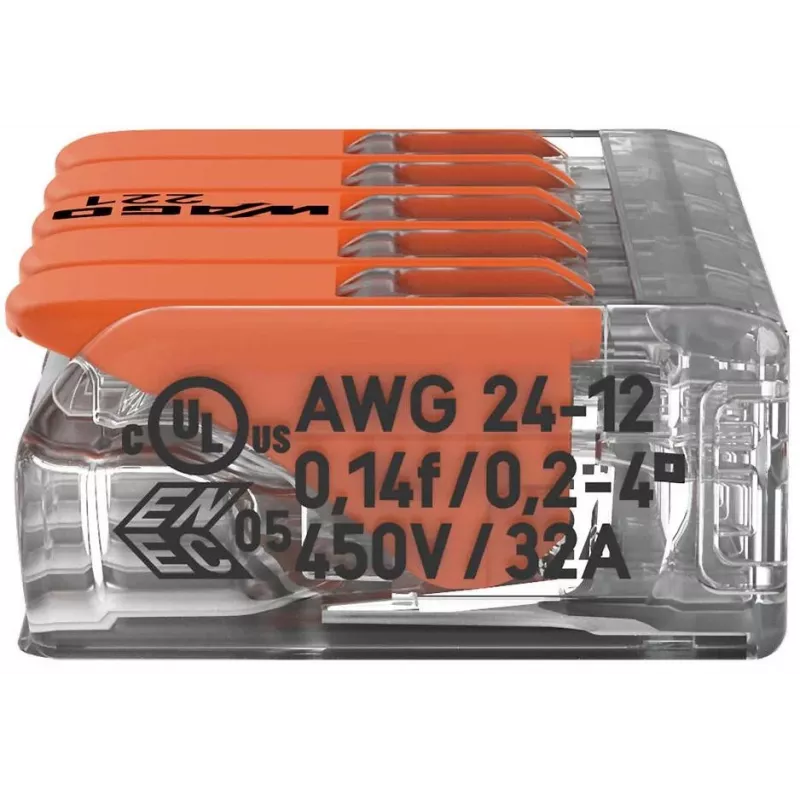

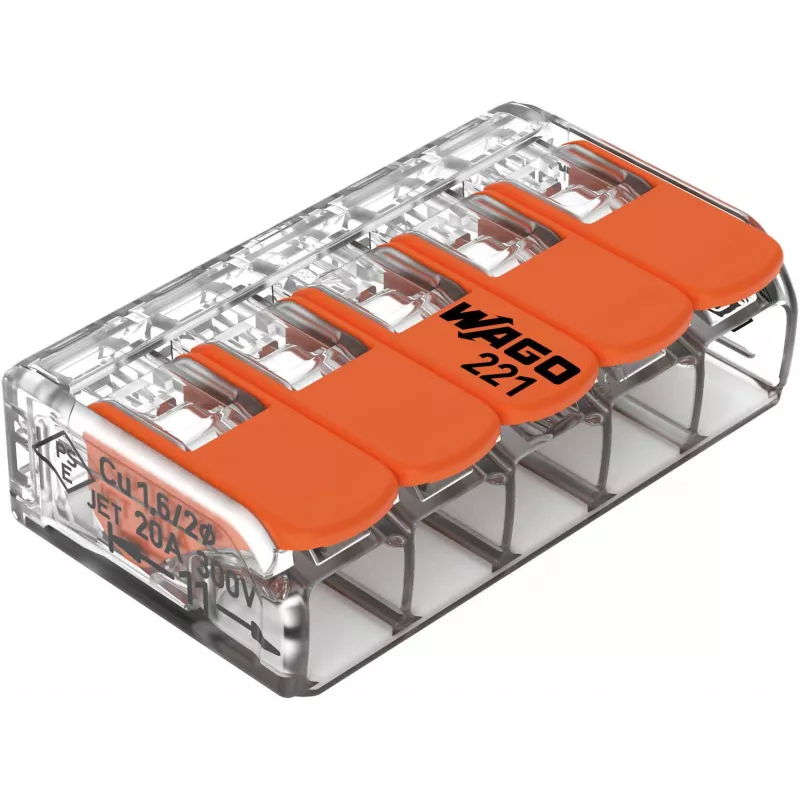

WAGO 221-415 COMPACT Conector de ligação para 5 condutores, 0,2-4 mm², pack de 25

Electrical installations often demand reliable, tool-free connections that save time and space, especially when joining multiple conductors of different types. The WAGO 221-415 COMPACT splicing connector answers this need with a 5-conductor lever-operated solution that handles solid, stranded, and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG). Its transparent housing and orange levers provide immediate visual confirmation of proper termination, while the CAGE CLAMP® technology ensures vibration-proof, maintenance-free connections. This pack contains 25 connectors, ideal for junction boxes, lighting circuits, and building wiring where compactness and safety are paramount.

Who is it for

Electricians, panel builders, and maintenance technicians who need a fast, secure way to connect multiple conductors without screws or crimping. It is equally suited for professional contractors working on residential or commercial projects and for DIY enthusiasts tackling home electrical repairs. The 5-way design is perfect for distributing power to multiple branches, such as lighting arrays or socket circuits, where space inside junction boxes is limited.

Main features

• Connects 5 conductors of any type: solid, stranded, and fine-stranded
• Wide clamping range: 0.2–4 mm² (24–12 AWG) for solid/stranded, 0.14–4 mm² for fine-stranded
• Tool-free operation with orange levers – no screwdriver needed
• Transparent housing allows visual inspection of conductor insertion and clamping
• CAGE CLAMP® spring pressure connection is maintenance-free and vibration-resistant
• Rated for 450 V and 32 A, suitable for most building wiring applications
• Compact dimensions save space in junction boxes and enclosures
• Pack of 25 connectors for cost-effective bulk use

Specifications

• Number of conductors: 5
• Conductor types: solid, stranded, fine-stranded
• Cross-section (solid/stranded): 0.2 – 4 mm² (AWG 24 – 12)
• Cross-section (fine-stranded): 0.14 – 4 mm² (AWG 24 – 12)
• Rated voltage (EN): 450 V
• Rated impulse voltage: 4 kV
• Rated current (EN): 32 A
• Connection technology: CAGE CLAMP®
• Actuation type: operating lever
• Stripping length: 11 mm / 0.43 inch
• Pollution degree: 2
• Housing material: polycarbonate (PC)
• Contact material: electrolytic copper (Cu), tin-plated
• Flammability class: UL94 V2
• Color: transparent housing, orange levers
• Max. ambient operating temperature: 85 °C

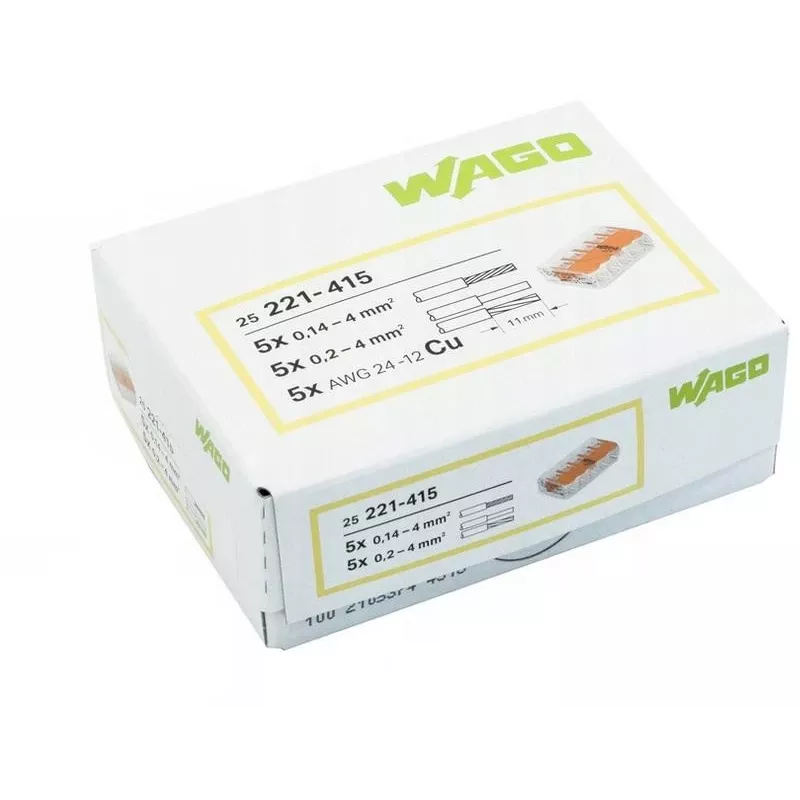

• Pieces per pack: 25

Tips

Always strip conductors to the recommended 11 mm length for a secure connection. For fine-stranded wires, ensure all strands are fully inserted into the clamping unit before closing the lever. The transparent housing allows you to verify that the conductor is properly seated against the stop. When using in damp or outdoor environments, place the connector inside a suitable junction box to maintain the IP rating of the installation. Store unused connectors in a dry place to prevent contamination of the clamping points.
