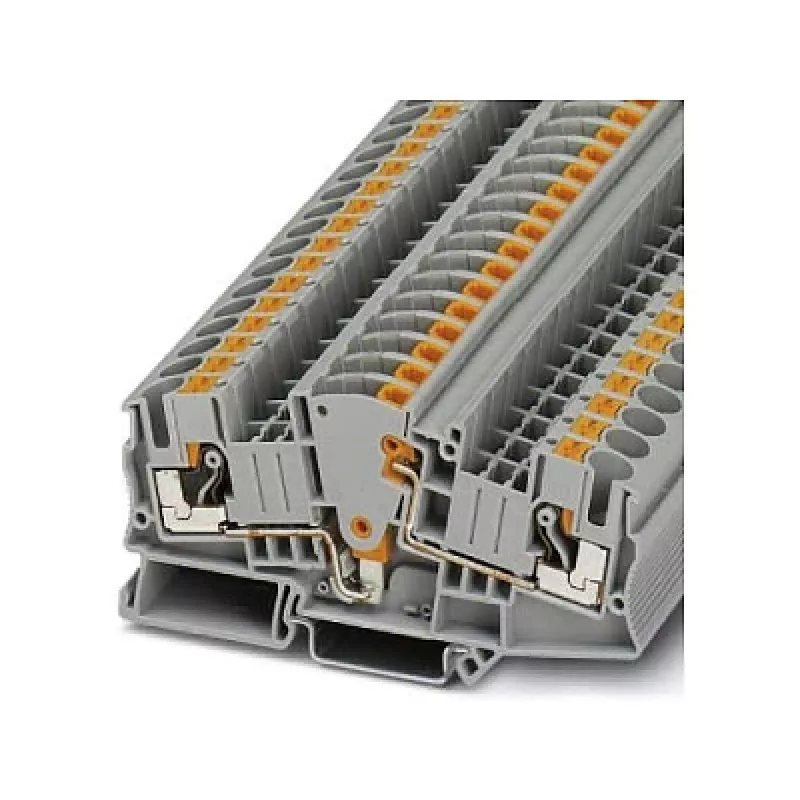

Phoenix Contact PTME 6 Borne de separação para transformador de medição push-in, 1000 V, 41 A, 6 mm², cinzento

Engineered for high-voltage measurement and isolation tasks, the Phoenix Contact PTME 6 Messwandler-Trennklemme delivers a rated surge voltage of 8 kV and a nominal voltage of 1000 V, ensuring robust performance in demanding industrial environments. This push-in disconnect terminal block handles up to 41 A and accommodates conductors up to 10 mm² solid, making it a versatile choice for transformer and current transformer circuits.

Overview

The PTME 6 is a single-level, single-potential terminal block with three push-in connections. Its integrated disconnect slide allows safe and tool-free circuit isolation, while the 4 mm test socket enables convenient measurement and testing without disconnecting wires. The grey polyamide housing is halogen-free and flame-retardant (UL 94 V0), providing long-term reliability.

What stands out

• High current capacity: 41 A nominal current with 6 mm² rated cross section.
• Wide conductor range: accepts solid conductors from 0.5 to 10 mm² and stranded from 0.5 to 6 mm² (AWG 20-8).
• Tool-free push-in connection: reduces wiring time and ensures vibration-resistant contact.
• Integrated disconnect slide: enables quick isolation for testing or maintenance.
• Test socket: 4 mm diameter for standard test plugs, simplifying diagnostics.
• Robust design: operating temperature from -60 °C to 105 °C, pollution degree 3, overvoltage category III.
• Flexible mounting: fits DIN rail NS 35/7.5 and NS 35/15.

Technical details

• Connection method: Push-in connection
• Number of connections: 3
• Number of potentials: 1
• Nominal voltage (IEC): 1000 V
• Nominal current (IEC): 41 A
• Rated cross section: 6 mm²
• Conductor cross section solid: 0.5 mm² - 10 mm²
• Conductor cross section stranded: 0.5 mm² - 6 mm²
• Conductor cross section AWG: 20 - 8
• Stripping length: 10 mm
• Insulating material: PA (Polyamide)
• Colour: Grey
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Operating temperature: -60 °C ... 105 °C
• Pollution degree: 3
• Overvoltage category: III
• Rated surge voltage: 8 kV
• Flammability rating (UL 94): V0
• Disconnect type: Disconnect slide
• Test connection: Test socket 4 mm

Our verdict

The PTME 6 combines high electrical ratings with user-friendly push-in technology and a practical disconnect function. Its wide conductor acceptance and rugged construction make it an excellent choice for measurement and isolation applications in control cabinets and energy distribution systems.
