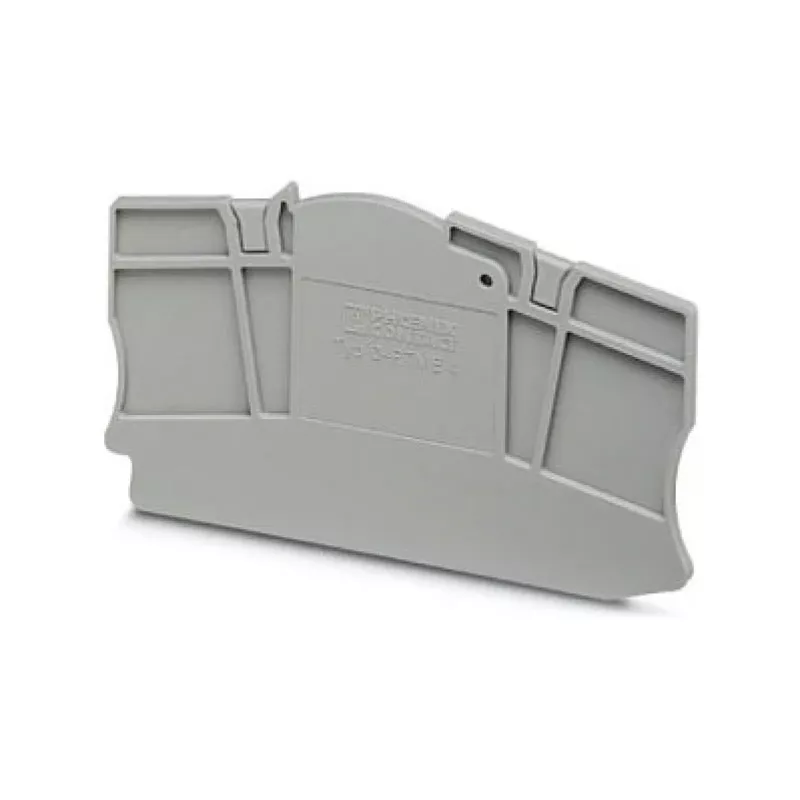

Phoenix 3212167 Cover D-PTME 4 - cinzento, encaixável, poliamida

The Phoenix 3212167 Cover D-PTME 4 is a protective cover engineered for PTME 4 terminal blocks, providing reliable insulation and safeguarding against accidental contact. Its snap-on design allows for quick and secure installation without tools, while the gray polyamide housing ensures durability and compliance with stringent flammability standards.

Advantages

Constructed from high-quality polyamide (PA) with a UL 94 V0 flammability rating, this cover offers excellent resistance to heat and fire, making it suitable for demanding industrial environments. It operates reliably across a wide temperature range from -60 °C to 105 °C, ensuring performance in extreme conditions. The cover is RoHS compliant and carries approvals from UL, cUL, EAC, and VDE, attesting to its safety and quality.

Suitable for

• PTME 4 terminal blocks requiring protection and insulation
• Industrial control panels and electrical enclosures
• Applications where snap-on mounting is preferred for efficiency
• Environments with high safety standards and temperature variations

Key specifications

• Product type: Cover
• Series: PTME
• Compatibility: PTME 4 terminal blocks
• Colour: Gray
• Material: Polyamide (PA)
• Flammability rating: UL 94 V0
• Operating temperature range: -60 °C to 105 °C
• Mounting type: Snap-on
• Insulating material group: I
• Dimensions (L x W x H): 30.5 mm x 2.2 mm x 35.3 mm
• Weight: 1.5 g
• Standards/approvals: RoHS, UL, cUL, EAC, VDE
• Number of positions: 1
• Application: Protection and insulation

Recommendations

For optimal safety and longevity, pair this cover with Phoenix PTME 4 terminal blocks. Its snap-on mechanism simplifies maintenance and reduces installation time. Ensure proper alignment before snapping to avoid damage. Store in a dry environment to maintain material integrity.
