Phoenix 3213949 PTI 2,5-PE/L/L Borne de série multinível, Push-in, 3 níveis, 6 ligações, 2,5 mm², 400 V, 24 A, cinzento

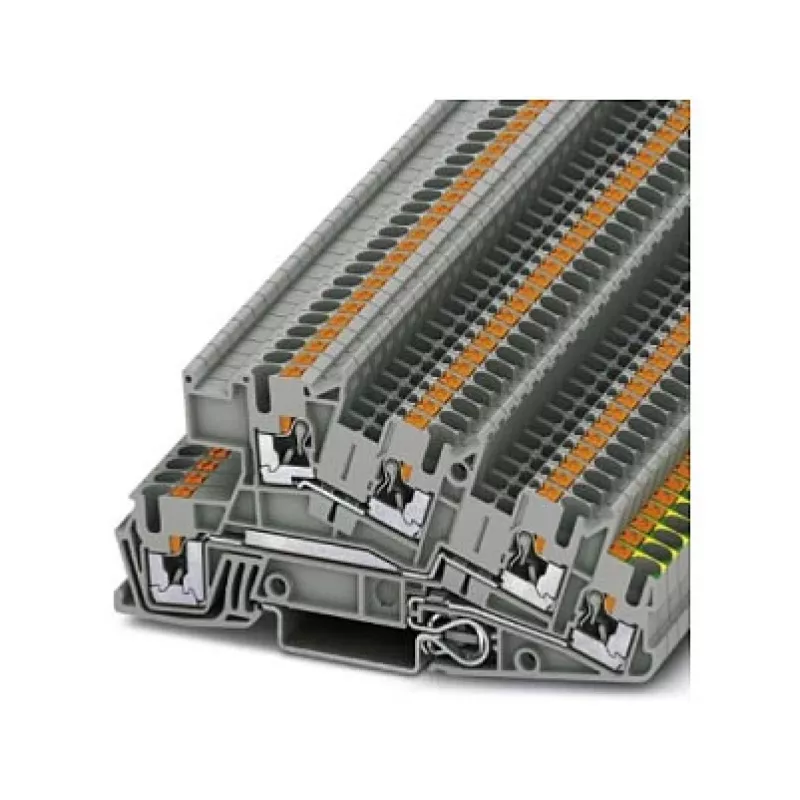

Multi-level installation terminal block with push-in connection technology, engineered for efficient potential distribution across three levels: PE, L, and L. This compact unit provides six connections and supports a nominal cross section of 2.5 mm², ideal for space-saving wiring in control cabinets and distribution boxes.

Advantages

The push-in connection allows tool-free wiring of solid conductors and conductors with ferrules, significantly reducing installation time. The three-level design saves space on the DIN rail, while the integrated PE function ensures safe grounding. The gray housing made of polyamide (PA) is halogen-free and flame-retardant according to UL 94 V0, providing high safety in case of fire. The terminal block is suitable for use in potentially explosive atmospheres (ATEX) and has a wide operating temperature range from -60 °C to 105 °C.

Suitable for

• Industrial control panels and switchgear
• Building automation and installation distribution
• Machinery and equipment wiring
• Applications requiring compact multi-level terminal blocks with PE function

Key specifications

• Connection technology: Push-in
• Number of levels: 3 (PE / L / L)
• Number of connections: 6
• Nominal voltage: 400 V (IEC)
• Nominal current: 24 A (IEC)
• Nominal cross section: 2.5 mm²
• Conductor cross section solid: 0.2 - 4 mm²
• Conductor cross section stranded: 0.2 - 2.5 mm²
• AWG wire size: 24 - 12
• Housing material: Polyamide (PA)
• Colour: Gray
• Mounting type: DIN rail NS 35
• Operating temperature: -60 °C to 105 °C

Recommendations

For reliable and compact power distribution in industrial environments, this multi-level terminal block offers a robust solution with push-in technology and integrated PE function. Ensure proper DIN rail mounting and adhere to specified conductor cross sections for optimal performance.
