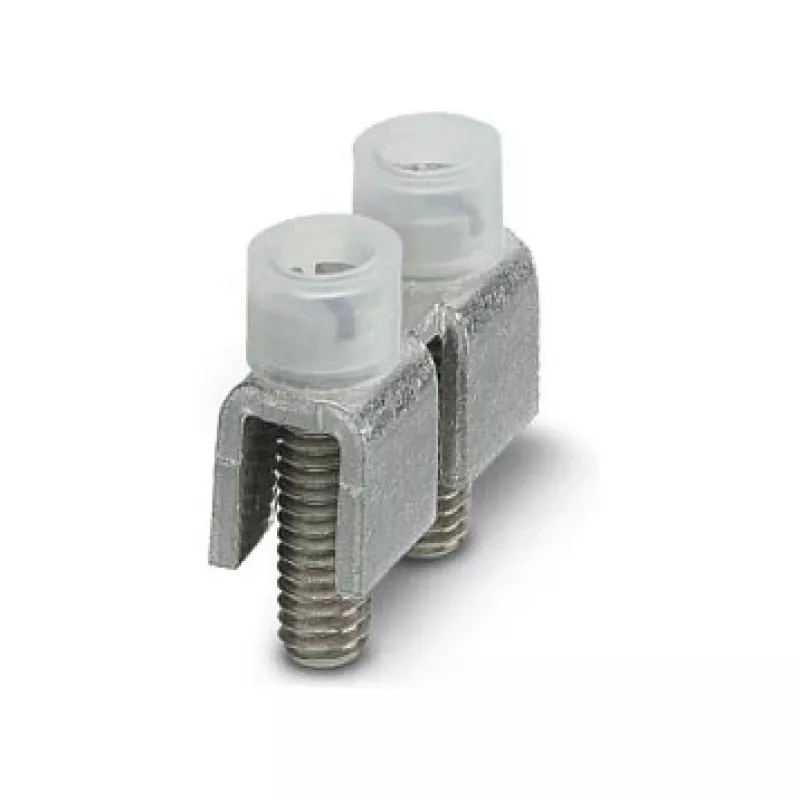

Phoenix Contact 0201333 Barra de Ligação Fixa FBI 2-15, Isolada, 2 Polos, 5,2 mm, Cinzento

The Phoenix Contact 0201333 is a fixed bridge (jumper) engineered for seamless interconnection of adjacent terminal points in control systems. This insulated 2-pole bridge guarantees dependable electrical continuity and mechanical stability, simplifying wiring in industrial and building installations.

Advantages

Pre-assembled and ready to install, the FBI 2-15 bridge reduces wiring time and eliminates potential errors. The grey polyamide insulation provides protection against accidental contact, while the copper conductor ensures low resistance and excellent current carrying capacity. With a robust design, it fits securely onto compatible terminal blocks, creating a vibration-resistant connection.

Suitable for

• Potentiometer and sensor wiring in automation panels
• Distribution of power and signals in terminal block assemblies
• Bridging adjacent circuits in Phoenix Contact ST, UT, and PT series terminal blocks

Key specifications

• Number of positions: 2
• Pitch: 5.2 mm
• Rated voltage (IEC): 500 V
• Rated current (IEC): 17.5 A
• Rated voltage (UL): 300 V
• Rated current (UL): 15 A
• Material: Copper conductor, Polyamide insulation
• Colour: Grey
• Mounting type: Plug-in
• Operating temperature: -60 °C to +105 °C
• Flammability rating: UL 94 V0
• Standards: IEC 60947-7-1, UL 1059, CSA C22.2 No. 158

Recommendations

To maintain optimal performance, use this bridge only with Phoenix Contact terminal blocks featuring a 5.2 mm pitch. Ensure the bridge is fully seated to achieve the rated electrical and mechanical specifications.
