Switch não gerido LANBERG RSGE-24P-2GE-2S-360 com 24 portas Ethernet RJ-45

The Lanberg RSGE-24P-2GE-2S-360 is an unmanaged PoE+ Ethernet switch with 24 Gigabit RJ-45 PoE+ ports, two Gigabit uplink RJ-45 ports and two Gigabit SFP uplink ports. It supplies up to 360 W total power compliant with IEEE 802.3af/at standards, combining data and power delivery over existing structured cabling. The product is intended for installations such as home and business networks, surveillance, IP/VoIP, cable TV, low-voltage systems and security installations including alarm, fire and access control systems.

Advantages

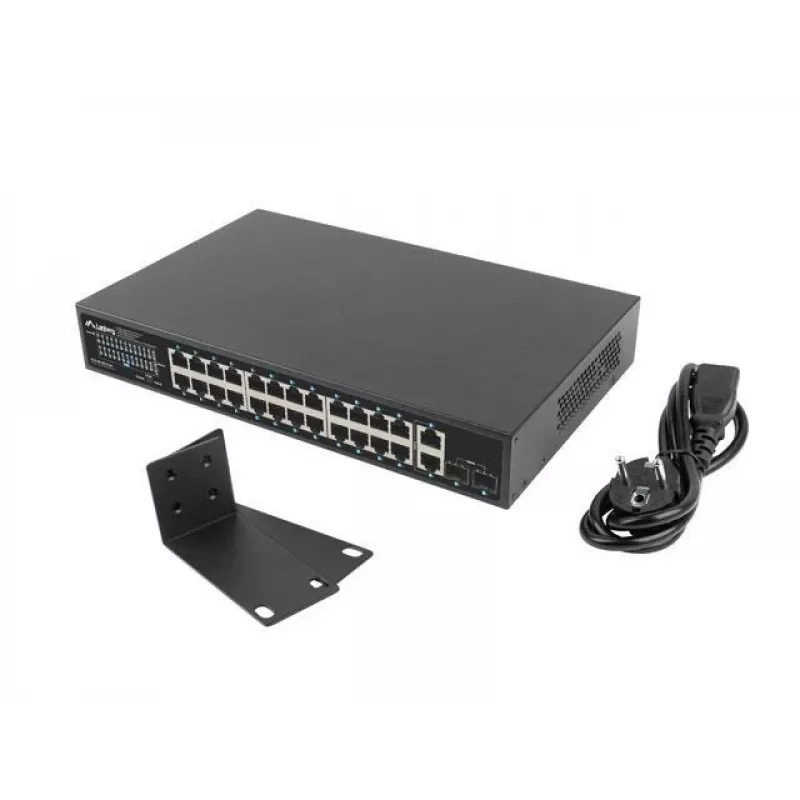

The switch delivers simultaneous data transfer and centralized PoE/PoE+ power distribution up to 360 W, reducing the need for separate power infrastructure and simplifying installation. It includes built-in surge protection rated to 4 kV for all ports, and a long-range PoE+ Extend mode that enables data (up to 10 Mbps) and power delivery on a single cable up to 250 m for ports 1–24. The device offers 24 PoE+ ports plus independent uplink ports for flexible traffic routing and recording distribution in surveillance systems. Rack-mount ears and mounting hardware are included for versatile installation.

Suitable for

• IP camera networks and NVR-based surveillance systems
• VoIP phones and IP communication devices
• Access control and alarm/fire panels requiring centralized PoE
• Small and medium business Ethernet networks
• Installations where endpoints lack nearby mains power or are outdoors

Key specifications

• Model: RSGE-24P-2GE-2S-360
• Type: Unmanaged switch
• Ports: 24 x Gigabit RJ-45 PoE+ (802.3af/at), 2 x Gigabit RJ-45 uplink, 2 x Gigabit SFP uplink
• Total PoE budget: 360 W
• PoE modes supported: IEEE 802.3af and IEEE 802.3at
• Long-range PoE: PoE+ Extend mode up to 250 m (data up to 10 Mbps) on ports 1–24
• Surge protection: 4 kV on all ports
• Maximum simultaneous standard connections: 24 x 802.3af (max 15 W/port) or 12 x 802.3at (max 30 W/port)

How to use

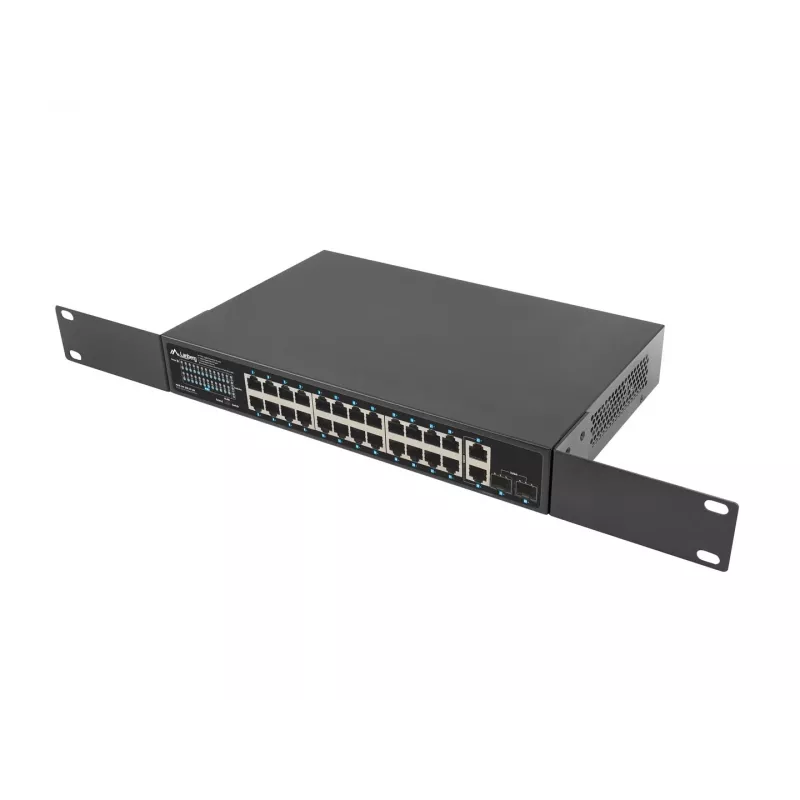

Install the switch in a rack or on a flat surface using the supplied mounting ears and screws. Connect uplink ports (RJ-45 or SFP) to your core network or recording device and attach PoE-powered devices to the 24 RJ-45 PoE+ ports. Enable PoE+ Extend 250 m mode by toggling the switch on the housing when longer cable runs (up to 250 m) are required; note that in Extend mode data rate is limited to 10 Mbps. No configuration is required for basic operation; the unmanaged switch works in plug-and-play mode.

Recommendations

To keep critical devices powered continuously, connect them to the lowest-numbered PoE ports. When the total PoE demand exceeds the available budget, the switch will sequentially disable higher-numbered PoE ports until the power budget is within limits. For typical installations keep cable runs under 100 m unless PoE+ Extend is explicitly required, and ensure total required PoE power does not exceed 360 W.
