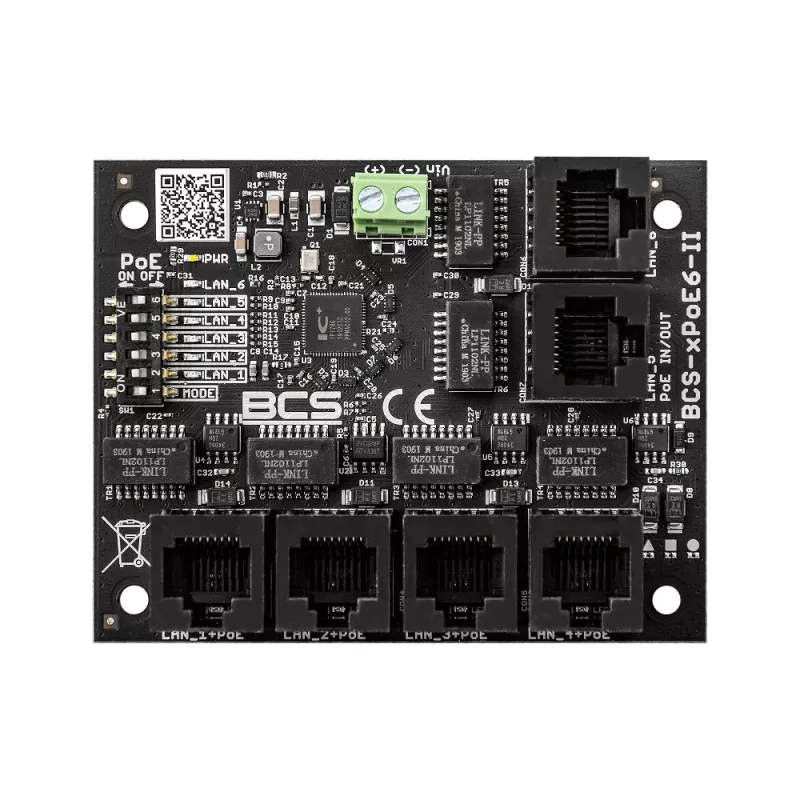

BCS-xPoE6-II Switch PoE+ não gerido, 6 portas (4 PoE), orçamento 60W, secretária/metal

The BCS-xPoE6-II is a compact and reliable unmanaged PoE+ switch designed for small to medium-sized networks. With 4 PoE+ ports and a total power budget of 60W, it provides both data and power to devices such as IP cameras, VoIP phones, and wireless access points. The metal housing and desktop/wall-mount design make it suitable for various environments.

Advantages

This switch offers plug-and-play installation with no configuration required. It supports IEEE 802.3af/at PoE standards, delivering up to 30W per port. The fanless design ensures silent operation, and the robust metal housing provides durability. With ESD and surge protection, it safeguards connected equipment.

Suitable for

• Small offices and home networks
• Surveillance systems with PoE IP cameras
• VoIP phone deployments
• Wireless access point installations

Key specifications

• 6 Ethernet ports: 4 PoE+ (10/100Mbps) + 2 uplink (10/100Mbps)
• PoE standard: IEEE 802.3af/at
• Max PoE power per port: 30W
• Total PoE power budget: 60W
• Switching capacity: 1.2 Gbps
• Packet forwarding rate: 0.89 Mpps
• MAC address table: 1K entries
• Jumbo frame support: 2K Bytes
• Management: Unmanaged
• Power input: DC 52V / 1.25A (external adapter)
• Operating temperature: -10°C to 55°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 5% to 95% non-condensing
• Housing material: Metal
• Mounting: Desktop, wall-mount
• Protection: ESD 6KV, Surge 4KV
• LED indicators: Power, Link/Act, PoE Status

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure the total PoE power consumption of connected devices does not exceed 60W. This switch is ideal for expanding network connectivity in areas where power outlets are limited.
