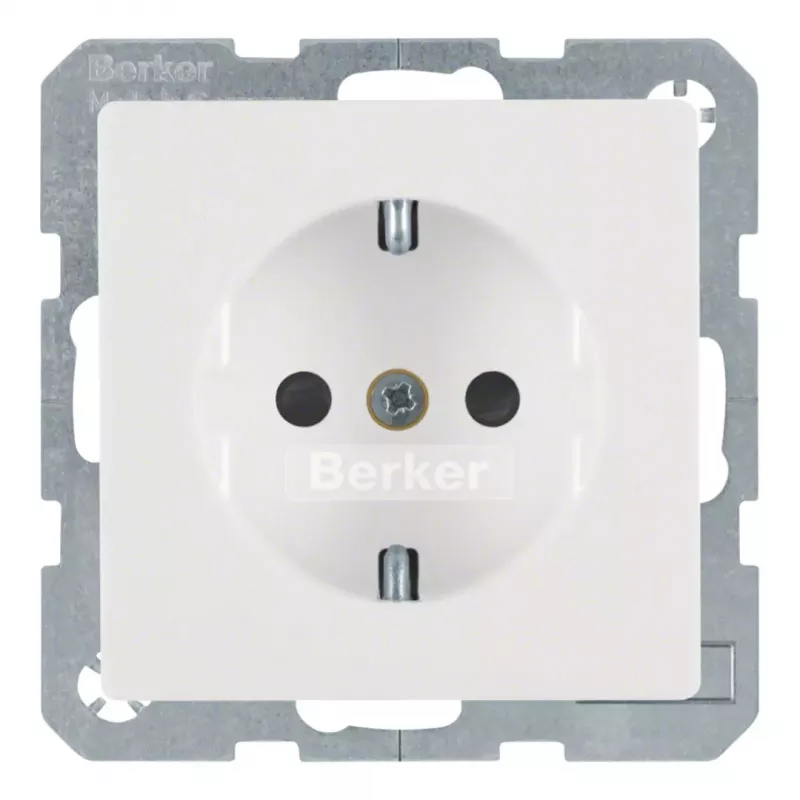

Berker 47236089 Tomada SCHUKO Berker Q.1 Branco Polar Velvet

The Berker 47236089 SCHUKO socket outlet from the Q.1 design line combines modern aesthetics with reliable functionality. Designed for flush mounting, this single-gang socket features a polar white velvet finish that adds a touch of elegance to any room. It is equipped with increased touch protection for child safety and is halogen-free, making it a safe choice for residential and commercial installations.

Advantages

High-quality thermoplastic material ensures durability and long service life. The screw terminals allow for secure and easy connection of rigid conductors from 1.5 to 2.5 mm². The velvet surface is scratch-resistant and easy to clean, maintaining its pristine appearance over time.

Suitable for

• Residential living spaces, bedrooms, and hallways
• Commercial offices and meeting rooms
• Hotels and hospitality environments
• Any interior requiring a sleek, modern socket outlet

Key specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection type: Screw terminals
• Mounting type: Flush-mounted
• Material: Thermoplastic (PC/ABS)
• Colour: Polar white
• Finish: Velvet (matt)
• Design line: Berker Q.1
• Degree of protection: IP20
• Child protection: Yes (increased touch protection)
• Halogen-free: Yes
• RAL colour code: RAL 9010
• Terminal capacity (rigid): 1.5 - 2.5 mm²
• Number of poles: 2-pole + earth
• Installation depth (mechanism): 32 mm
• Overall depth (installed): approx. 42 mm
• Width (visible part): 71 mm
• Height (visible part): 71 mm

Recommendations

For a complete installation, pair this socket with a compatible Berker Q.1 frame and matching switches. Ensure the flush-mounted box has sufficient depth (at least 32 mm) to accommodate the mechanism. Professional installation by a qualified electrician is recommended.
