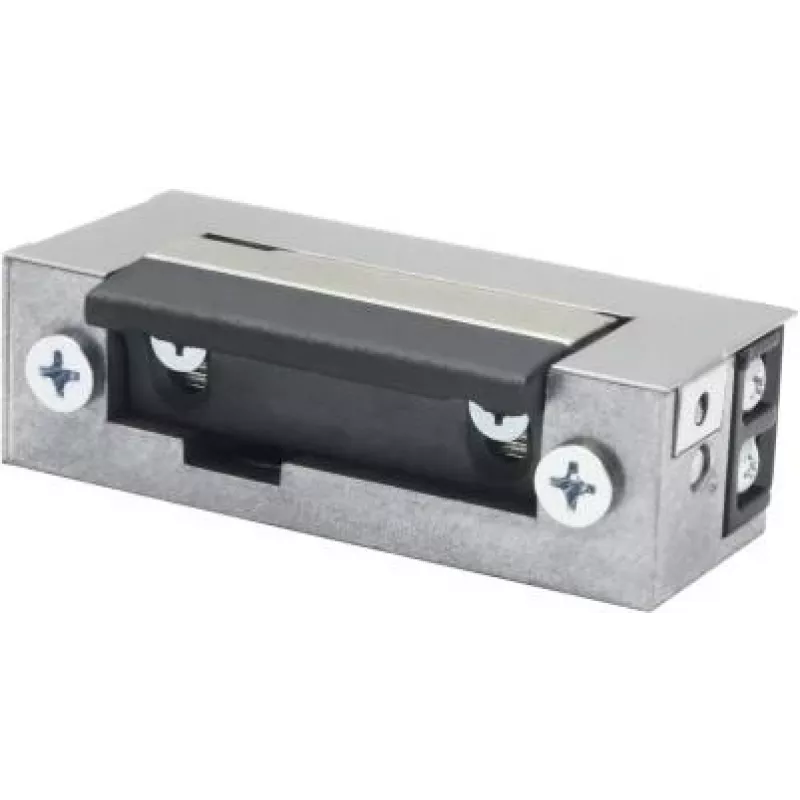

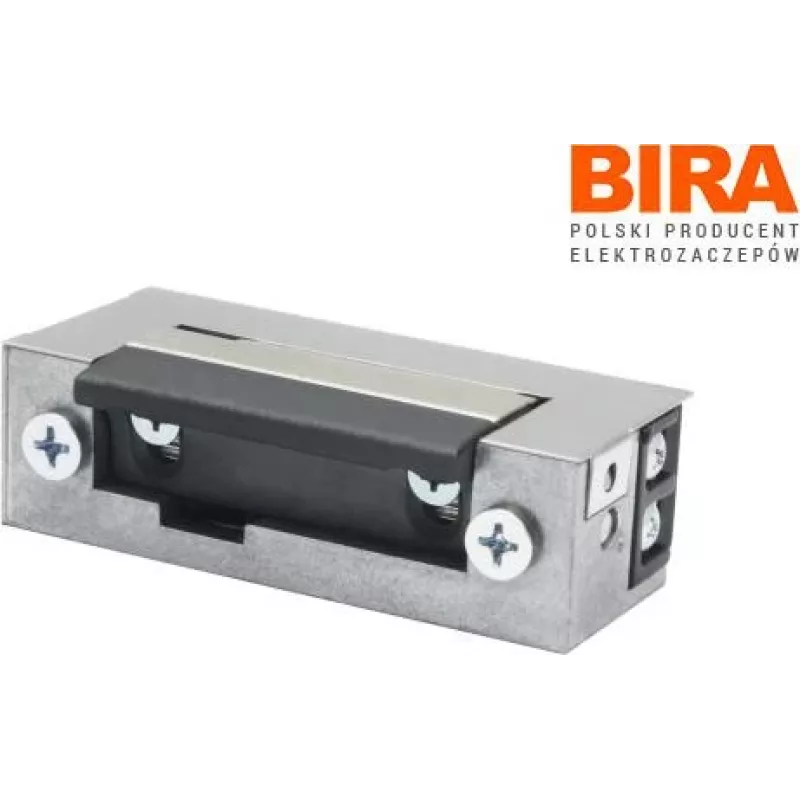

BIRA ES1-001 Abre-portas elétrico simétrico 12V AC/DC Basic

The BIRA ES1-001 is a high-quality symmetrical electric strike designed for standard doors, gates, and access control systems. Operating on 12V AC/DC, it provides reliable fail-secure locking with a holding force of 3000 N (approx. 300 kg). Its robust zinc alloy body and steel latch ensure durability and long service life, exceeding 300,000 cycles.

Advantages

This electric strike offers versatile installation with reversible handing, making it suitable for both left and right-handed doors. The fail-secure operation (normally open) ensures security during power loss. With low current consumption (250 mA AC / 300 mA DC), it is energy-efficient and compatible with most standard door locks and access control systems.

Suitable for

• Standard wooden and metal doors
• Access control systems in residential and commercial buildings
• Gate locking applications
• Retrofit installations requiring a symmetrical strike

Key specifications

• Product Type: Electric Strike
• Design: Symmetrical
• Operating Voltage: 12V AC/DC
• Current Consumption: 250 mA (AC), 300 mA (DC)
• Holding Force: 3000 N
• Operation Mode: Fail-secure (NO)
• Durability: >300,000 cycles
• Material: Zinc alloy body, steel latch
• Mounting Type: Mortise (recessed)
• Handing: Reversible
• Operating Temperature: -20°C to +50°C
• Protection Rating: IP20
• Adjustable Latch: No
• Memory Function: No
• Monitoring Contact: No

Recommendations

For optimal performance, ensure the strike is properly aligned with the door latch. Professional installation is recommended. This product is not suitable for high-security applications requiring monitoring or adjustable features.
