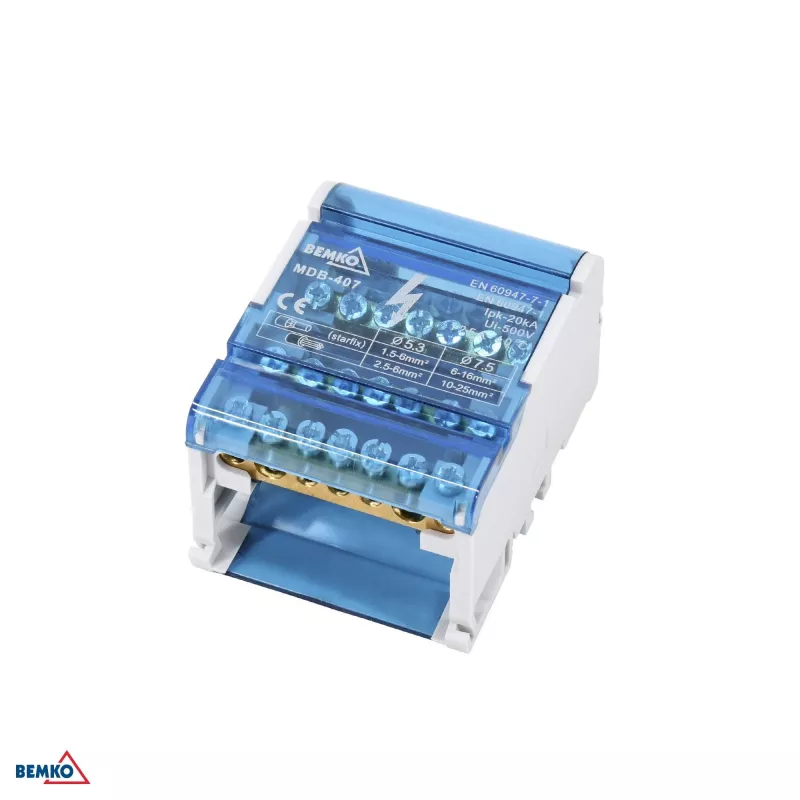

Bloco de distribuição SCHELINGER 28 terminais 4x7 (5x5,3mm + 2x7,5mm)

The SCHELINGER Distribution Block 28 Terminals 4x7 is a high-quality electrical distribution block designed for reliable power distribution in industrial and commercial applications. With 28 terminals arranged in 4 groups of 7, it accommodates wires up to 5.3 mm and 7.5 mm diameter, supporting cross-sections from 1.5 to 25 mm². Rated at 100 A and 500 V AC, this block ensures safe and efficient current distribution.

Advantages

This distribution block offers robust construction with brass conductors and polyamide insulation, providing excellent conductivity and durability. Its compact design saves space on DIN rails or screw mounting, while the grey color and IP20 protection class make it suitable for indoor use. The block is CE certified, ensuring compliance with European safety standards.

Suitable for

• Industrial control panels
• Power distribution systems
• Electrical cabinets and enclosures
• Commercial building installations

Key specifications

• Product Type: Distribution Block
• Number of Poles: 4
• Total Number of Terminals: 28
• Terminal Configuration: 4 x (5 x Ø5.3mm + 2 x Ø7.5mm)
• Small Terminal Wire Diameter: Up to 5.3 mm
• Large Terminal Wire Diameter: Up to 7.5 mm
• Small Terminal Wire Cross-Section: 1.5 - 10 mm²
• Large Terminal Wire Cross-Section: 6 - 25 mm²
• Rated Current: 100 A
• Rated Voltage: 500 V AC
• Conductor Material: Brass
• Insulation Material: Polyamide (PA)
• Mounting Type: DIN Rail (TH35) / Screw Mounting
• Color: Grey
• Protection Class: IP20
• Operating Temperature: -25°C to +70°C
• Certifications: CE

Recommendations

For optimal performance, ensure proper wire stripping and secure tightening of terminals. Use appropriate cable lugs for larger cross-sections. This distribution block is ideal for new installations or retrofitting existing systems.
