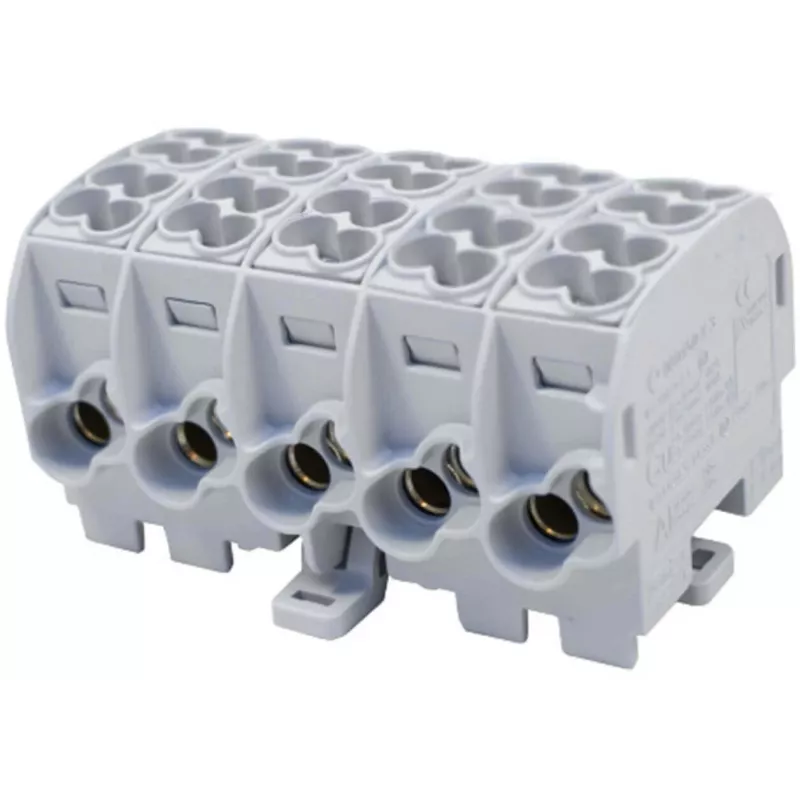

Bloco de distribuição SIMET SIMBLOCK SCB 25-5X Al/Cu entrada 1x25mm² saída 5x1,5-16mm² cinzento

The SIMET SIMBLOCK SCB 25-5X is a high-quality electrical distribution block designed for reliable power distribution in industrial and commercial installations. It accommodates aluminum and copper conductors, offering a main input cross-section of 1 x 25 mm² and five branch outputs ranging from 1.5 to 16 mm². Rated for AC 690 V and DC 1000 V, with a main current of 100 A and branch current of 63 A, this block ensures safe and efficient energy distribution.

Advantages

Versatile conductor compatibility (Al/Cu), high current rating, compact DIN rail or screw mounting, halogen-free and self-extinguishing housing for enhanced safety, and compliance with PN-EN 60947-7-1 standards.

Suitable for

• Industrial control panels
• Power distribution boards
• Electrical installations requiring multiple branch circuits
• Renewable energy systems (solar, wind)

Key specifications

• Product Type: Electrical Distribution Block
• Number of Poles: 1
• Main Input Conductor Cross-section: 1 x 25 mm²
• Branch Output Conductor Cross-section: 5 x 1.5 - 16 mm²
• Conductor Material Compatibility: Aluminum (Al), Copper (Cu)
• Rated Voltage (AC): 690 V
• Rated Voltage (DC): 1000 V
• Rated Current (Main): 100 A
• Rated Current (Branch): 63 A
• Mounting Type: DIN Rail (TS35), Screw Mount
• Color: Grey (RAL 7035)
• Housing Material: Polyamide (PA6), Halogen-free, Self-extinguishing
• Terminal Material: Tinned Copper
• Protection Degree (IP): IP20
• Operating Temperature Range: -25°C to +80°C
• Standards: PN-EN 60947-7-1
• Number of Connections: 1 input, 5 outputs

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer guidelines. Suitable for use in dry indoor environments. Always follow local electrical codes.
