BlueLAN BL070701W1M30 Cabo Direct Attach QSFP56, 200GBASE-CR4, 30AWG, 1 Metro, compatível com NVIDIA 980-9I54C-00V001

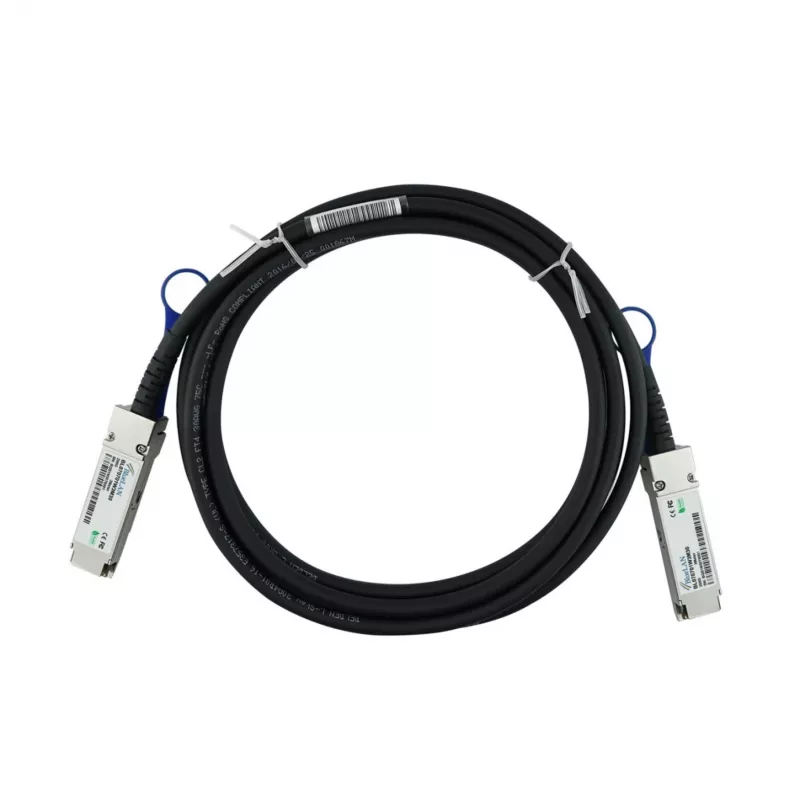

The BlueLAN BL070701W1M30 is a high-performance QSFP56 Direct Attach Cable (DAC) designed for 200 Gbps data transmission. This passive copper cable complies with the 200GBASE-CR4 standard and is compatible with NVIDIA 980-9I54C-00V001 network equipment. With a length of 1 meter and 30 AWG wire gauge, it provides a reliable, low-latency interconnect for data centers and high-performance computing environments.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range high-speed connections. Its passive design requires no external power, reducing overall power consumption. The QSFP56 form factor supports four lanes of 50 Gbps each, delivering aggregate 200 Gbps bandwidth. The cable is fully compliant with RoHS, CE, and FCC standards, ensuring environmental and regulatory compliance.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network switches and routers
• Server-to-switch connections

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: QSFP56 to QSFP56
• Data Rate: 200 Gbps
• Ethernet Standard: 200GBASE-CR4
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Material: Passive Copper
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Jacket Material: PVC
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, pair this cable with compatible NVIDIA QSFP56 ports. Ensure proper cable management to maintain signal integrity. This passive DAC is ideal for in-rack connections up to 1 meter.
