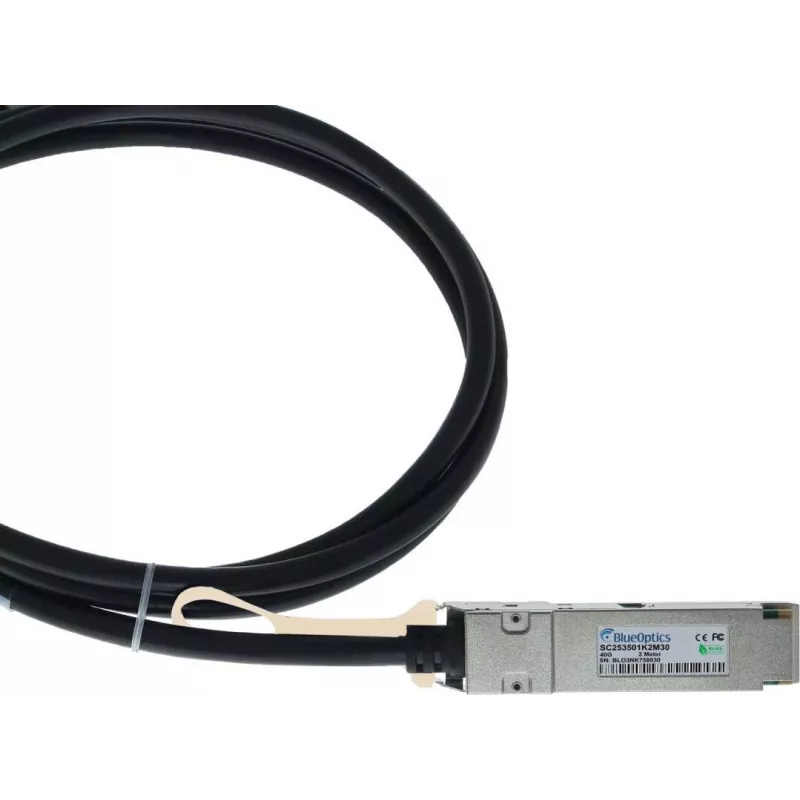

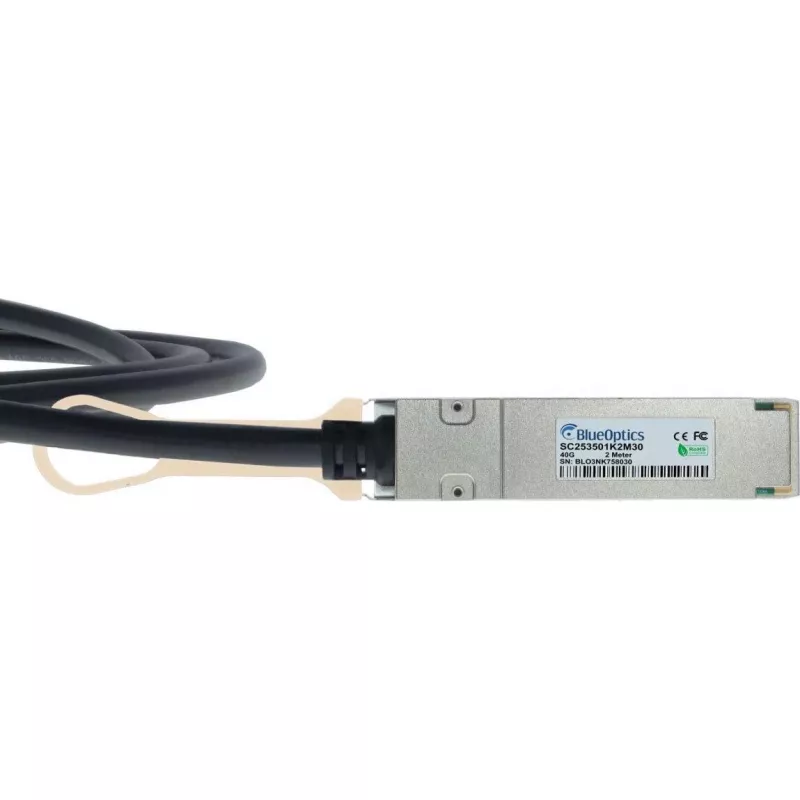

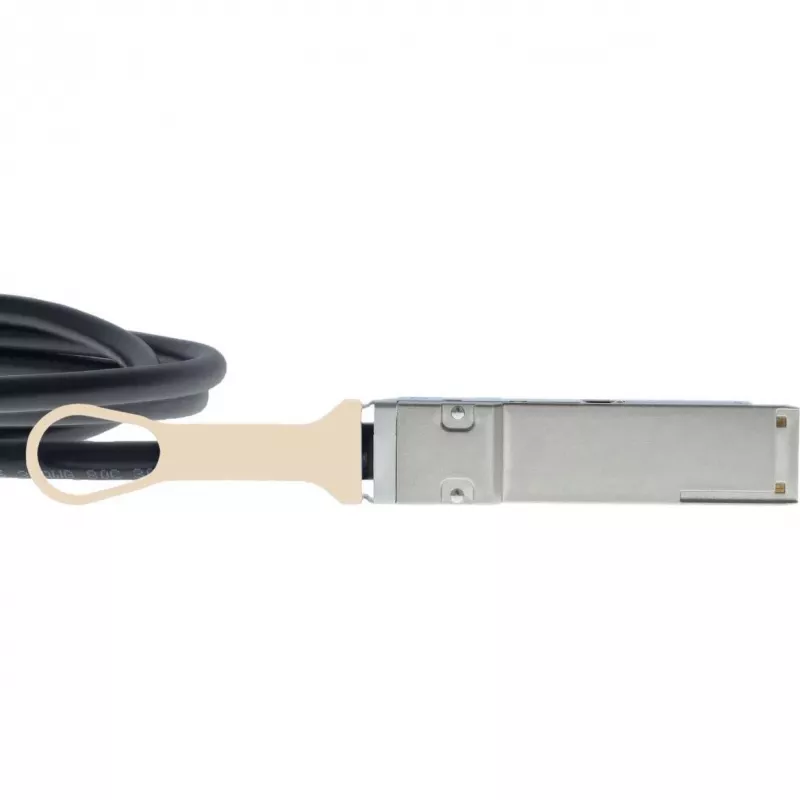

BlueLAN Cabo breakout Direct Attach passivo 40G QSFP+ para 4x10G SFP+, 2m, AWG30, compatível com NVIDIA (MCC1V30A-002-BL)

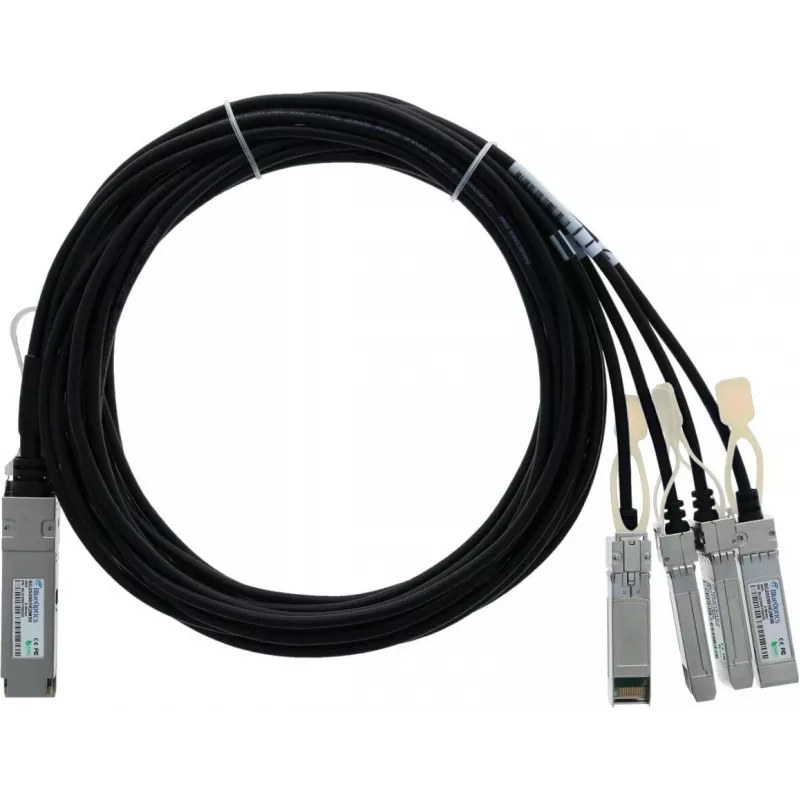

In high-density data centers and HPC clusters, network engineers use the BlueLAN MCC1V30A-002-BL to connect a 40G QSFP+ port to four separate 10G SFP+ ports. This 2-meter passive direct attach breakout cable splits a single 40GBASE-CR4 link into four 10GBASE-CR channels, eliminating the need for separate transceivers and reducing cabling complexity.

Key specifications

• Cable type: Direct Attach Cable (DAC)
• Configuration: Breakout cable
• Length: 2 m
• Connector A: QSFP+ (40G)
• Connector B: 4x SFP+ (10G each)
• Aggregate data rate: 40 Gbps
• Per-lane data rate: 10 Gbps
• Standards: 40GBASE-CR4 to 4x 10GBASE-CR
• Design: Passive
• Wire gauge: AWG30
• Material: Copper twinax
• Impedance: 100 Ohm
• Protocol: Ethernet
• Hot-pluggable: Yes
• Compatibility: NVIDIA MCC1V30A-002

Why choose it

Passive DAC cables consume no power and introduce near-zero latency, making them ideal for short-reach interconnects within racks or adjacent racks. The breakout design allows you to connect a 40G switch port to four 10G servers or storage devices using a single cable, saving space and simplifying cable management. The 30 AWG copper twinax construction offers a balance of flexibility and signal integrity for 2-meter runs.

Ideal use cases

• Linking 40G QSFP+ switch ports to multiple 10G SFP+ servers or storage arrays.
• High-performance computing clusters requiring low-latency, high-bandwidth interconnects.
• Data center top-of-rack to end-of-row aggregation.
• Environments where optical transceivers are cost-prohibitive for short distances.

Good to know

This cable is compatible with NVIDIA MCC1V30A-002 specifications and is hot-pluggable, allowing for easy installation and replacement without downtime. It supports Ethernet protocol and is designed for passive operation, requiring no additional power source.
