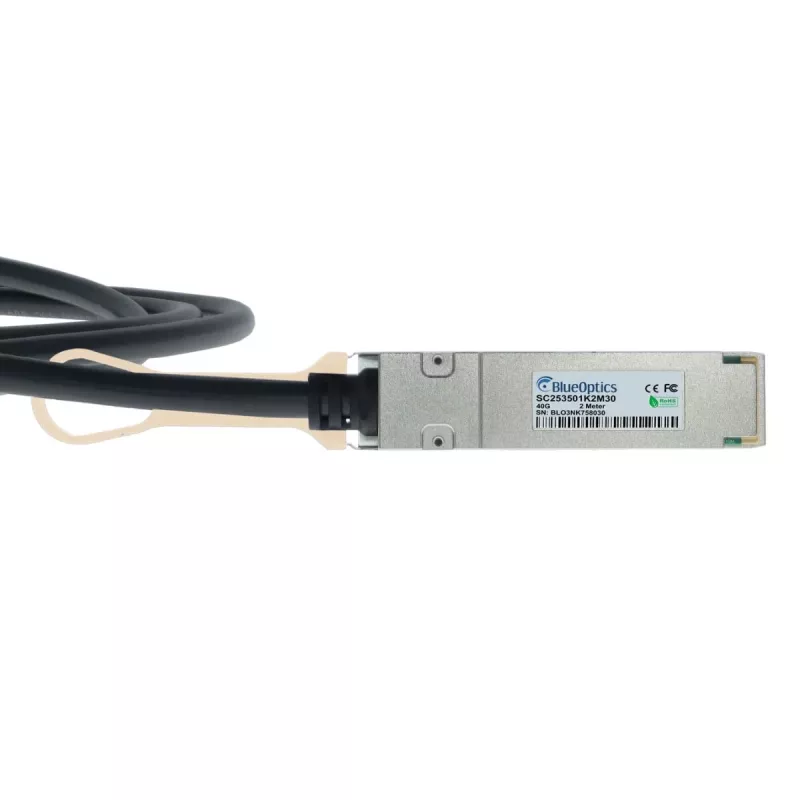

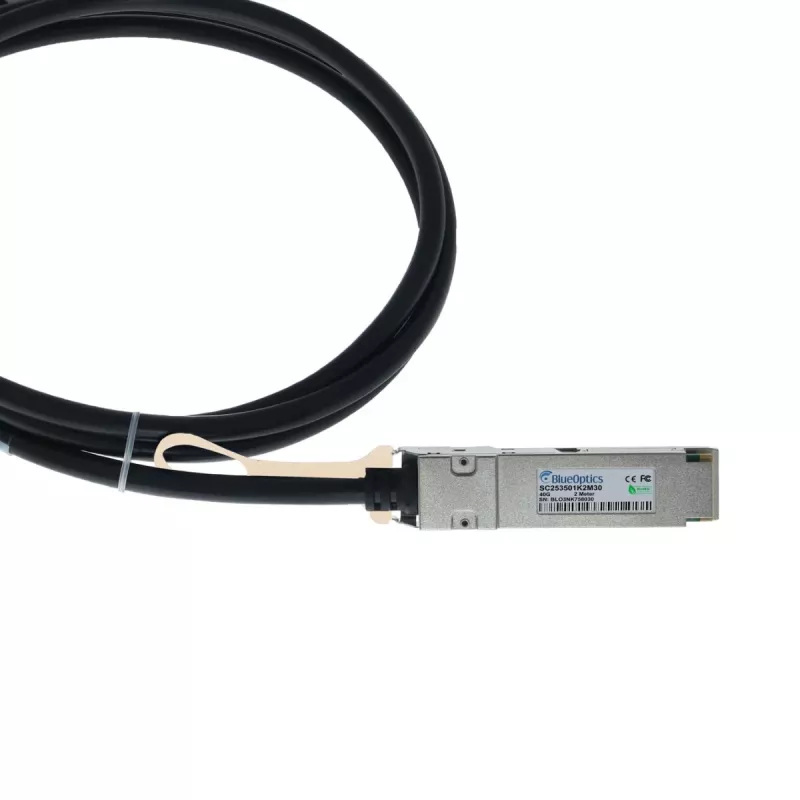

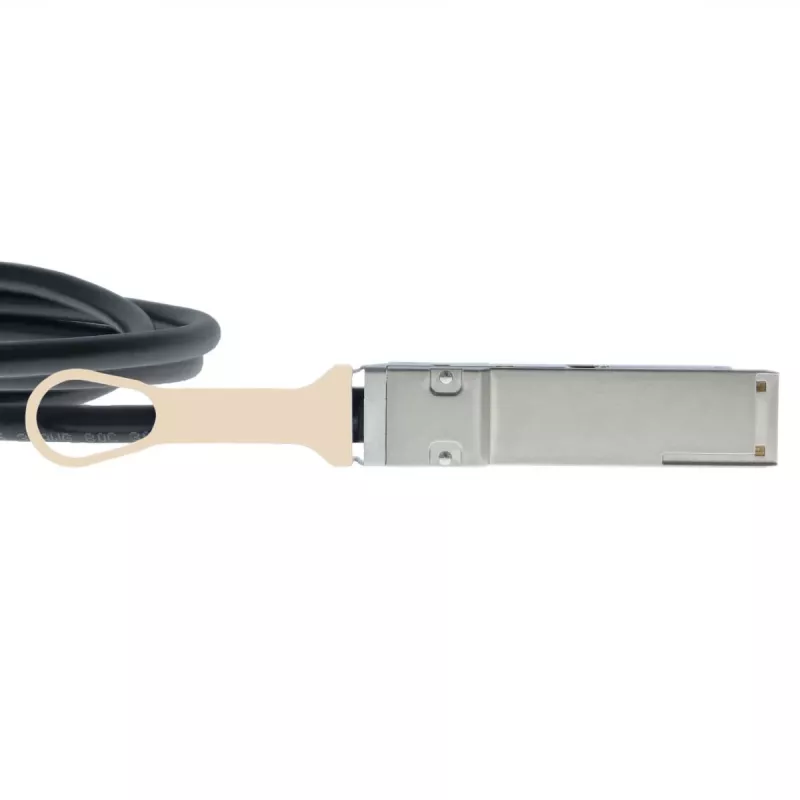

BlueOptics cabo BlueLAN QSFP DAC SC253501K1M30 compatível com Ruckus 40G-QSFP-4SFP-C-0101

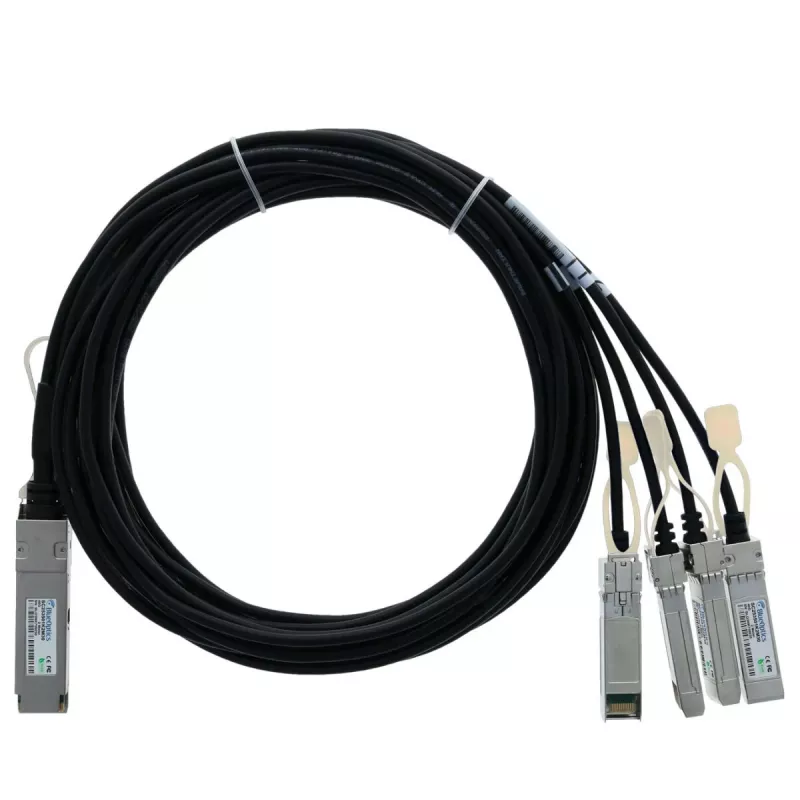

The BlueOptics Ruckus 40G-QSFP-4SFP-C-0101 compatible BlueLAN QSFP DAC SC253501K1M30 is a high-performance direct attach copper (DAC) breakout cable designed for 40 Gigabit Ethernet networks. It provides a cost-effective and reliable solution for connecting a 40G QSFP+ port to four 10G SFP+ ports over a short distance of 1 meter.

Advantages

This passive copper cable offers low power consumption (<0.5W) and hot-pluggable convenience, making it ideal for high-density data center environments. The breakout configuration simplifies cabling and reduces costs compared to using separate transceivers and fiber optic cables.

Suitable for

• Data centers requiring high-speed 40G to 10G connectivity
• Ruckus networking equipment with QSFP+ and SFP+ ports
• Short-distance interconnects within racks or between adjacent racks

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Connector A: QSFP+
• Connector B: 4x SFP+
• Aggregate Data Rate: 40 Gbps
• Per Lane Data Rate: 10 Gbps
• Breakout Configuration: 1x 40G QSFP+ to 4x 10G SFP+
• Cable Length: 1 meter
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Cable Jacket Material: PVC
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards Compliance: SFF-8436, SFF-8431, IEEE 802.3ba, RoHS, CE, FCC
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure that both the QSFP+ and SFP+ ports on your Ruckus equipment support the breakout functionality. This cable is fully compatible with Ruckus 40G-QSFP-4SFP-C-0101 interfaces.
