Cabo breakout de ligação direta BlueLAN 40GBASE-CR4 QSFP+ para 4x10GBASE-CR SFP+, 3m, cobre passivo, AWG30, compatível com Extreme Networks AA1404035-E6

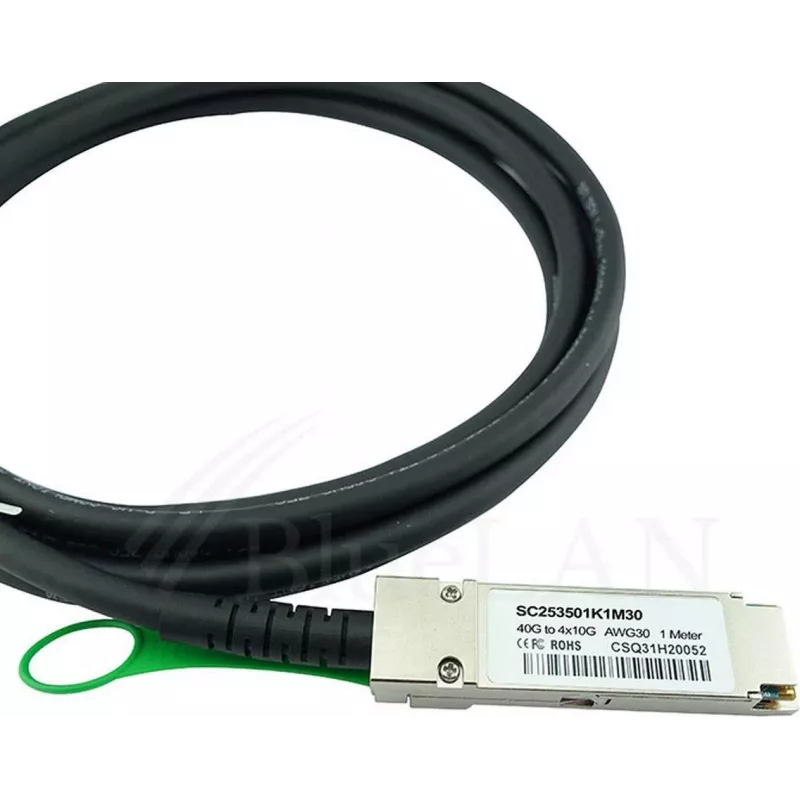

The BlueLAN AA1404035-E6-BL is a high-performance passive copper direct attach breakout cable (DAC) designed for compatibility with Extreme Networks equipment. It provides a cost-effective and reliable solution for connecting 40 Gbps QSFP+ ports to four 10 Gbps SFP+ ports, ideal for data center and high-performance computing environments.

Advantages

This breakout cable eliminates the need for separate transceivers and fiber cabling, reducing cost and complexity. It offers low power consumption (<0.1W), hot-swappable capability, and full compliance with RoHS, CE, and FCC standards. The passive design ensures zero latency and high signal integrity over the 3-meter length.

Suitable for

• Data center interconnect
• Server-to-switch connections
• High-performance computing (HPC) clusters
• Network upgrades requiring 40G to 10G migration

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Connector A: QSFP+
• Connector B: 4x SFP+
• Aggregate Data Rate: 40 Gbps
• Individual Lane Data Rate: 10 Gbps
• Cable Length: 3 meters
• Cable Type: Passive Copper
• Wire Gauge: AWG30
• Standards: 40GBASE-CR4 (QSFP+ end), 4x 10GBASE-CR (SFP+ end)
• Impedance: 100 Ohm
• Hot Swappable: Yes
• Power Consumption: <0.1W
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both the QSFP+ and SFP+ ports are compatible with passive DAC cables. This cable is an ideal choice for short-distance, high-bandwidth connections within racks or adjacent racks.
