BlueOptics Hikvision HK-SFP-1.25G-20-1550 BO15C5531620D Transceptor SFP, LC-Simplex, 1000BASE-BX-D, Fibra Monomodo, TX1550nm/RX1310nm, 10 km

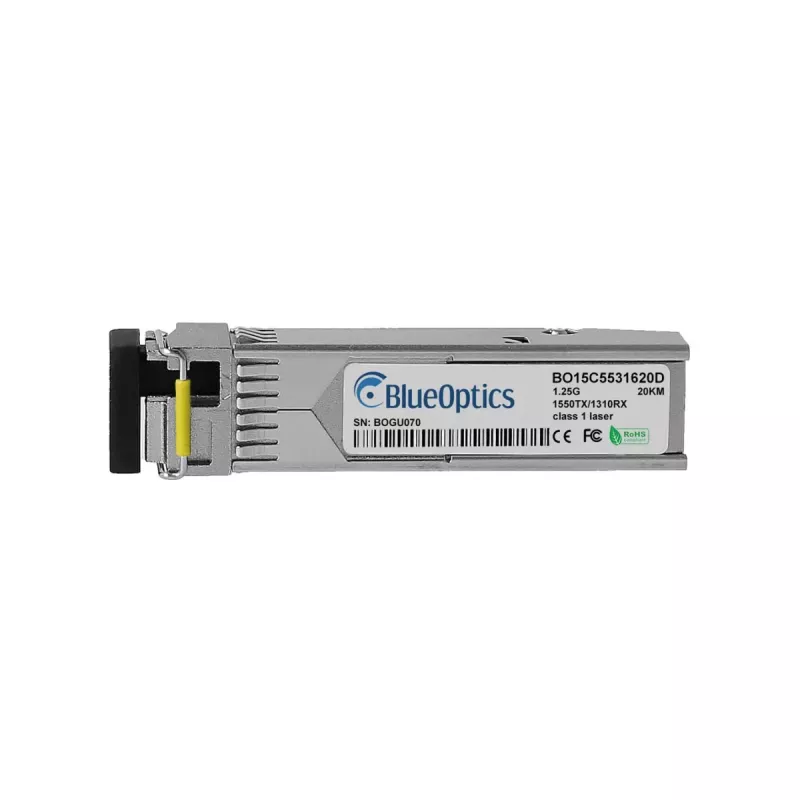

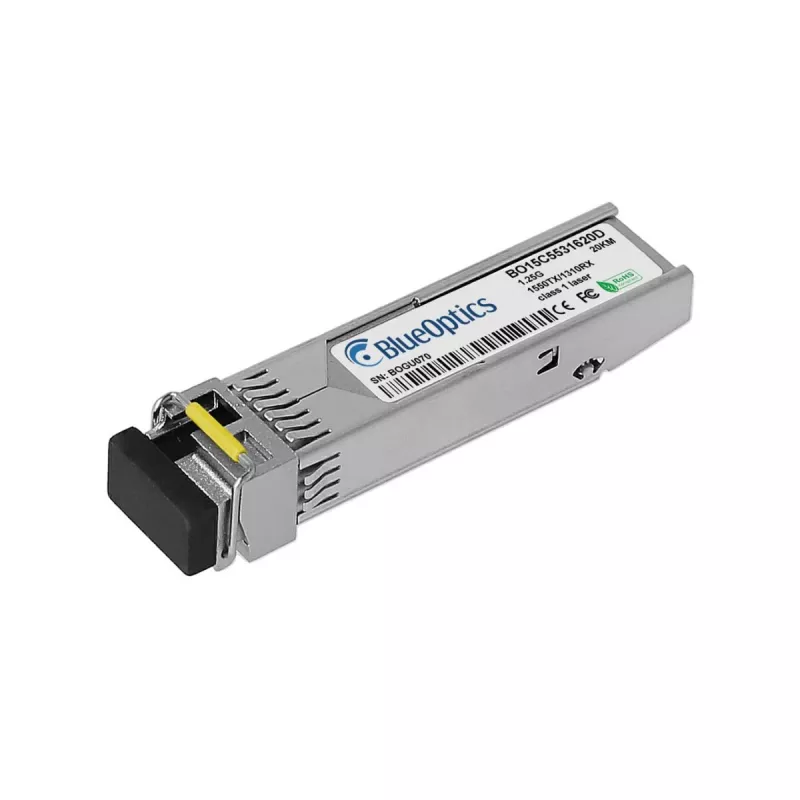

The BlueOptics Hikvision HK-SFP-1.25G-20-1550 (BO15C5531620D) is a high-performance SFP transceiver designed for Gigabit Ethernet networks. It operates on singlemode fiber with a simplex LC connector, supporting 1000BASE-BX-D standard. This transceiver transmits at 1550nm and receives at 1310nm, enabling bi-directional communication over a single fiber strand up to 10km.

Advantages

This transceiver offers reliable, hot-pluggable connectivity with digital diagnostics monitoring (DDM) for real-time performance tracking. It is MSA compliant, ensuring interoperability with a wide range of networking equipment, and is specifically compatible with Hikvision devices.

Suitable for

• Gigabit Ethernet networks requiring long-distance singlemode fiber connections
• Hikvision surveillance systems and other IP-based applications
• Point-to-point fiber links in enterprise, data center, and telecom environments

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-BX-D
• Connector: LC Simplex
• Fiber Type: Singlemode (SMF)
• Wavelength: TX 1550nm / RX 1310nm
• Maximum Reach: 10 km
• Duplex Mode: Simplex (Bi-directional)
• Hot-Swappable: Yes
• DDM: Yes
• MSA Compliant: Yes
• Power Supply Voltage: 3.3 V

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure compatibility with your switch or media converter. This transceiver is a direct replacement for Hikvision HK-SFP-1.25G-20-1550 modules.
