BlueOptics Huawei 02311DTR Transceptor QSFP compatível, 40GBASE-PLR4, fibra monomodo, 1310nm, 10km, MPO/MTP, 0°C a +70°C (02311DTR-BO)

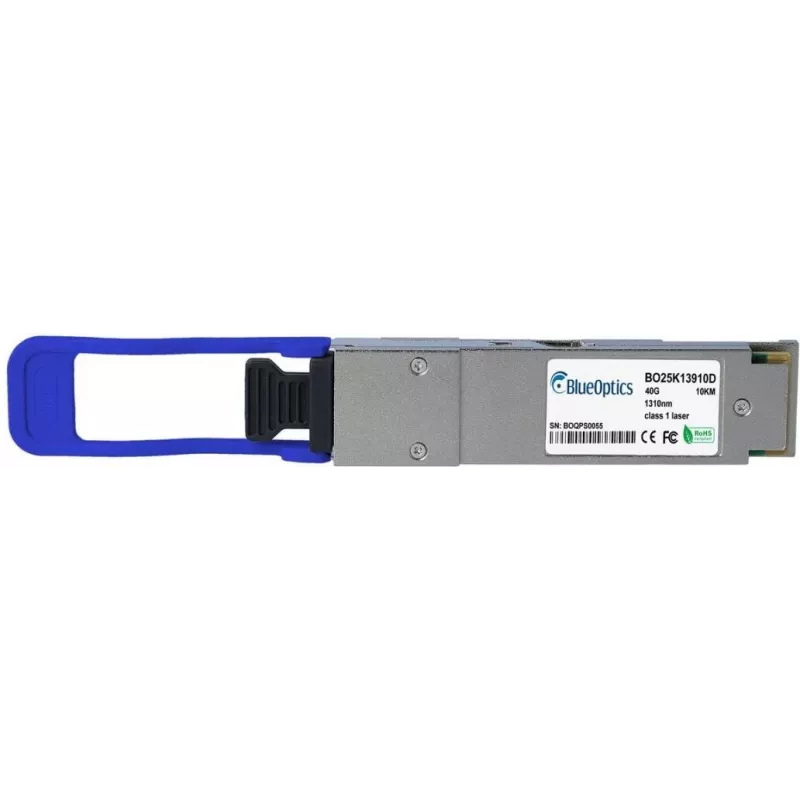

The BlueOptics 02311DTR-BO is a high-performance QSFP transceiver designed for 40 Gigabit Ethernet networks. It is fully compatible with Huawei 02311DTR equipment and delivers reliable connectivity over singlemode fiber at distances up to 10 km. This hot-pluggable module features an MPO/MTP connector and supports digital diagnostics monitoring (DDM) for real-time performance tracking.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility and performance. Low power consumption (3.3V) and robust design ensure long-term reliability in demanding environments. RoHS compliant and built to industry standards.

Suitable for

• Data center interconnects
• Enterprise networking
• Telecommunications
• High-speed backbone links

Key specifications

• Transceiver Type: QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-PLR4
• Wavelength: 1310 nm
• Fiber Type: Singlemode (OS2)
• Max Reach: 10 km
• Connector Type: MPO/MTP
• Operating Temperature: 0°C to +70°C
• Hot-Pluggable: Yes
• DDM: Yes
• Power Supply: 3.3V
• Compliance: RoHS

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure proper cleaning of MPO connectors. This module is ideal for 40G uplinks in enterprise and data center networks.
