BlueOptics Planet MGB-2GSR BO05EE856S5D Transceptor SFP, 2.5GBASE-SX, LC-Duplex, Fibra Multimodo, 850nm, 300m, DDM, 0°C a +70°C

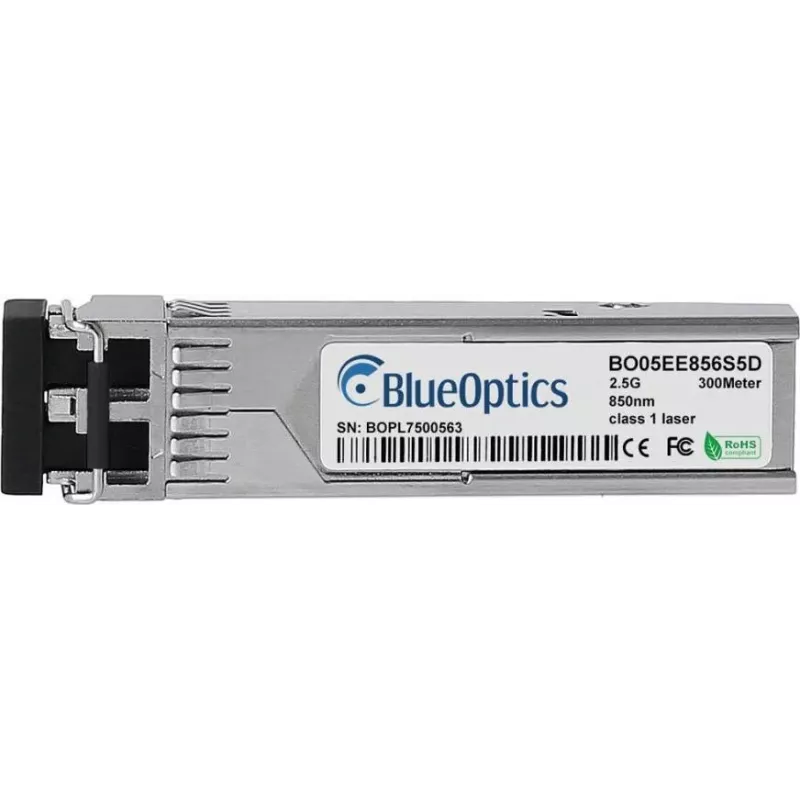

The BlueOptics Planet MGB-2GSR BO05EE856S5D SFP Transceiver is a high-performance, hot-pluggable SFP module designed for 2.5GBASE-SX Ethernet applications. It operates over multimode fiber (MMF) at 850nm wavelength, supporting distances up to 300 meters. With Digital Diagnostic Monitoring (DDM) and a wide operating temperature range of 0°C to +70°C, this transceiver ensures reliable and efficient network connectivity. Fully compatible with Planet MGB-2GSR switches and other MSA-compliant equipment.

Advantages

Cost-effective and reliable SFP transceiver for 2.5G Ethernet networks. Supports DDM for real-time monitoring of optical parameters. Hot-pluggable design allows for easy installation and replacement without network downtime. Compliant with MSA standards, ensuring interoperability with a wide range of networking equipment.

Suitable for

• Enterprise and data center networks requiring 2.5G connectivity over multimode fiber
• Upgrading existing 1G networks to 2.5G for increased bandwidth
• Short-range fiber optic links up to 300 meters
• Planet MGB-2GSR switches and other MSA-compliant devices

Key specifications

• Transceiver Type: SFP
• Data Rate: 2.5 Gbps
• Ethernet Standard: 2.5GBASE-SX
• Connector Type: LC-Duplex
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Maximum Reach: 300 meters
• DDM/DOM Support: Yes
• Operating Temperature Range: 0°C to +70°C
• OEM Compatibility: Planet MGB-2GSR
• Form Factor: SFP
• Hot-Pluggable: Yes
• Duplex Mode: Duplex
• Compliance: MSA Compliant

Recommendations

For optimal performance, use with high-quality LC duplex patch cables and ensure proper fiber cleaning. This transceiver is ideal for short-reach 2.5G applications in enterprise networks.
