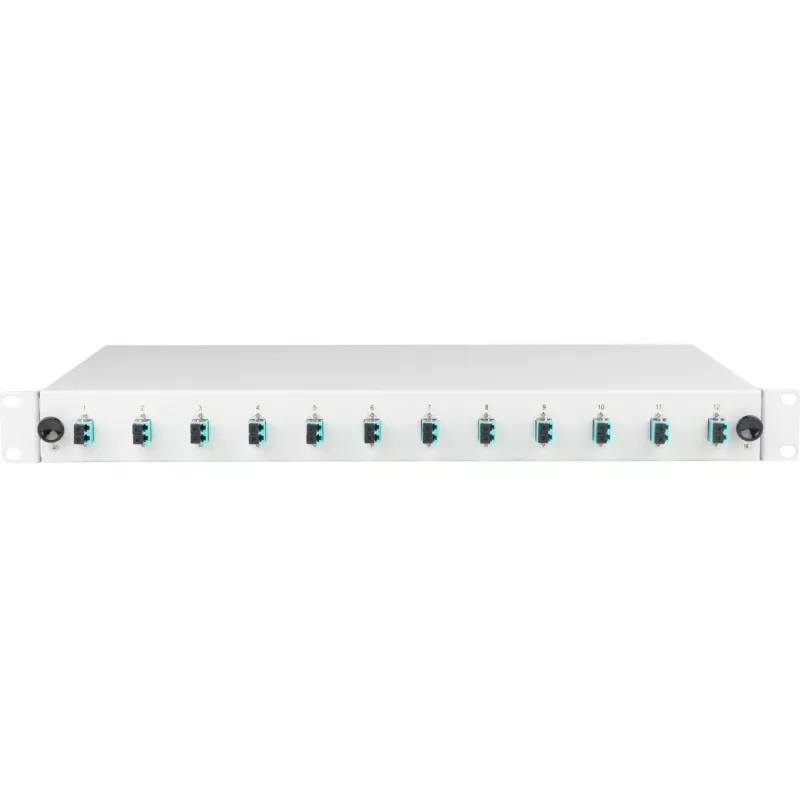

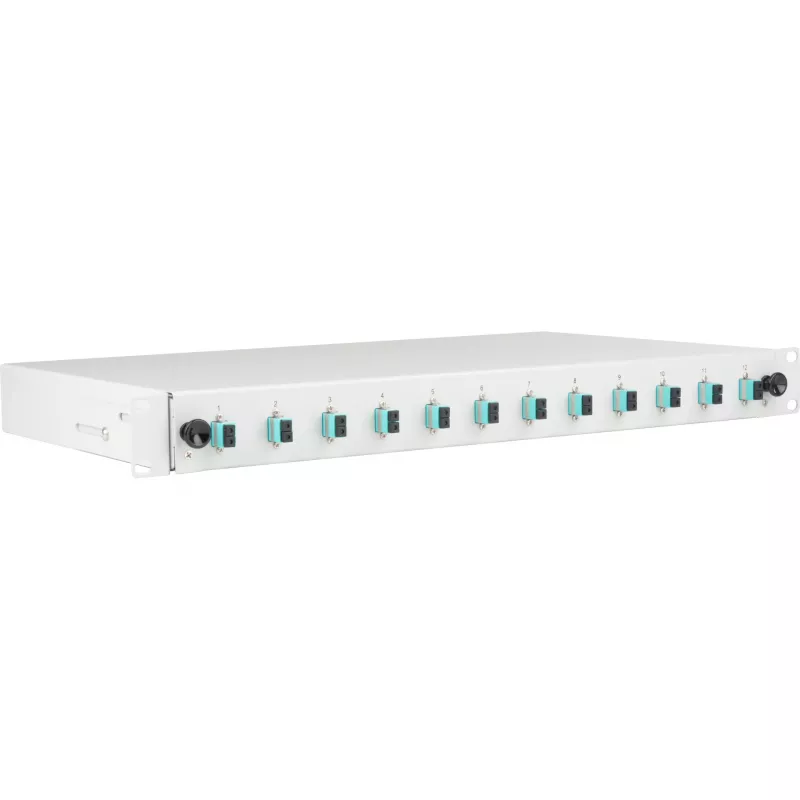

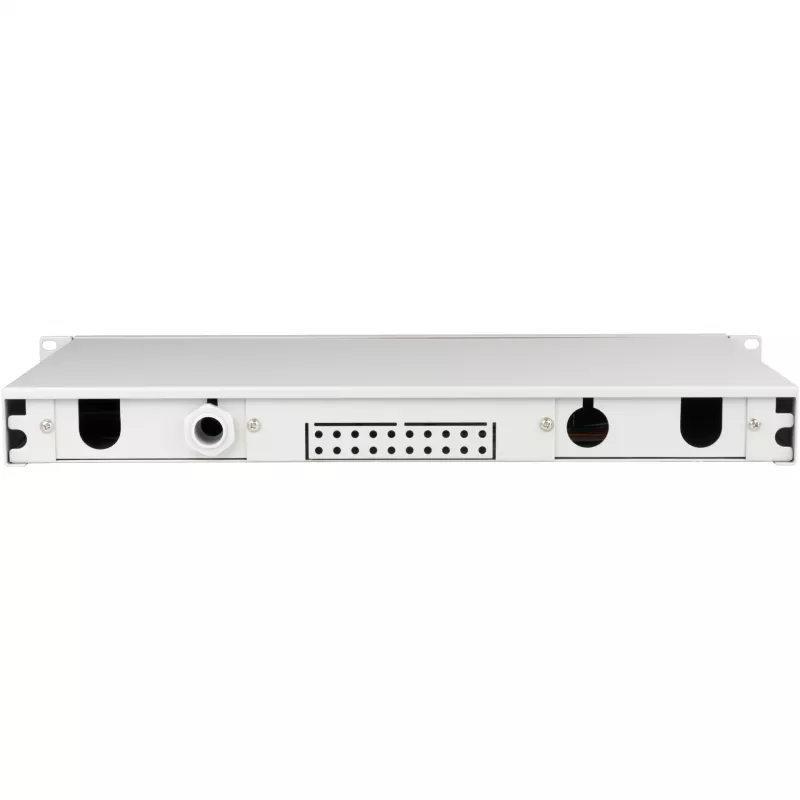

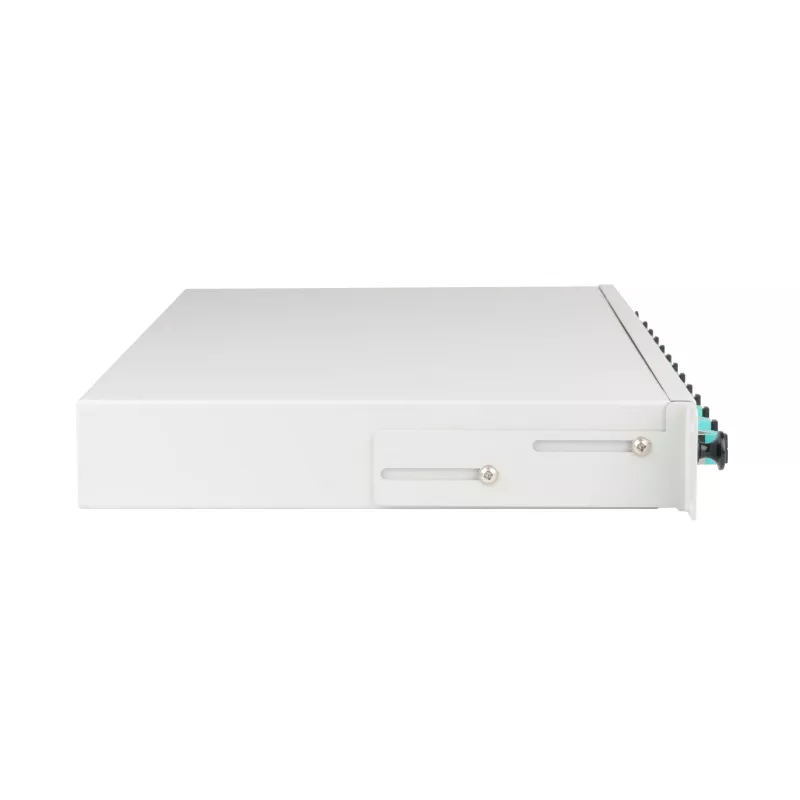

EFB Elektronik Caixa de fusão LC 50/125µ OM3 extraível 24 pigtails 12 conectores fêmea

Equipped with 24 LC pigtails and 12 LC duplex couplings, this 1U rack-mount splice box delivers a complete fiber management solution for OM3 multimode networks. The extendable drawer design allows full access to internal splice cassettes without disrupting adjacent rack components, making it ideal for high-density patching environments.

Overview

The EFB Elektronik B71901L24OM3 is a 19-inch rack-mountable splice box engineered for structured cabling systems. It houses 24 OM3 50/125µm pigtails terminated with LC connectors, paired with 12 LC duplex adapters on the front panel. The unit includes two splice cassettes and two cable glands, providing organized fiber routing and strain relief. The light grey steel housing (RAL 7035) ensures durability and a professional appearance in any data center or telecommunications room.

What stands out

• Extendable sliding tray for easy access during installation and maintenance
• Pre-installed 24 OM3 pigtails with 2-meter length for flexible splicing
• 12 LC duplex couplings support up to 24 fiber connections
• Includes splice cassettes and cable glands for complete setup
• 1U height optimizes rack space utilization

Technical details

• Product type: Fiber optic splice box / patch panel
• Mounting: 19-inch rack, 1U
• Fiber type: Multimode OM3 50/125µm
• Front connectors: 12 x LC duplex
• Pigtails: 24 x LC, 2 m length
• Housing material: Steel, light grey (RAL 7035)
• Included accessories: 2 splice cassettes, 2 cable glands, mounting hardware

Our verdict

This splice box combines high fiber density with practical accessibility, making it a reliable choice for professional fiber optic installations requiring OM3 performance.
