BUSCH-JAEGER tomada de assinante de fibra ótica 0244/22SC UP, SC Simplex, 2 portas, encastrar, branco alpino (2CKA000230A0487)

Two SC simplex ports in a single flush-mounted module make this BUSCH-JAEGER subscriber connection unit a compact termination point for FTTH and structured cabling. The universal fiber compatibility supports single-mode and multi-mode fibers, so one unit covers OS1/OS2 and OM1–OM4 installations.

Overview

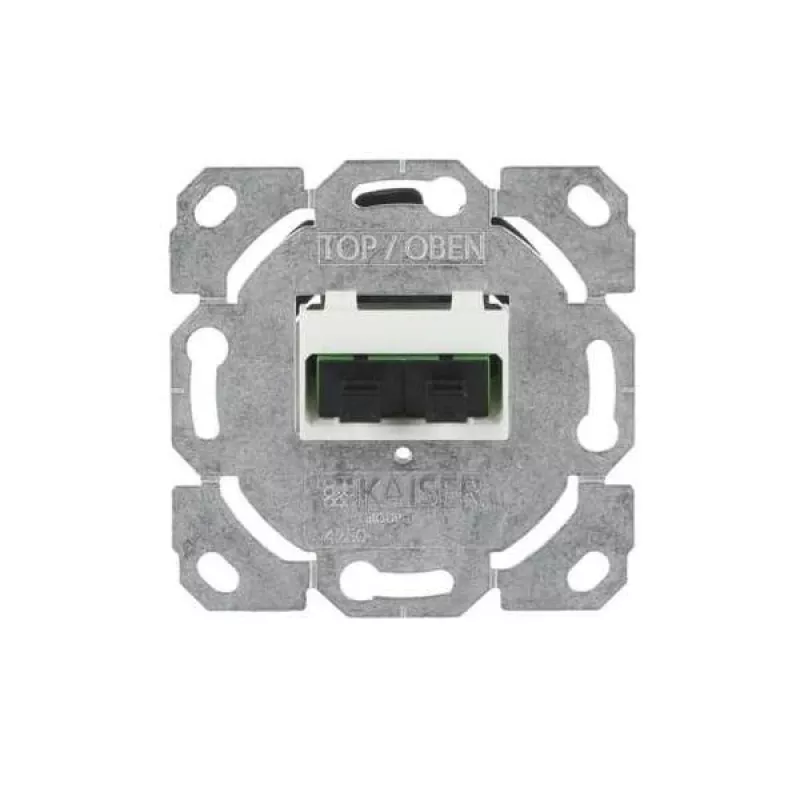

The BJ Glasfaser Teilnehmeranschluss 0244/22SC UP (2CKA000230A0487) is a flush-mounted fiber optic subscriber connection unit with two SC simplex connectors. It is designed for termination of fiber optic cables in residential and commercial FTTH applications, providing a clean interface between the incoming fiber and the subscriber's equipment. The unit is compatible with Busch-Jaeger switch ranges, allowing it to be integrated into existing installations with matching cover frames.

What stands out

• Two SC simplex ports in a single module
• Universal fiber compatibility: single-mode OS1/OS2 and multi-mode OM1/OM2/OM3/OM4
• Flush-mounted design for discreet installation
• Alpine white (RAL 9010) thermoplastic housing
• Includes splice holder and dust protection caps

Technical details

• Connector type: SC Simplex
• Number of ports: 2
• Mounting type: Flush-mounted (Unterputz)
• Fiber compatibility: Universal (single-mode OS1/OS2, multi-mode OM1/OM2/OM3/OM4)
• Colour: Alpine white (RAL 9010)
• Material: Thermoplastic (PC/ABS)
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Relative humidity: 5% to 95% (non-condensing)
• Cable entry: Rear
• Termination method: Splice or mechanical splice (for pigtails)
• Number of modules: 1
• Design compatibility: Busch-Jaeger switch ranges (future® linear, alpha, carat, solo)

Our verdict

A straightforward, reliable fiber termination point for FTTH installations. The universal fiber support and flush-mount design make it a flexible choice for both new builds and retrofits, especially when paired with Busch-Jaeger cover frames.
