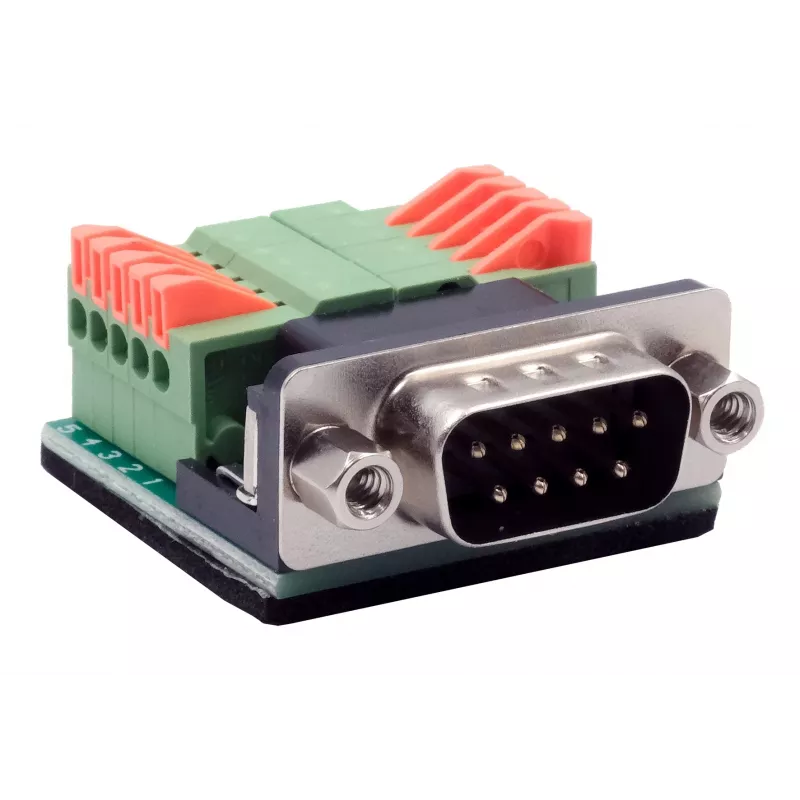

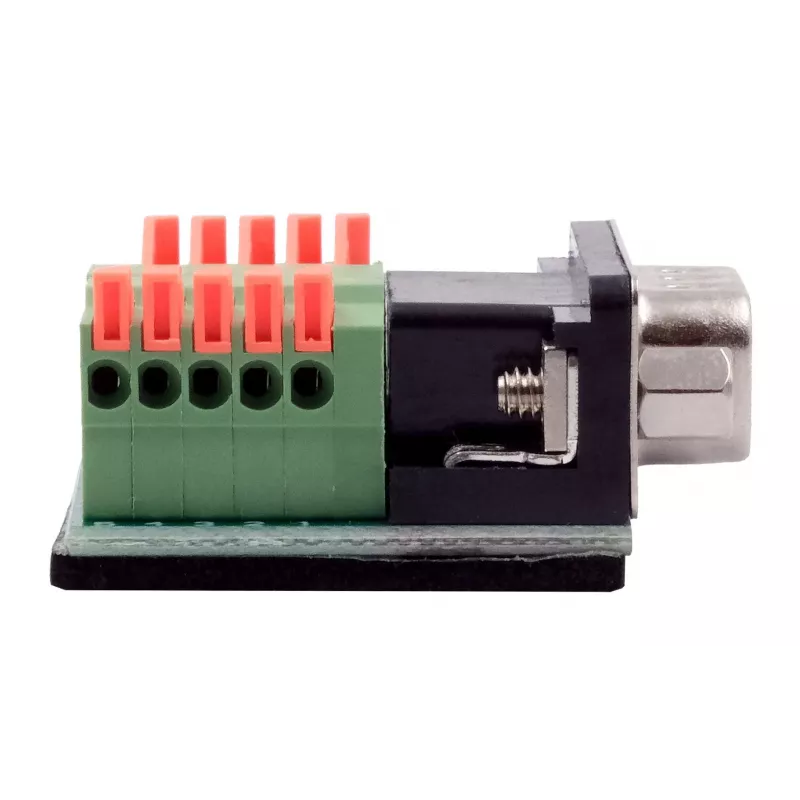

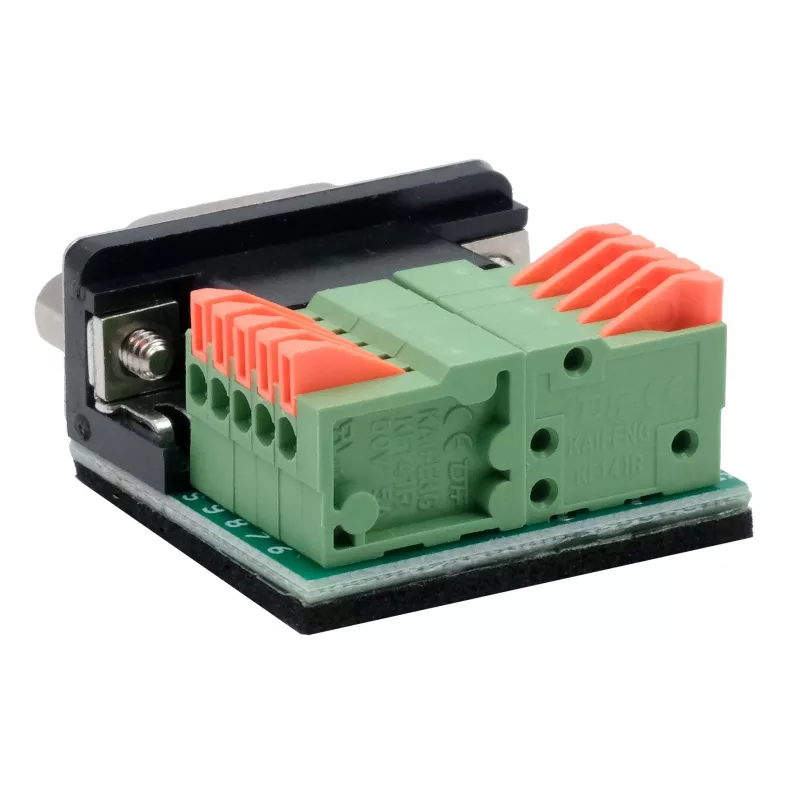

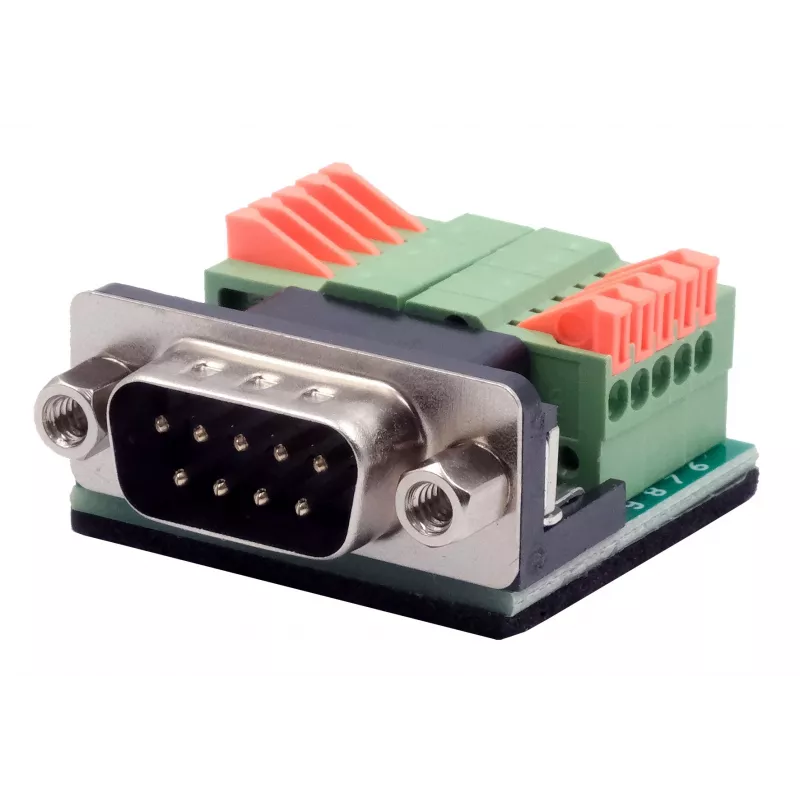

Cabo adaptador série EXSYS EX-49000 D-SUB 9 pinos macho para bloco de terminais de parafuso de 10 pinos, 30 cm

Connecting serial devices with non-standard connectors often requires custom wiring and soldering. The EXSYS EX-49000 adapter cable eliminates this hassle by providing a D-SUB 9-pin male connector on one end and a 10-pin screw terminal block on the other, allowing quick and secure connections without tools.

Who is it for

This adapter is ideal for industrial users, system integrators, and technicians who need to connect EXSYS serial interface cards to custom serial devices, sensors, or equipment with screw terminal inputs.

Main features

• D-SUB 9-pin male connector with screw-in mounting for secure attachment
• 10-pin screw terminal block for easy, solder-free wiring
• Supports RS-232, RS-422, and RS-485 serial communication
• Compact 30 cm cable length for flexible installation
• Durable PVC jacket and copper conductors

Specifications

• Connector A: D-SUB 9-pin male
• Connector B: 10-pin screw terminal block
• Cable length: 30 cm
• D-SUB shell colour: Silver
• Terminal block colour: Green
• Number of conductors: 10
• Conductor material: Copper
• Jacket material: PVC
• Intended application: Serial communication (RS-232/RS-422/RS-485)
• Compatibility: EXSYS serial interface cards (e.g., EX-4109x series)

Tips

Ensure the D-SUB connector is securely screwed into the mating port to prevent accidental disconnection in industrial environments. When wiring the screw terminals, use a small flat-head screwdriver and tighten firmly to avoid intermittent connections.
