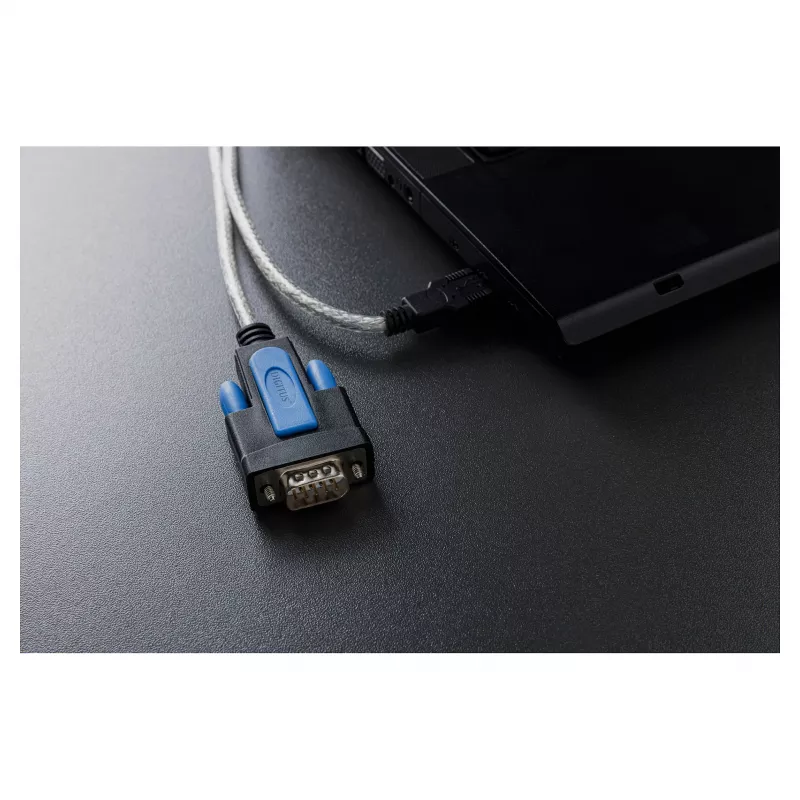

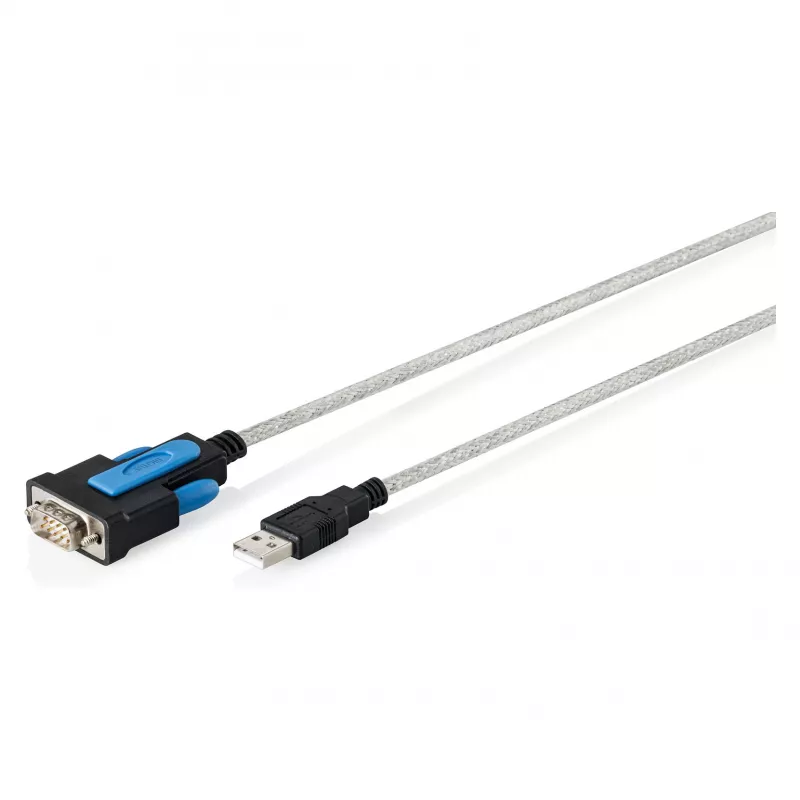

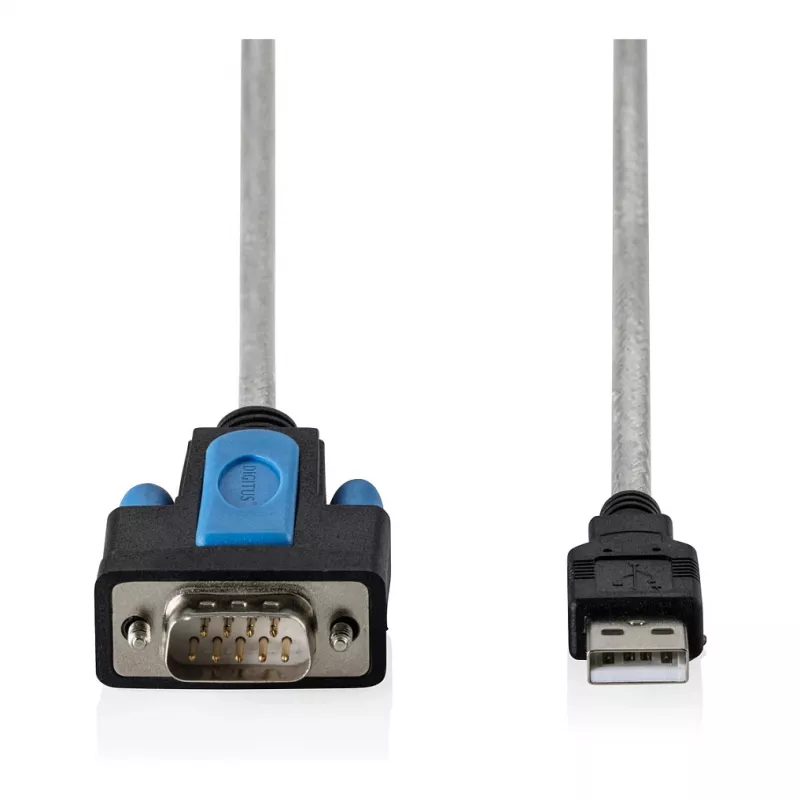

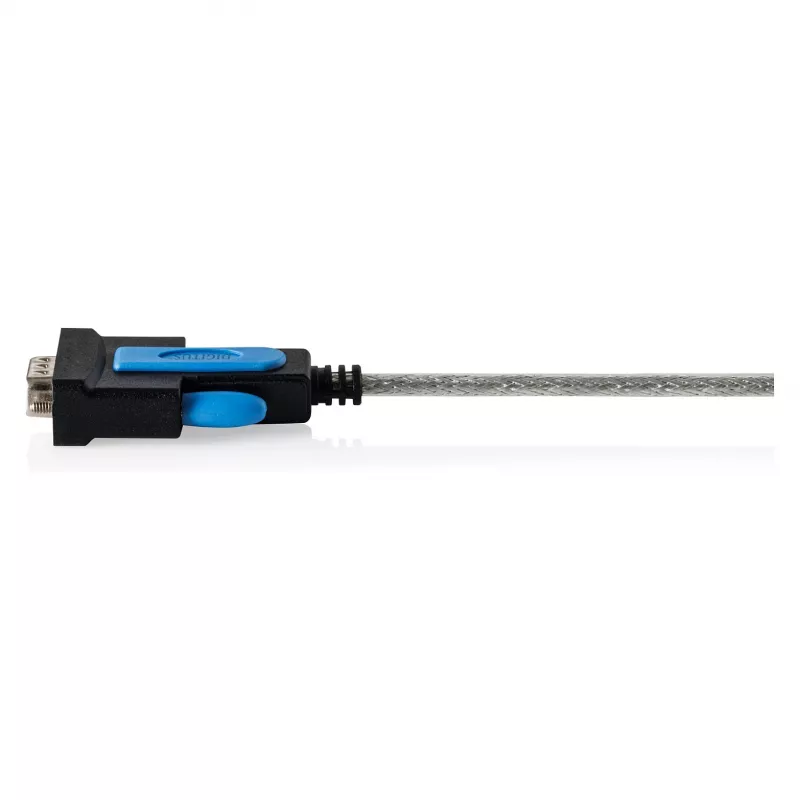

Cabo adaptador USB 2.0 para RS232 DIGITUS DA-70170, chipset FTDI, 1,8 m, USB Type-A para DB9

DIGITUS USB 2.0 to RS232 adapter cable DA-70170 is a combined cable-and-adapter solution that connects USB Type-A ports to RS232 DB9 devices. The 1.8 m transparent cable integrates an FTDI (FT232RNL) chipset that converts USB signals to serial RS232 levels and provides broad driver support and reliable full-duplex serial communication. The cable supplies real RS232 output voltage options and includes gold-plated contacts and a secure screw fastening for robust connections to legacy equipment and industrial peripherals.

Advantages

The integrated FTDI chipset ensures stable signal conversion and automatic driver recognition on many operating systems, which reduces installation effort. Gold-plated contacts improve conductivity and corrosion resistance while full-duplex operation supports simultaneous send and receive. The single-cable design eliminates the need for separate adapters and the 1.8 m length offers flexible placement of connected devices.

Suitable for

• Connecting legacy RS232 modems and serial printers to modern PCs and laptops
• Industrial controllers and PLCs requiring a DB9 serial interface
• Point-of-sale (POS) terminals, measuring instruments and lab equipment with RS232 ports
• Configuration and maintenance of routers, switches and other network devices with serial consoles
• Embedded systems development and debugging that require serial communication

Key specifications

• Interface: USB 2.0 (USB Type-A male) to RS232 (DB9 male)
• Chipset: FTDI FT232RNL
• Cable length: 1.8 m (transparent)
• Data rates: 75 to 128,000 bps
• Signal levels: RS232 output (5V / 3.3V / 2.8V / 1.8V) and TTL input compatibility
• Communication mode: full-duplex
• Connector plating: gold-plated contacts
• Mounting: screw fastening for secure DB9 connection
• Operating system compatibility: Windows, macOS, Linux, ChromeOS (automatic driver support for modern versions)

How to use

Plug the USB Type-A end into a free USB 2.0 (or USB 3.0) port on the host computer and connect the DB9 plug to the serial device. Allow the operating system to install drivers automatically or install the FTDI drivers if required for your OS version. Configure the serial port parameters (baud rate, parity, data bits, stop bits) in the host application or terminal software to match the connected device. Use the screw fastening to secure the DB9 connector to prevent accidental disconnection.

Recommendations

For reliable operation, match the cable data rate and serial parameters to the peripheral device settings, ensure firm screw connections on the DB9 plug, and keep the cable routed away from high-voltage or noisy power lines. When using on battery-powered systems, verify power management and remote wake-up settings if required by the connected device.
