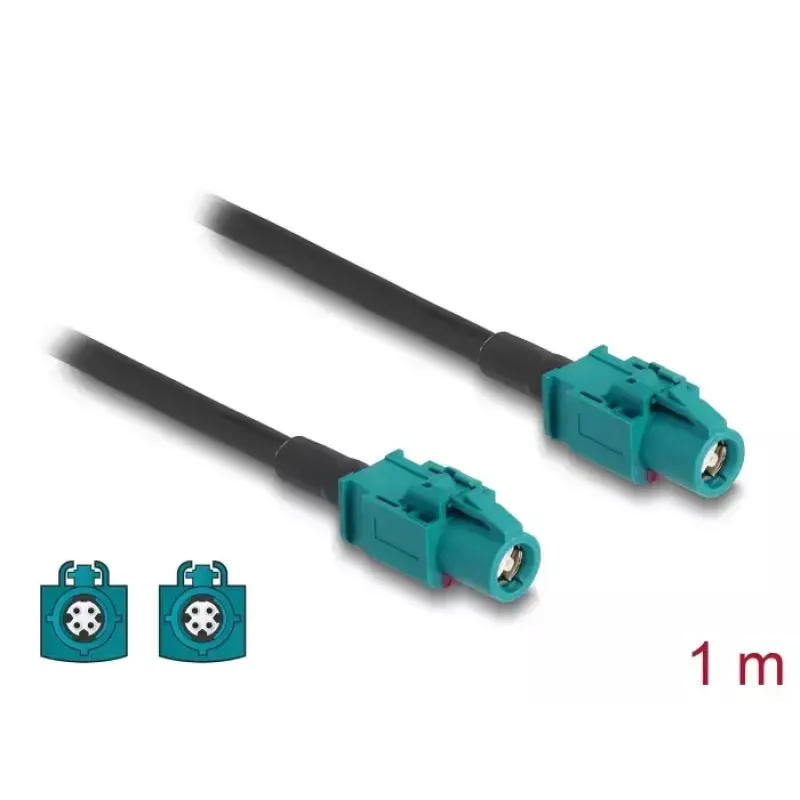

Cabo coaxial DELOCK 90680 — 1 m, HSD Z para HSD Z, preto/azul

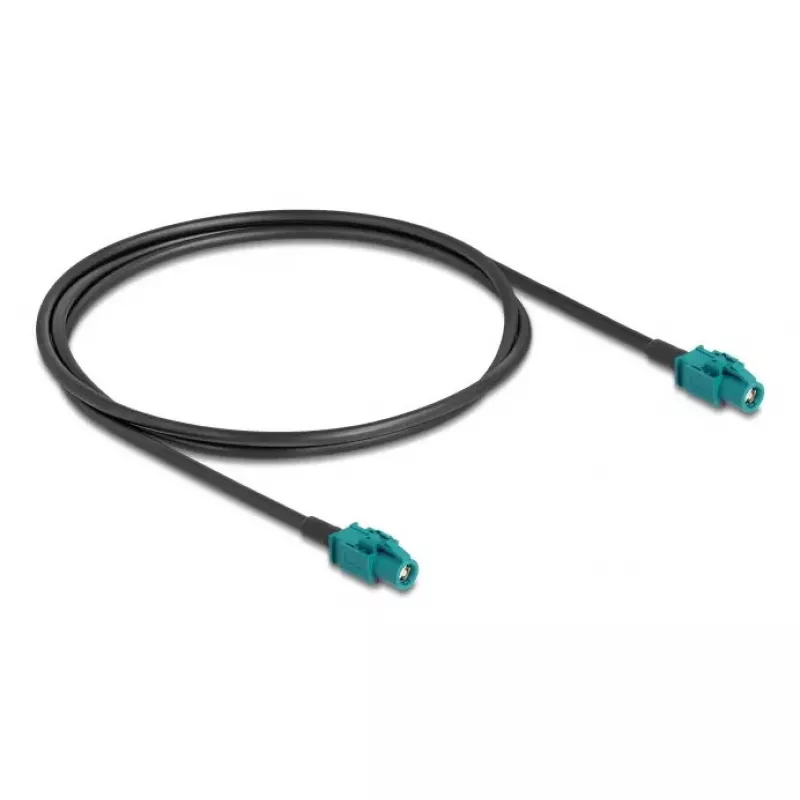

DELOCK 90680 is a 1 m coaxial cable with HSD Z connectors on both ends, designed for high-speed data and signal transmission in automotive and multimedia systems. The cable is supplied as a single unit in a polybag and is intended for short, flexible interconnects where HSD Z-compatible devices need reliable shielding and impedance-controlled connection. The black and blue color marking helps identify the cable during installation and maintenance.

Advantages

This coaxial cable offers impedance-matched 100 Ω construction and HSD Z female straight connectors on both ends to ensure consistent signal integrity for high-speed serial links. Its 1 m length provides a compact, low-profile connection suitable for tight spaces in vehicle interiors or equipment racks. The cable's flexible design simplifies routing while maintaining shielding to reduce electromagnetic interference.

Suitable for

Key specifications

How to use

Connect each HSD Z female straight end to the corresponding HSD Z male interface on the devices to be linked, ensuring correct seating and avoiding excessive bending near the connectors. Route the cable along existing harness paths or cable guides to minimize mechanical stress and exposure to heat sources. Verify the connection by checking device communication or signal continuity before reassembling panels or fastening the cable permanently.

Recommendations

For best performance, avoid sharp bends and excessive twisting; maintain the specified bend radius where possible. Use the cable for short-distance runs as intended and keep it away from high-power wiring to reduce potential interference. Inspect connectors before installation to ensure they are clean and undamaged.
