DeLOCK HDMTD ficha dupla angular para PCB

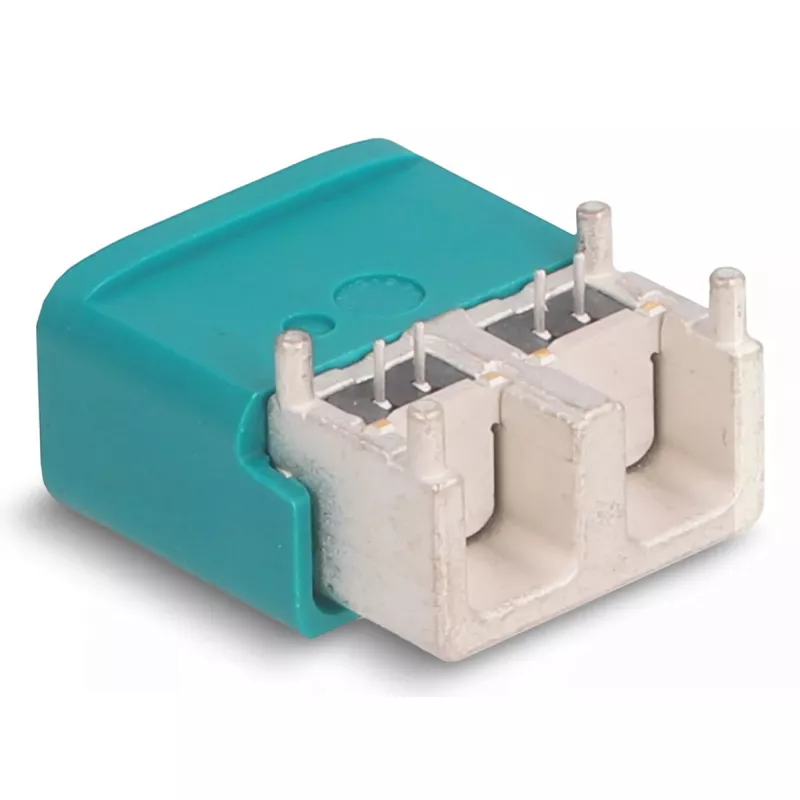

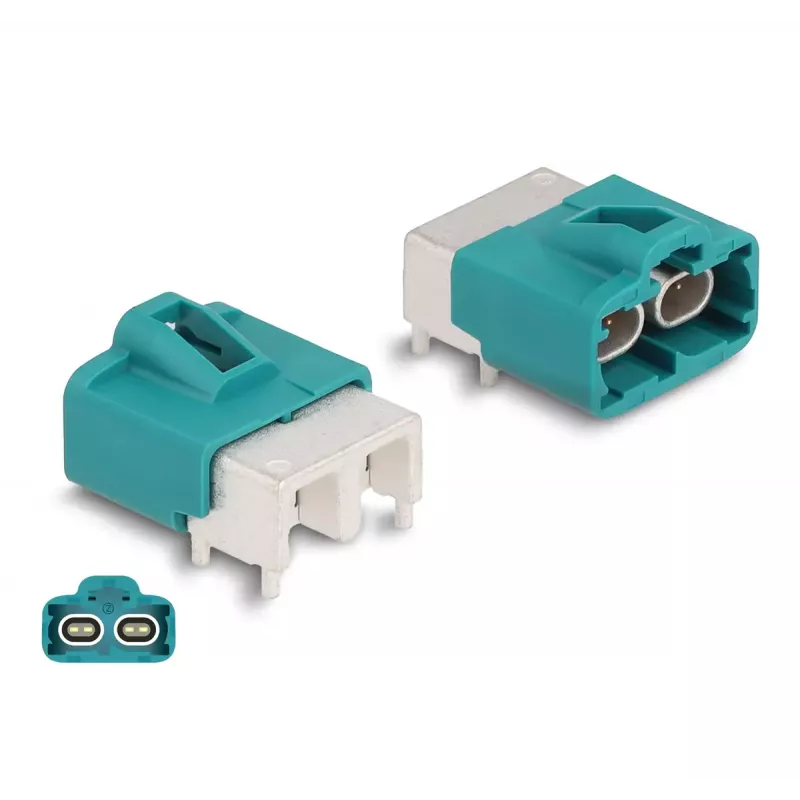

The DeLOCK HDMTD double plug angled for PCB is a compact connector designed for electronic assemblies, including use in vehicles. With overall dimensions of 14 mm width, 22 mm depth and 8 mm height, and a blue-and-silver finish, this angled PCB-mounted connector is intended for installations where space is limited and a low-profile, right-angled connection is required.

Advantages

The angled design allows easier routing and connection on crowded PCBs and in tight enclosures. Its small footprint (14 × 22 × 8 mm) reduces occupied board area, and the color-coded blue and silver appearance helps visual identification during assembly. Supplied as a single unit in a polybag, it is ready for immediate use in prototyping and production.

Suitable for

Key specifications

How to use

Place the angled connector on the PCB at the intended footprint and solder the pins according to the board layout and soldering guidelines. Ensure correct orientation so that the plug aligns with mating components or cables. After soldering, inspect solder joints for mechanical stability and electrical continuity before final assembly into the enclosure or vehicle subsystem.

Recommendations

When installing in vehicle environments, verify compatibility with the mating connector and ensure secure mechanical fixation to minimise vibration-related stress. Follow standard PCB soldering profiles and manufacturer recommendations to avoid thermal damage during assembly.
