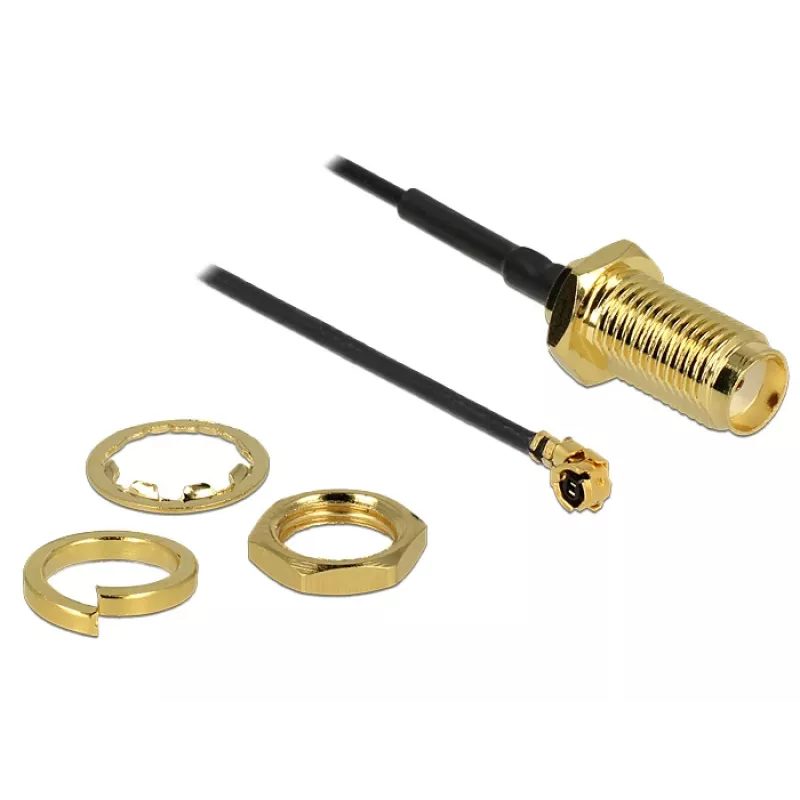

Cabo coaxial DeLOCK SMA - MHF/U.FL 50 mm

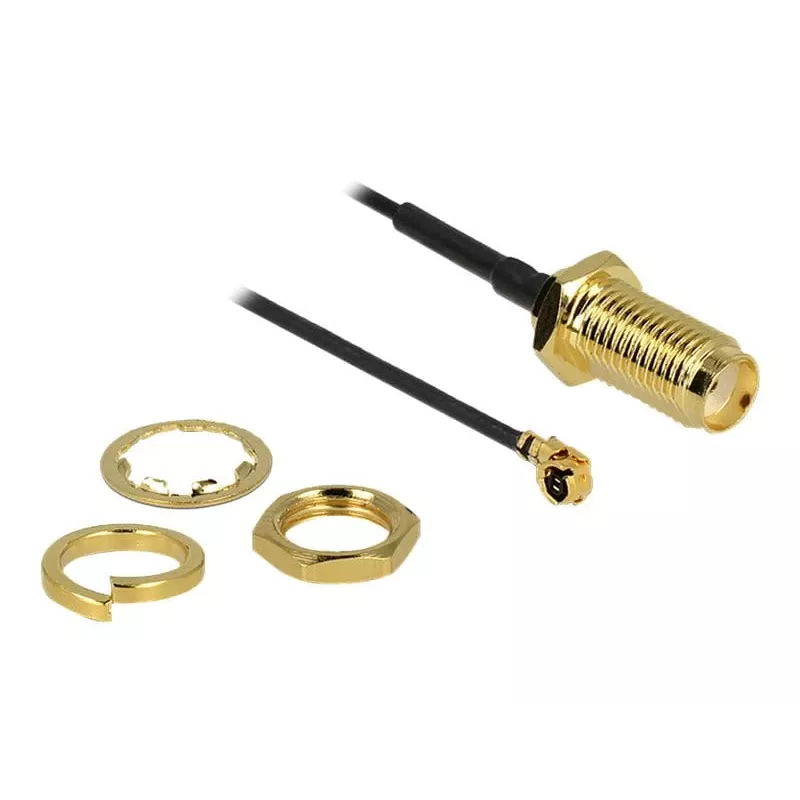

The DeLOCK Coaxial Cable SMA - MHF/U.FL (50 mm) is a short coax cable for connecting radio frequency components. It combines an RP-SMA jack bulkhead with an MHF (I-PEX) plug compatible with U.FL (Hirose) and is intended for reliable RF signal transmission in compact electronic assemblies.

Advantages

Compact 50 mm length allows use in tight spaces; 50 Ohm impedance matches common RF equipment; durable coax construction with 1.13 mm diameter and secure connector pairing (RP-SMA jack bulkhead to MHF/U.FL plug) ensures stable signal transfer for antenna and RF module connections.

Suitable for

Key specifications

How to use

Align the RP-SMA jack bulkhead with the corresponding SMA connector and secure it in place. Carefully insert the MHF/U.FL plug into the mating socket on the RF module until it clicks, taking care not to bend the cable sharply. Use the 50 mm cable to route the connection inside compact enclosures, ensuring minimal stress on the connectors.

Recommendations

Do not apply excessive force when mating or demating the MHF/U.FL plug; avoid repeated sharp bending near the connectors. Verify compatibility with 50 Ohm systems to maintain signal integrity.
