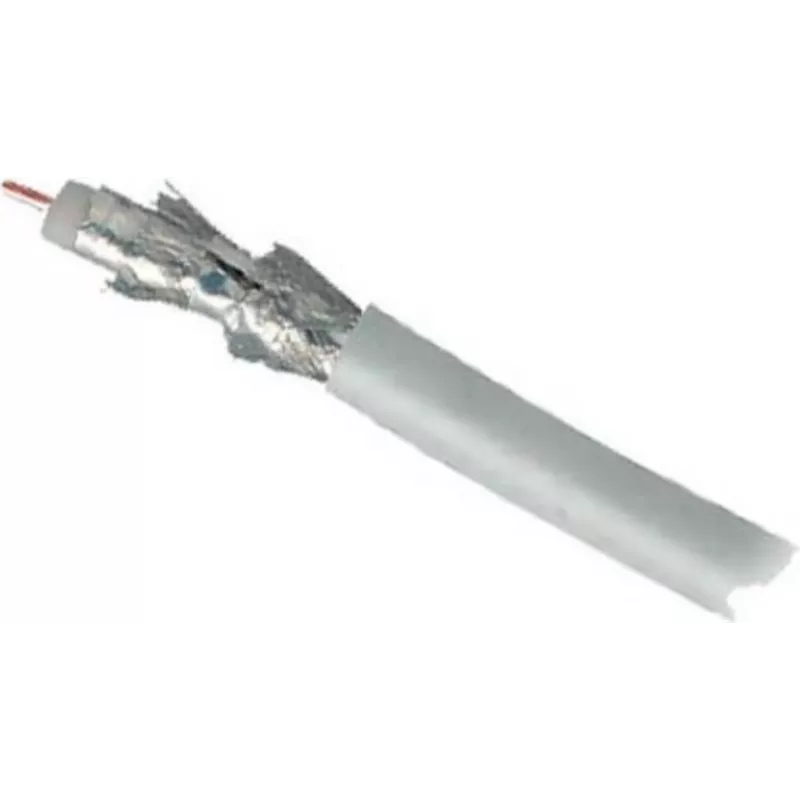

Cabo coaxial SAT SHIVERPEAKS S/CONN maximum connectivity 1,1/5,0, 4 blindagens, ALU, bobina, DIGITAL CU > 110 dB, 500 m (81800-500SP)

Satellite installers and antenna technicians rely on this 500-meter spool of SHIVERPEAKS S/CONN maximum connectivity coaxial cable for long, uninterrupted runs in residential and commercial distribution systems. The 1.1/5.0 dimension with solid copper inner conductor and quad aluminum shielding delivers clean digital signals for SAT, DVB-T/T2, DVB-C, and radio applications.

Key specifications

• Cable type: Coaxial cable, 75 Ohm impedance
• Inner conductor: Copper (CU), 1.1 mm diameter
• Dielectric diameter: 5.0 mm
• Shielding: 4 layers (quad-shielded) with aluminum (ALU)
• Screening effectiveness: > 110 dB
• Length: 500 m on spool
• Connectors: None (bulk cable)

Why choose it

The quad-shield construction with aluminum foil and braid suppresses electromagnetic interference, ensuring stable signal quality even in dense RF environments. The solid copper core provides excellent conductivity and low attenuation over long distances, making it suitable for trunk lines and distribution networks.

Ideal use cases

• Satellite TV (SAT) installations
• Digital terrestrial TV (DVB-T/T2) and cable TV (DVB-C) distribution
• Radio antenna systems
• Professional AV and broadcast infrastructure

Good to know

The cable is supplied on a convenient spool for easy handling and storage. It is part of the SHIVERPEAKS maximum connectivity series, model 81800, and is compatible with standard F-type, IEC, and other 75 Ohm coaxial connectors (not included).
