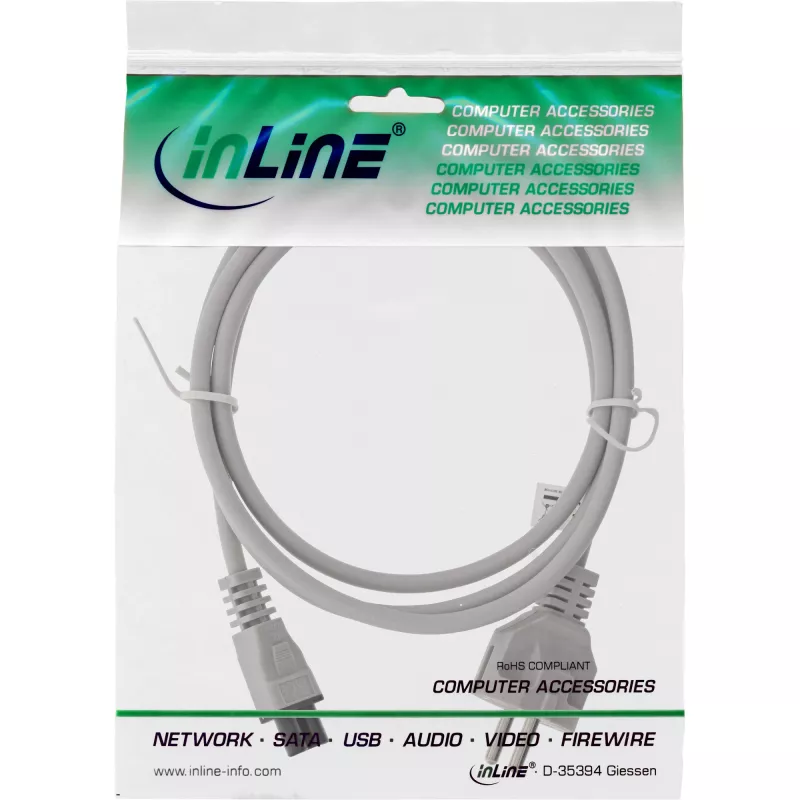

Cabo de alimentação AC para portátil InLine CEE7/7 para conector fêmea C5, cinzento, 0,5 m

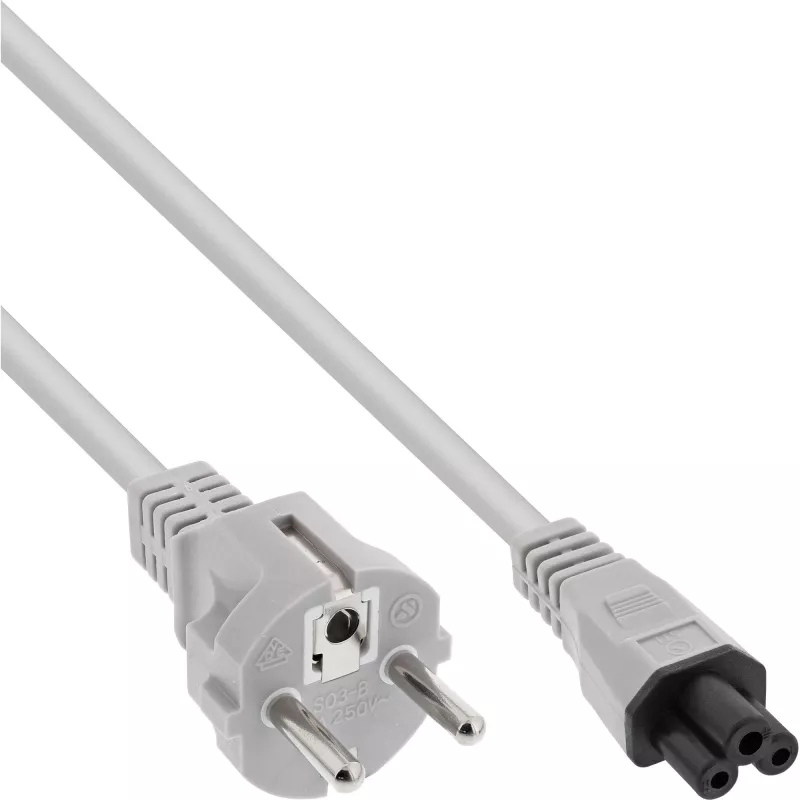

InLine AC power cord for notebook with CEE7/7 mains plug and IEC C5 coupler, 0.5 m grey cable. This short power lead is intended to connect compatible notebook external power supplies to European mains sockets. The cable assembly uses a three-core H05VV-F cable with moulded plugs and is designed for devices with a maximum current draw of 2.5 A at 250 V.

Advantages

The compact 0.5 m length reduces cable clutter around desks and travel bags while providing a reliable connection between a notebook power adapter and the mains. The CEE7/7 mains plug fits Schuko and many European outlets, and the IEC C5 coupler (three-pin cloverleaf) matches common notebook adapter inlets. The cable is VDE certified and constructed with 0.75 mm² conductors to meet the specified maximum load, and the moulded plug design improves mechanical stability at both ends.

Suitable for

• Short-range power connections between notebook power adapters and European mains sockets
• Office workstations and hot-desk setups where a short cable reduces tangling
• Travel and portable setups requiring a compact, lightweight lead
• Replacing a damaged or lost C5-type power lead for compatible notebook adapters

Key specifications

• Connector 1: CEE7/7 mains plug (Schuko/European compatible)
• Connector 2: IEC 60320 C5 coupler (three-pin cloverleaf)
• Cable length: 0.5 m
• Cable type: H05VV-F, three-core
• Conductor cross-section: 0.75 mm²
• Maximum load: 2.5 A / 250 V
• Product colour: Grey
• Weight: 0.094 kg

How to use

Ensure the notebook power adapter accepts an IEC C5 input. With the mains supply switched off or the socket empty, insert the CEE7/7 plug into a compatible European outlet and connect the IEC C5 coupler to the adapter inlet until it seats firmly. After connection, switch on the mains supply and the notebook power adapter as required. To disconnect, switch off the mains supply before removing the plugs and handle the moulded connectors by their bodies rather than pulling the cable.

Recommendations

Use this 0.5 m AC power cord only with compatible notebook adapters and equipment rated within the specified 2.5 A / 250 V limits. Avoid bending the cable sharply near the connectors, do not expose the lead to liquids or excessive heat, and replace the cable if insulation or connectors show visible damage. For installations requiring longer reach or higher current capacity, select a cable with appropriate length and rating.
